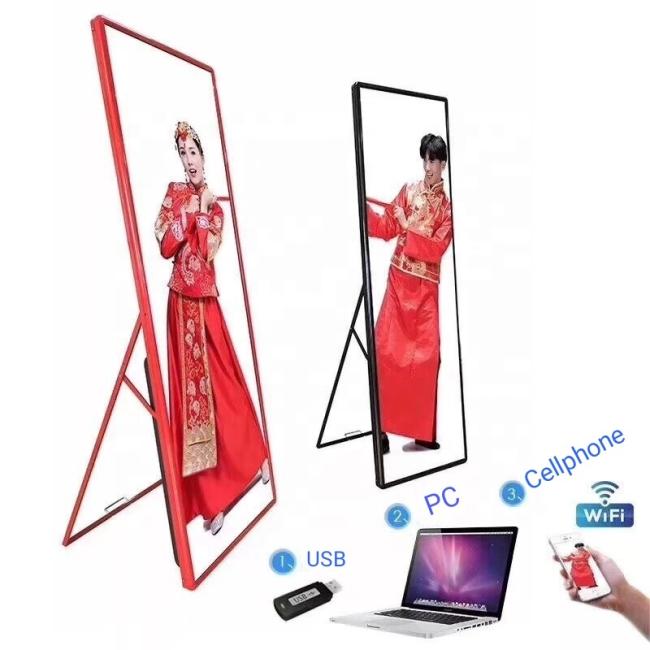

P2 P2.5 P3 LED Poster Displays Flooring Standing Move LED Screen Outdoor Advertising 14bit
p2 p2.5 p3 flooring standing move smart digital video advertising screen led poster display
Function and Technology Character Introduction:
1. Lightweight, space-saving and labour-saving.
2. Nice appearance and simple structures.
3. Quick locking methods, no tools installation.
4. With indicator lights and backside flexible door, easy to test and maintain.
5. High refresh rate, HD video performance.
Products Applications:
Widely used in shopping malls, catering industry, product launches, weddings, hotels, airports, luxury stores, chain stores, reception halls, mobile screens, real-time video, catering industry, reception halls, product launches, mobile screens, chain stores, etc.
SPECIFICATIONS Parameters:
| Product parameter | |
| led module | |
| Pixel pitch (mm) | P2.5 |
| Pixel density (point /㎡) | 160000 |
| Module size (mm) | |
| Module resolution (WxH) | 128X64 |
| Package form | SMD2020 |
| scanning method | 1/32S |
| Refresh rate (Hz) | ≥1920/3840(Optional) |
| White balance brightness (Nits) | ＞800 |
| Color temperature (K) | 3200-9300(Adjustable ) |
| Gray scale | ≥14bit |
| Frame change frequency | 60-120Hz |
| Viewing angle (horizontal/vertical) | 160°/160° |
| Protection level (front/back) | IP31 |
| Average/peak power consumption (W/㎡) | 850/350 |
| Face mask | NO |
| cabinet | |
| cabinet size (mm) | 640X1920 |
| Screen weight (Kg) | 15 |
| cabinet module composition (WxH) | 2X12 |
| Cabinet resolution (WxH) | 256X768 |
| Flatness (mm) | ≤0.2 |
| Maintenance method | Pre-maintenance |
| cabinet material | Die-cast aluminum |
| Application Environment | |
| Input voltage (V) | 110-240 |
| Operating temperature (℃) | -20~50 |
| Working humidity (RH) | 10%-95% |
| Service life (H) | ≥100000 |
| Model type (using video processor) | AV,S-Video,VGA,DVI,HDMI,SDI,DP |
| Control distance | Category 5 network cable :＜100m,Single mode fiber :＜10km |
| certified product |  |
Weiye poster series led strip display screen advantage:
1. Good prices and aftersales services. Available for p1.8 P2 P2.5 P3
2.Can be released instantly via WIFI, 3G/4G remote
3. Large-scale cluster control and management
4. Intelligent adjustment of screen brightness
5. Can send videos or pictures to interact with smart cloud screen through smart terminalAPP
