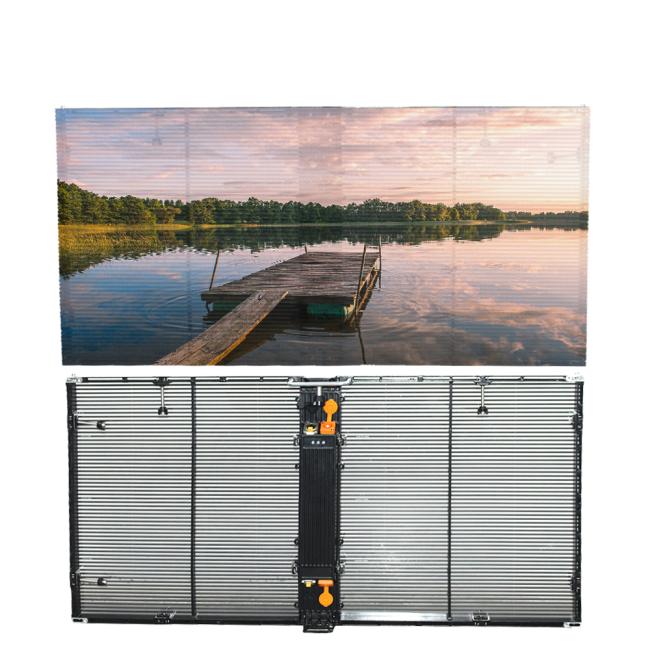

P3.91 Flexible LED Illuminated Glass Panels Curtain 1000x500mm
Outdoor p3.91 curtain window glass tv led panels mesh display transparent led screen
Function and Technology Character Introduction:
1. The cabinet is super lightweight,ultra-thin,ultra transparent. Outer frame is full aluminum extruded,Ultra-thin and lighteright,unit thickness is only 65mm,weight is 12kg/m2,hollow design,Ventilation transparent,the permeability is 35%,which has a strong resistance for wind pressure.
2. High brightness,Whole screen is easy to maintain. Led screen brightness can be up to 7500cd/m2,fast installation,and can be front maintained.
3. With high waterproof and dustproof cabinet design,Unit realizeds waterproof grade IP65,dustproof and storm protection.
4. Good heat dissipation: No need to use radiator like normal LED screen.
5. Cabinet design for high and low temperature,The unit realizes high temperature protection,low temperature,lightning protection and corrosion protection.
Products Applications:
Widely used in glass curtain walls, shop windows, shopping malls, terminal buildings, automobile exhibition halls, exhibition halls, business halls, 4S shops, office glass curtain walls, etc.
SPECIFICATIONS Parameters:
| item | P3.91-7.81 | P7.81 | P10.41 |
| Pixel Density(dot/sqm) | 32,256 | 16,384 | 9,216 |
| Cabinet size(mm) | 1000x500x80 | 1000x1000x83.7 | 1000x1000x80 |
| Cabinet resolution(dots/sqm) | 256x64 | 128x128 | 96x96 |
| Cabinet weight(kg/pc) | 4.95 | 13.5 | 9.6 |
| Cabinet material | Aluminum die-casting | Aluminum die-casting | Aluminum die-casting |
| Transparent ratio | 70% | 77% | 85% |
|
Power consumption (MAX/AVE)(watt) |
460/150 | 775/230 | 800/240 |
|
Brightness (cd/m2) |
1,000-5,500 | 1,000-5,500 | 1,000-5,500 |
| Refresh rate(Hz) | 3840 | 3840 | 3840 |
| IP Grade | IP30 | IP30 | IP30 |
Weiye poster series led strip display screen advantage:
1. Side-emitting LED transparent screen is a new type of transparent LED display, with 87% transparent display, simple application, 5000cd highlights, support corner cutting design and other features.
2. Ultra-thin& super light-weight,60mm thickness& 7kg/panel, greatly reduce the load bearing of support.
3. With power consumption of as low as 1/3 of regular LED display. Easy to install
4. It is safe and easy to install, lower the time and labor cost.Corner cutting design
