1000x500mm Transparent LED Screens Curtain Transparent LED Film Display 3.9mm 3500 Cd/M2
Large Building Glass Curtain Wall Advertisement HD LED Transparent Display Screen 3.9mm
Function and Technology Character Introduction:
1. P3.91-7.82 Full color high permeability LED transparent display, belonging to the new generation of LED display products.
It can not affect the installation position of the bright and beautiful at the same time,also to ensure the dynamic picture color richness and display details.
2. Great transparency from 60%-95%, it is installed close to the glass of shop window or large glass building wall. Looks like a totally transparent led video wall from far aways when more than 10m.
3. This transparent led display without any steel frame cabinet, you can directly hang it onto the wall with hanging beam. And all the cables are hidden to ensure the gorgeous of the whole module
4. Glass led video wall led display is stable and safe when light on. Only take out one led bar loosing the bracket, you can easily change the defective leds within 30s.
5. Real live video images in glass
Products Applications:

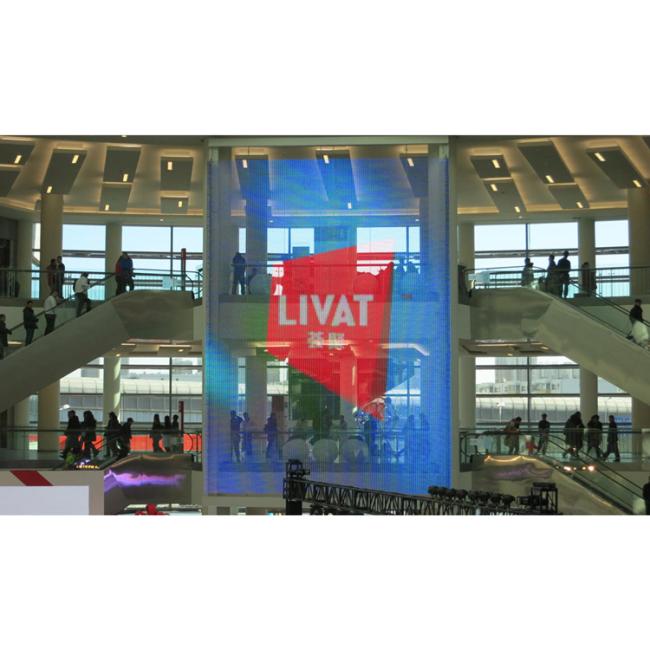

Widely used in glass curtain walls, shop windows, shopping malls, terminal buildings, automobile exhibition halls, exhibition halls, business halls, 4S shops, office glass curtain walls, etc.
SPECIFICATIONS Parameters:
| item | P3.91-7.81 | P7.81 | P10.41 |
| Pixel Density(dot/sqm) | 32,256 | 16,384 | 9,216 |
| Cabinet size(mm) | 1000x500x80 | 1000x1000x83.7 | 1000x1000x80 |
| Cabinet resolution(dots/sqm) | 256x64 | 128x128 | 96x96 |
| Cabinet weight(kg/pc) | 4.95 | 13.5 | 9.6 |
| Cabinet material | Aluminum die-casting | Aluminum die-casting | Aluminum die-casting |
| Transparent ratio | 70% | 77% | 85% |
|
Power consumption (MAX/AVE)(watt) |
460/150 | 775/230 | 800/240 |
|
Brightness (cd/m2) |
1,000-5,500 | 1,000-5,500 | 1,000-5,500 |
| Refresh rate(Hz) | 3840 | 3840 | 3840 |
| IP Grade | IP30 | IP30 | IP30 |
Weiye poster series led strip display screen advantage:
1. Unique display effect - Because the display background is transparent,the advertisement picture can be suspended on the glass curtain wall, shows good advertisement effect and artistic effect.
2. slim and light : 22mm thickness, weight 7.5kg /sqm, has little loading demand for the glass curtain wall and save freight and labor cost.
3. Super slim and less weight without any steel structure frame. You can install it like a window-shades.
4. It is safe and easy to install, lower the time and labor cost.Corner cutting design
