320*160mm P8 Outdoor LED Screen Full Color 960*960mm Iron Cabinet LED Display
P8 320*160mm outdoor full color 960*960mm iron cabinet LED display
Function and Technology Character Introduction:
1. Wide viewing angle, horizontal and vertical viewing angle is very wide, suitable for wide field of view.
2. It has long-lasting stability, high brightness, low power consumption, high waterproof level, wide viewing angle and super protection level.
3. There are two positioning pins on the top of the cabinet and a positioning slot on the side of the cabinet for quick positioning during installation, making it faster and more convenient.
4. The fixed aluminum cabinet has good heat dissipation, simple and practical, and easy to install
5. Die-casting aluminum alloy ensures solid strength, CNC finishing flatness is less than 0.1mm, seamless splicing can be realized, the originality of industrial design, and the screen look and feel more comfortable.
6. Light, thin, fast, high-definition display. High pixel density, solid structure, exquisite workmanship
7. Using point-by-point correction technology to make the picture clearer and more vivid, without flicker and blind spots.
8. The screen adopts waterproof and dustproof design, so it can work well in rain and sunlight.
Products Applications:

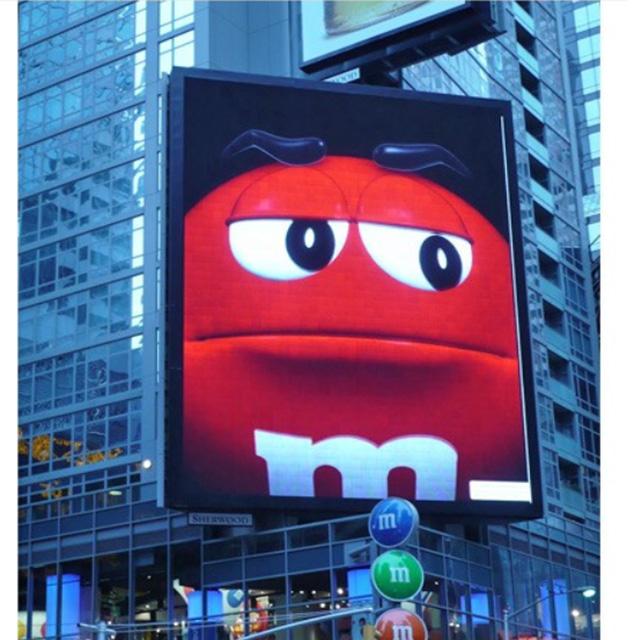

Used in large outdoor venues such as city squares, high-end hotel exterior walls, outdoor advertising displays, film and television centers, and sports centers.
SPECIFICATIONS Parameters:
| pixel | P8 |
| Pixel pitch | 8mm |
| Pixel Configuration | 1R1G1B |
| Module Resolution | 40x20 |
| Module Pixles | 800 |
| Module Size | 320x160 |
| Cabinet Size(WxHxD) | 960x960 |
| Cabinet Resolution(dot) | 120x60 |
| Module Quanity (pcs) | 18pcs |
| Cabinet Pixels | 7200 |
| Pixel Density | 15625cd/m² |
| Cabinet Materials | magnesium alloy |
| Cabinet Weight | 11.8KG |
| Screen Brightness | ≥6000 |
| Driving Method | 1/5 scan |
| Gray Level | ≥14bit |
| Refresh Frequency | ≥1921/3840 |
| Uninterrupted Working Hours | ≥72 hours |
| Screen Lifespan | ≥100,000 hours |
| MTBF | ≥5,000 hours |
| Continuous Blind Spot Rate | None |
| Screen Plainness | <±1mm |
| Power Supply Mode | AC220±10% 50Hz/AC110±10% 60Hz |
| Operating temperature | -20℃—+60℃ |
| Humidity | 10%—90%RH |
FAQ
1) F:Do you offer any other components of led display screen?
Q:Yes, we offer all the components of led display, such as modules, control cards, video processors, and power supplies, etc... one stop service.
2) F:How to choose the right size or pixel LED screen?
Q: You can tell us whether you are going to buy our products apply for indoor or outdoor situation, specific place and viewing distance, or other requirements. We will recommend some solutions to you.
3) Q: What’s your warranty of your products ?
A: usually 2 years, counted from the date goods reaching clients.
4)F:Do you provide ODM/OEM services?
Q: Yes, we provide both. In addition, we have extensive experience and can provide you with professional solutions.
