Front Service Energy Saving LED Display P4 P5 P6 P8 P10 Digital Billboard For Advertising
outdoor LED screen P4 p5 p6 p8 p10 front service energy saving LED Display digital billboard for advertising
Function and Technology Character Introduction:
1. Front-maintenance, from the front side service.
2. Easy maintenance, easy to disassemble the modules with a hexagonal screwdriver.
3. No screws, easier to disassemble the modules and mount the modules on the cabinet.
4. 6.67mm pixel pitch is suitable for small banner screen.
5. New plastic cover with new mold, smaller module gaps and better screen flatness.
6. High-definition and high-refresh, high-quality visual experience, no shaky words, no smear in the image, and no water ripples when taking pictures.
7. High-performance thermal silica gel makes the display waterproof, moisture-proof, dust-proof and fast heat dissipation
8. High-performance thermal silica gel makes the display waterproof, moisture-proof, dust-proof and fast heat dissipation
Products Applications:

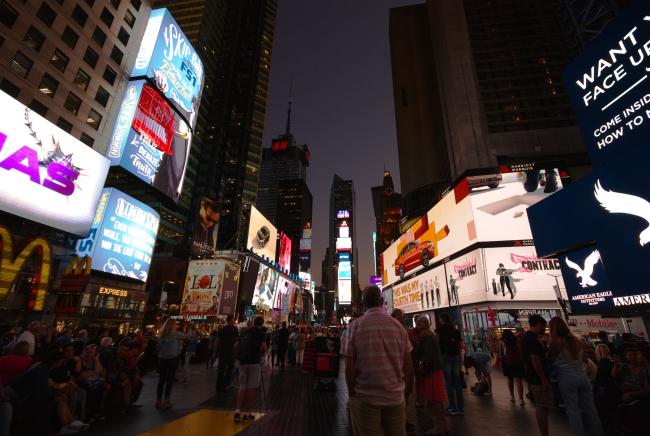

Used in large outdoor venues such as city squares, high-end hotel exterior walls, outdoor advertising displays, film and television centers, and sports centers.
SPECIFICATIONS Parameters:
| model | P8-3535-5S-320x160 |
| LED lamp bead model | NationstarNH-Z3535RGBA-SG |
| Pixel pitch (mm) | 8 |
| Pixel density (Dots/㎡) | 15625 |
| Pixel color configuration | 1R1G1B |
| Pixel resolution | 40x20 |
| scanning method | 1/5 scan |
| Brightness (cd/㎡) | ≥6000 |
| Gray level (bit) | 14bit |
| Refresh rate (Hz) | ≥1920 |
| Mask structure | With face mask |
| Horizontal viewing angle (Deg) | 140(±10) |
| Vertical viewing angle (Deg) | 120(±10) |
| Driver chip | ICND2049AP |
| Row decoding method | ICND2019AP |
| Module size (L*W) | 320x160mm |
| Module weight (g) | ≤495 |
| Flatness of module mask | ≤0.2mm |
| Module maximum current (Ampere) | R:≤2.7A GB:≤4.5A |
| Input voltage (DC) | R:2.8V/GB:3.8V |
| Maximum power consumption of the module (W) | ≤25W |
| Maximum power consumption (W/m²) | ≤600 |
| Average power consumption (w/㎡) | ≤150-180W |
| Module installation structure | Install from the back |
| Mean time between failures | ≥10000 hours |
| Service life | ≥100000 hours |
| Use environment | outdoor |
| Working temperature range (℃) | -10℃-60℃ |
| Working humidity range (RH) | 30%-85% |
| Storage temperature range (℃) | 0℃-40℃ |
| Storage humidity range (RH) | 35%-60% |
| waterproof level | IP65 |
FAQ
1) Q: How is the after sales service?
A: We have a professional team which is in all around the world, also a service hot-line dealing with your complains and feedback. We also offer 24-hour online service to help you solving problems
2) Q: What is your current lead time?
A: usually no more than 20 days; and some products are in stock for quick delivery
3) Q: What’s your warranty of your products ?
A: usually 2 years, counted from the date goods reaching clients.
4) Q: Why so many clients choose WeiyeLED?
A: Our led display has applied many countries in the world. Many countries have our projects.
