China Pediatric Adult ICU Ventilator Machine 40%-100% FiO2 Hospital Breathing Machine for sale

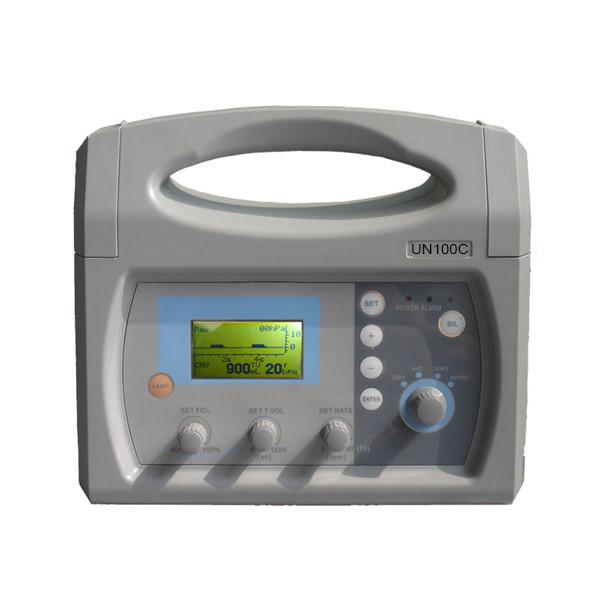

Pediatric Adult ICU Ventilator Machine 40%-100% FiO2 Hospital Breathing Machine

Name: Pediatric Adult ICU Ventilator Machine 40%-100% FiO2 Hospital Breathing Machine
Brand: Wuhan Union Medical Technology Co., Ltd.

Price Negotiable

Price: Negotiable

MOQ: 1 unit

Delivery Time: 3-5 days

Brand: Union Medical

Product Description

Child Adult Medical Critical-care Emergency First-Aid ICU Ventilator Machine

Description:

This ventilator is the pneumatically driven electrically controlled ventilation system, adopts a full-computerized and intelligent control, all parameters can be adjusted continuously. The nixie tube can display real-time data of various parameters at the same time, and has various alarm protection functions. It is an ideal medical equipment of patients with dyspnea for respiratory recovery and first aid. It is used in ICU Rooms, Emergency Departments and Operating Rooms. The ventilator is simple and convenient to operate, safe and reliable in performance and stable in operation. It is an ideal assistant for medical personnel.

With multiple functions, and adapt for a variety of occasions.
With synchronized function and high trigger level.
Self-set alarm parameters and various alarm protections.
With Inverse Ratio Ventilation, Sigh and PEEP functions.
The main components are imported, accuracy and reliable.

Specifications:

Modes	CMV, CMV+SIGH, A/C, SIMV, MANUAL
Tidal Volume	50~1200ml
Respiratory Rate	5~60bpm
FiO2	40%~100%
Trigger	-5~10hPa
Classification	Class I, Type B
Inspiratory Time	0.5~3S
Max Minute Volume	0≥22L/min
PEEP	0, 5 ~20hPa
Over Pressure Relief	≤ 72hPa

Monitors:

Tidal Volume
Circuit Pressure
Alarm Set
MIN. Volume
Breath Rate
Trigger Level

Alarms:

High Airway Pressure Alarm
Low Airway Pressure Alarm
High MIN. Volume Alarm
Low MIN. Volume Alarm
High Rate Alarm
Apnea Alarm
Power Failure Alarm

Environmental Requirements

Relative humidity	15%~95%
Ambient temperature	-18~ 50°C
Atmospheric pressure	70~110kPa
Gas source	0.28~0.6Mpa 60L/min
Power	AC220V, 50Hz

Classification

ClassⅠ, Type B — by protection against electric shock.
IPX4 — by protection against harmful ingress of water, particulate matter.
It is suitable for the patient who weighs more than 15KG.

Configuration of UN100 Ventilator:

Standard configuration:

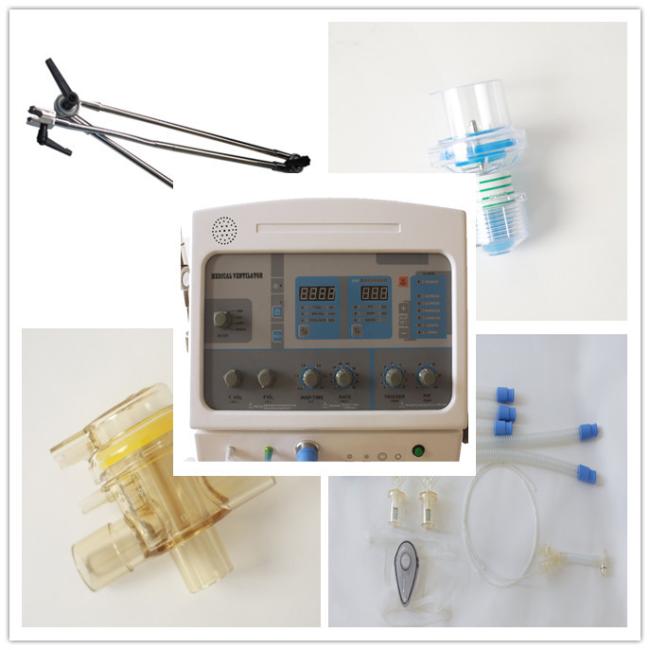

Ventilator, pressure-pressure-reducing valve, high-pressure oxygen tube, lung simulator, breathing circuit, mask, head band, water trap, humidifier, support arms, PEEP valve.

Main parts:

Applications:

Series products:

Other Union Medical Other Product Line:

Packing:

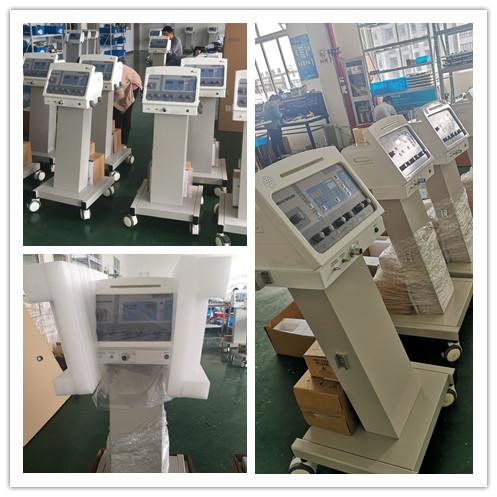

Factory:

Company Profile:

We, Wuhan Union Medical Technology CO., Ltd, is a R&D company in patient monitoring solutions, which started in 2009 with leading engineers in China, and established in 2013. Union Medical is committed to the techniques and products of monitoring, diagnosing ,supporting and treating the biological information; serving the society; improving human health.

Union Medical focused on the development of patient monitoring solutions with engineers who have experience in this area for more than 15 years. Our main solutions are about the non-invasive and invasive solutions for patients vital sign parameters, technologies as: algorithm for ECG diagnosis, pulse oxygen monitoring, respiration gas monitor, respiratory monitoring, electronic sphygmomanometer etc. Vital sign parameter modules: ECG module, SPO2 Module, NIBP Module, IBP Module, Six-parameter Module, Multigas Module etc.

We also produce our own final monitoring equipments, like ECG machines, patient monitors, vital sign monitors, pulse oximeters, ETCO2 monitors/Capnometer/Capnograph, Anesthesia Multigas monitors etc.
