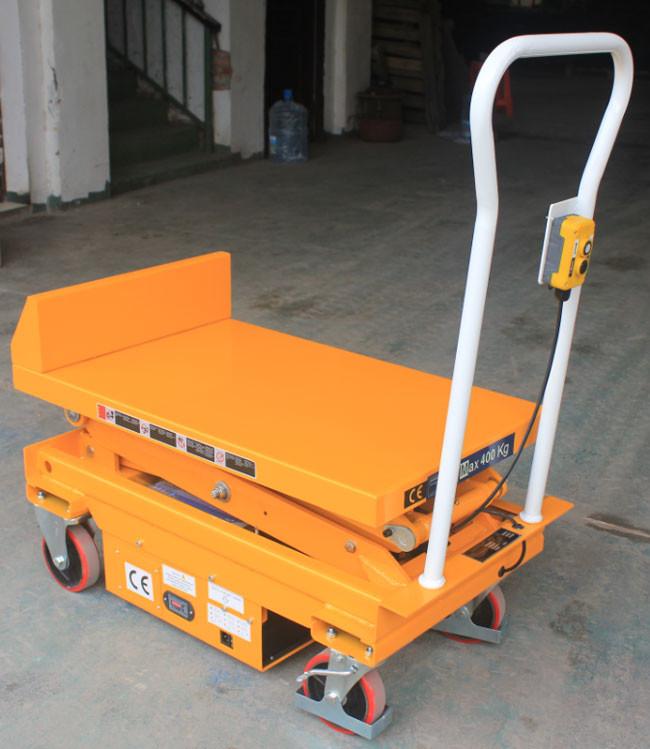

881lbs 400kg Mobile Lift And Tilt Table Trolley 830x520mm
Mobile Lift Tables & Tilt Transport Table Trolley Tilting Lift Tables
Description:

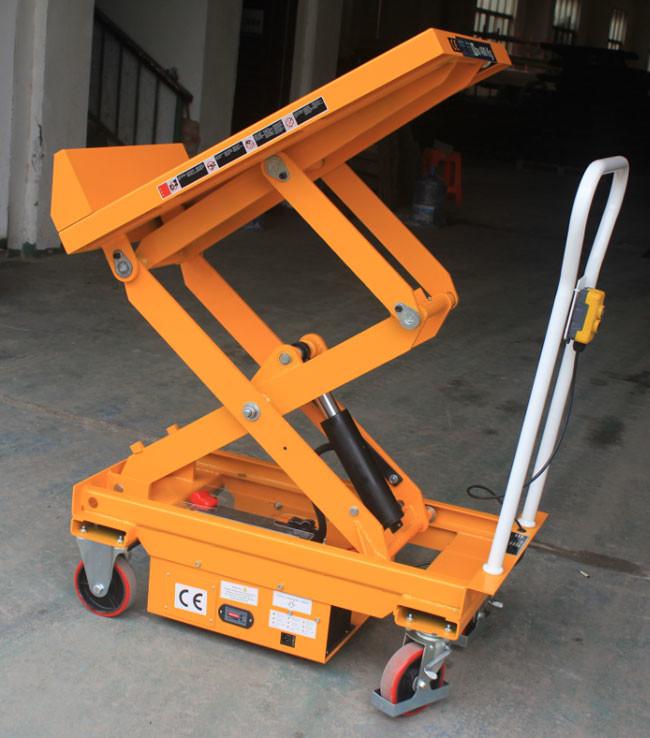

The tilting lift tables are commonly found in parts handling applications. The parts container is lifted to an ergonomic height and then tilted toward the operator,which reduces the bending and stretching motions of operator. We offer lift and tilt tables where the lift and tilt functions are independent of one another as well as compact designs of both functions.
Specification:
| Model | Capacity(kg) | TableSizeL*W(mm) | TableHeight (Max./Min.) (mm) |
HandleHeight H3(mm) |
Overall Size B*C(mm) |
Foot Pedal toMax.Height |
Time to Max.Height(s) |
Net Weight (kg) |
|
| H1 | H2 | ||||||||
| BL15 | 150 | 830*500 | 415/880 | 415/1400 | 1100 | 500*1010 | 20 | -- | 92 |
| BL40 | 400 | 830*520 | 435/900 | 435/1560 | 1130 | 520*1355 | 55 | -- | 123 |
| BL80 | 800 | 830*520 | 440/1000 | 438/1570 | 1130 | 520*1355 | 80 | -- | 145 |
| TS40 | 400 | 830*520 | 500/990 | 500/1620 | 1180 | 520*1185 | -- | 20 | 170 |
| TS80 | 800 | 830*520 | 500/1000 | 500/1620 | 1180 | 520*1260 | -- | 20 | 185 |
FAQ:
Q: What about the quality of the products?
A: Our products are CE approved, and we have five inspection steps before shipment:
1. Inspect the raw material in accordance with ISO9001;
2. Strict inspection in the whole production process;
3. Load limit test when assembling finished;
4. 100% strict inspection of products before shipment;
5. If needed, inspection by buyer.
Q: How long is the quality guarantee?
A: All of our products carry one-year warranty.
Q: What's the leadtime?
A: Normally 30 days.
If you order more than 5 itmes mixed in one container, it will be 45 days.
If you order one item in one container, it will be 20 days.
