500kg 1102lbs Roller Lift Table Roller Ball Lift Table Mobile Scissor Lift Electric Trucks

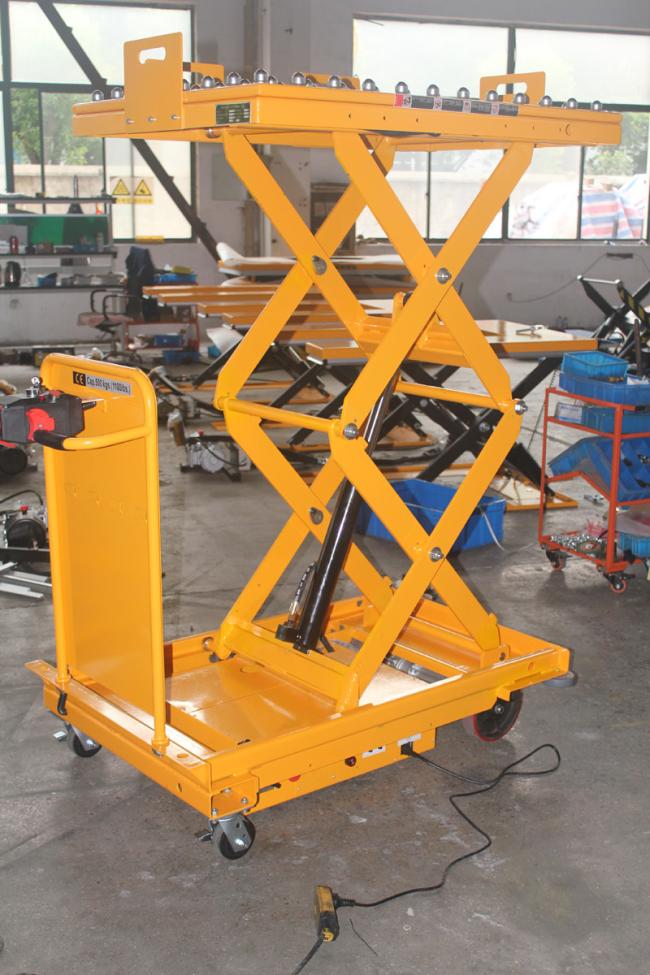

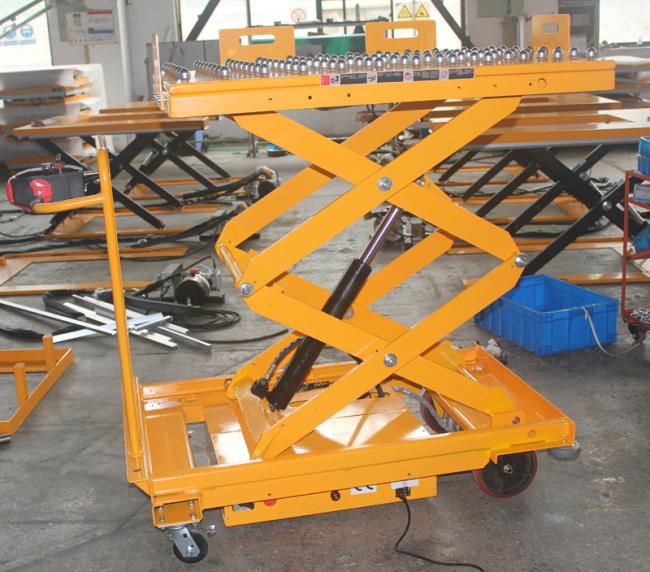

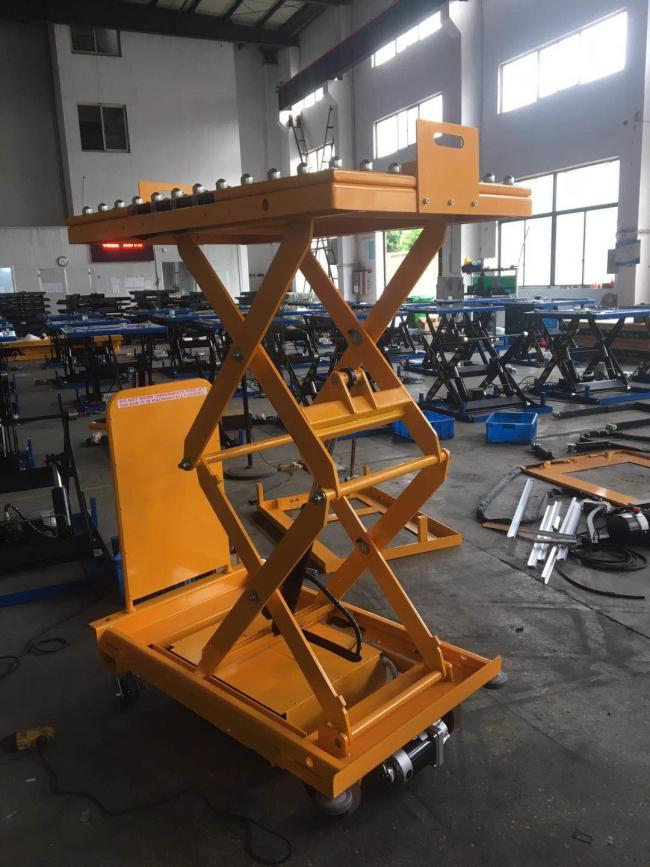

Full Electric Mobile Lift Tables with Ball Platform 500kg
Description:
-
Meet EN1570 norm and ANSI/ASME safety standards.
-
Curtis controller & HALL accelerator.
-
Self-propelled and electric lifting.
-
With optional steering handle
| Model | ESF50 | ESF50D | ESM50 | ESM50D | ESM80 | ESM80D | |
| Capacity | Kg) | 500 | 500 | 500 | 500 | 900 | 900 |
| Platform Size (L*W) | (mm) | 1020×610 | 1020×610 | 1020×610 | 1020×610 | 1020×610 | 1020×610 |
| Min./Max. Height | (mm) | 460/1000 | 460/1720 | 460/1000 | 470/1720 | 460/1075 | 520/1850 |
| Handle Height | (mm) | 1030 | 1030 | 1170 | 1170 | 1170 | 1170 |
| Overall Size (L*W) | (mm) | 1200×670 | 1200×670 | 1400×670 | 1400×670 | 1400×670 | 1400×670 |
| Lift Time | (s) | 15/15 | 15/15 | 15/15 | 15/15 | 15/15 | 15/15 |
| Net Weight | (kg) | 214 | 220 | 220 | 235 | 240 | 250 |
FAQ:
Q: What about the quality of the products?
A: Our products are CE approved, and we have five inspection steps before shipment:
1. Inspect the raw material in accordance with ISO9001;
2. Strict inspection in the whole production process;
3. Load limit test when assembling finished;
4. 100% strict inspection of products before shipment;
5. If needed, inspection by buyer.
Q: How long is the quality guarantee?
A: All of our products carry one-year warranty.
Q: What's the leadtime?
A: Normally 30 days.
If you order more than 5 itmes mixed in one container, it will be 45 days.
If you order one item in one container, it will be 20 days.
