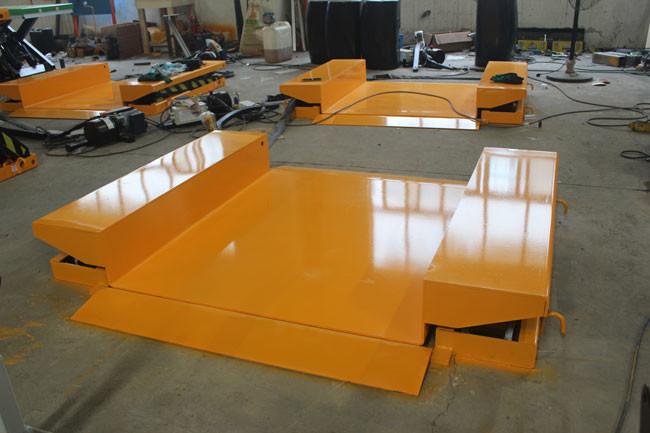

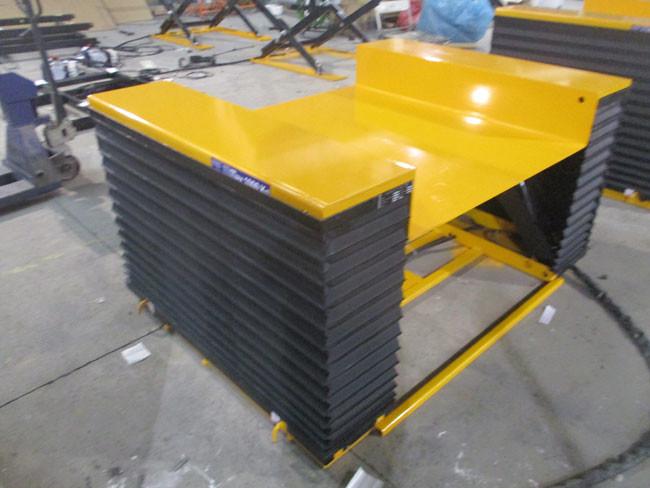

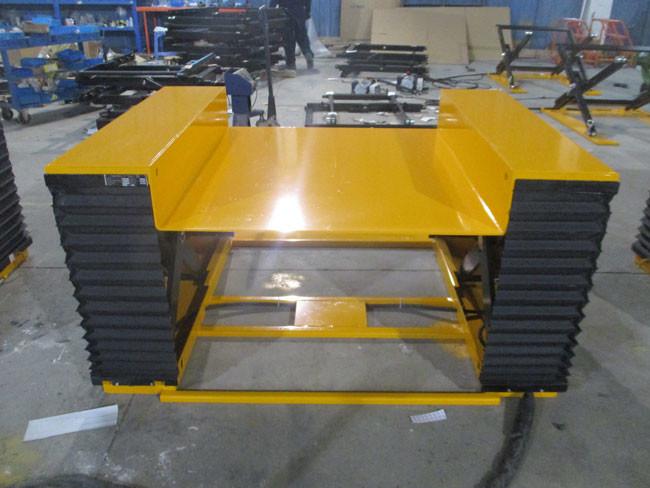

low profile electric hydraulic scissor lift table 1000kg 2000 lb with Explosion-Proof Valve
Hydraulic Low Profile Lift Tables with Dock Leveler for Pallet Use
Features:
- Heavy duty design 500-1500kg load capacity;
- Super low Concave table; can be installed without pits on ground;
- Anti-overload valve and flow compensated valve, precisely control of lowering speed;
- Safety device beneath the table ensures the table stopped lowering when there is obstacle;
- Auto lubrication guide rings on pivot points, reducing friction between components;
| Model | HX500 | HX750 | HX1000 | HX1500 |
| Capacity (kg) | 500 | 750 | 1000 | 1500 |
| Max. height H(mm) | 800 | 800 | 800 | 800 |
| Min. height h(mm) | 25 | 25 | 25 | 35 |
| Platform L×W(mm) | 1270x1100 | 1270x1100 | 1270x1100 | 1270x1100 |
| Lifting Time (second) | 25~35 | 25~35 | 25~35 | 25~35 |
| Power Pack (KW) | 380V/50Hz, AC0.75KW | 380V/50Hz, AC0.75KW | 380V/50Hz, AC0.75KW | 380V/50Hz, AC1.5KW |
| Net Weight (kg) | 207 | 250 | 280 | 380 |
Package:
FAQ:
Q: What about the quality of the products?
A: Our lift tables are CE approved, and we have five inspection steps before shipment:
1. Inspect the raw material in accordance with ISO9001;
2. Strict inspection in the whole production process;
3. Load limit test when assembling finished;
4. 100% strict inspection of lift tables before shipment;
5. If needed, inspection by buyer.
Q: Do you accept customized design? Do you offer OEM & ODM service?
A: Yes,of course! We have over 10 years' experience in customized design product,expecially lift tables.
Q: What information should I provide for a customized order?
A: The more information you provide, the accurate solution we can prepare for you.Such as:
1.control by manual or electric
2.stationary or mobile lift tables
3.power source/voltage demand
4.load capacity
5.lifting heigh(min.height and max height)
6.table size
Q: What is your MOQ?
A: One unit.The more the better.The price is negotiable for large quantity.
Q: How long is the quality guarantee?
A: All of our products carry one-year warranty.
Q: What's the leadtime?
A: Normally 30 days.
If you order more than 5 itmes mixed in one container, it will be 45 days.
If you order one item in one container, it will be 20 days.
