Small Portable Scissor Lift Table Cart Tilt Transport 100kg Mobile Platform Lift
Mobile Lift & Tilt Transport Lift Table 100kg Capacity for Workshop
Description:

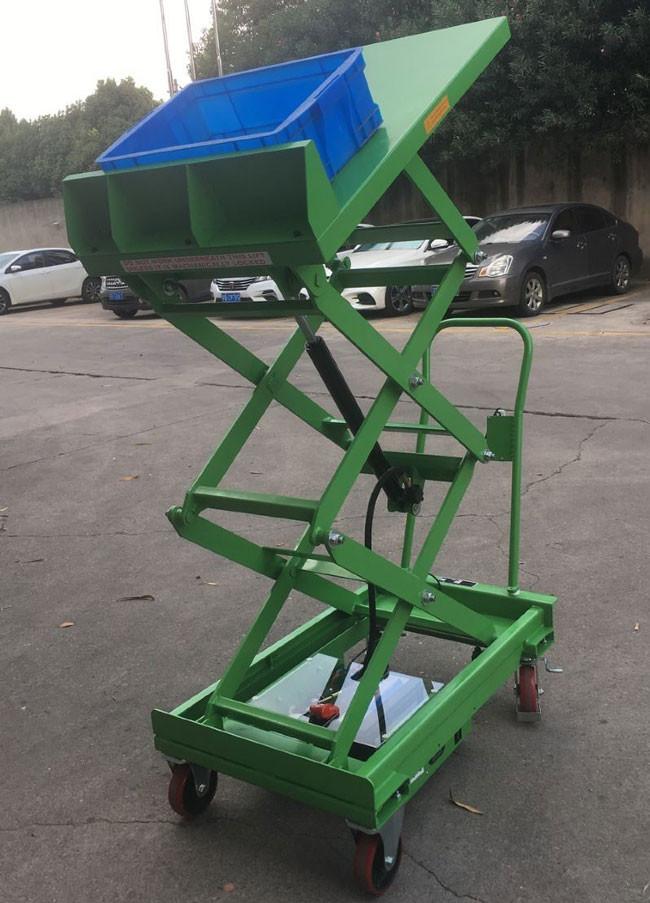

- The lift & tilt tables are specifically designed to allow an operator to feed and unload parts from tote boxes or containers quickly and easily without lifting, bending, stretching, or reaching.
- When in its lift and tilt position, the unit holds totes or containers at a comfortable working height and angle that alloes operators to easily reach parts even at the bottom of the container.

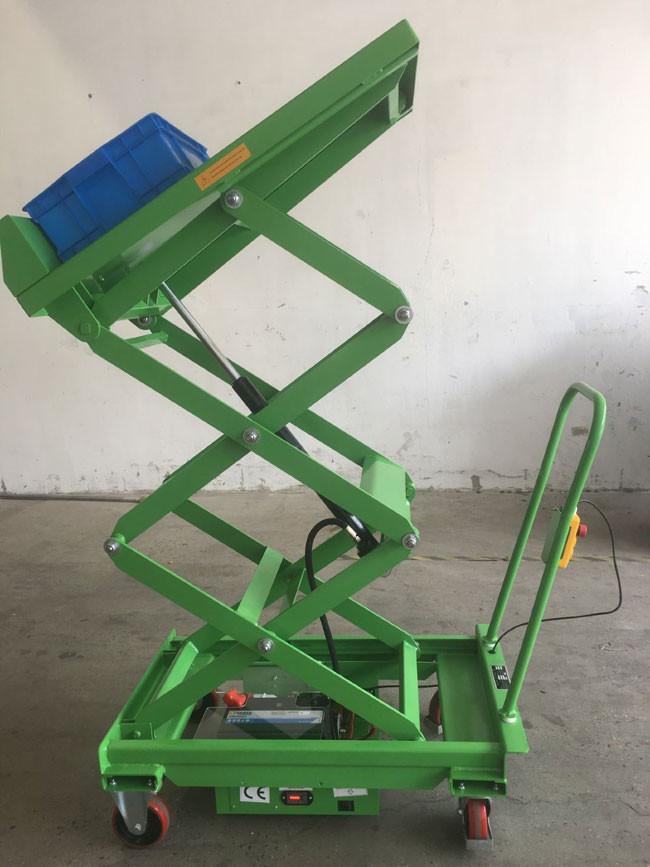

- The working table is elevated by means of a foot actuated hydraulic cylinder. As the table is raised, it automatically tilts to an angle of 45 at full elevation. Built-in retaining lip keeps containers in place.
| Model | Capacity(kg) | TableSizeL*W(mm) | TableHeight (Max./Min.) (mm) |
HandleHeight H3(mm) |
Overall Size B*C(mm) |
Foot Pedal toMax.Height |
Time to Max.Height(s) |
Net Weight (kg) |
|
| H1 | H2 | ||||||||
| BL15 | 150 | 830*500 | 415/880 | 415/1400 | 1100 | 500*1010 | 20 | -- | 92 |
| BL40 | 400 | 830*520 | 435/900 | 435/1560 | 1130 | 520*1355 | 55 | -- | 123 |
| BL80 | 800 | 830*520 | 440/1000 | 438/1570 | 1130 | 520*1355 | 80 | -- | 145 |
| TS40 | 400 | 830*520 | 500/990 | 500/1620 | 1180 | 520*1185 | -- | 20 | 170 |
| TS80 | 800 | 830*520 | 500/1000 | 500/1620 | 1180 | 520*1260 | -- | 20 | 185 |
FAQ:
Q: What about the quality of the products?
A: Our lift tables are CE approved, and we have five inspection steps before shipment:
1. Inspect the raw material in accordance with ISO9001;
2. Strict inspection in the whole production process;
3. Load limit test when assembling finished;
4. 100% strict inspection of lift tables before shipment;
5. If needed, inspection by buyer.
Q: Do you accept customized design? Do you offer OEM & ODM service?
A: Yes,of course! We have over 10 years' experience in customized design product,expecially lift tables.
Q: What information should I provide for a customized order?
A: The more information you provide, the accurate solution we can prepare for you.Such as:
1.control by manual or electric
2.stationary or mobile lift tables
3.power source/voltage demand
4.load capacity
5.lifting heigh(min.height and max height)
6.table size
Q: What is your MOQ?
A: One unit.The more the better.The price is negotiable for large quantity.
Q: How long is the quality guarantee?
A: All of our products carry one-year warranty.
Q: What's the leadtime?
A: Normally 30 days.
If you order more than 5 itmes mixed in one container, it will be 45 days.
If you order one item in one container, it will be 20 days.
