Wide Leg Electric Pallet Truck for Warehouse 2000kg 2500kg 3000kg
Wide Leg Electric Pallet Truck for Warehouse 2000kg 2500kg 3000kg
Features:
Features:
EPS system as standard option
Brand quality Curtis controller
High performance AC driving Motor
Germany made ZF gearbox
Lower energy consumption, lower noise
Electron-magnetic brake
Ergonomic Self-made handle with safety reversing switch and horn
Wide legs for special pallet. Call us at +86-15852735173 for customized solution as per your needs!
Specifications:
| Name | Pedal Electric Pallet Truck(24V) | ||||
| Operation Type | Standing Type | ||||
| Model No. | Unit | CBD20 | CBD25 | CBD30 | |
| Power Type | Full Electric | ||||
| Load Capacity | kg | 2000 | 2500 | 3000 | |
| Max. Lifting Height | H(mm) | 200 | 200 | 200 | |
| Load Center | C(mm) | 600 | |||
| Wheel Type | Polyurethane solid tire | ||||
| Fork Size | mm | 1200*175 | 1200*175 | 1200*175 | |
| Width over forks | mm | 685 | 685 | 685 | |
| Fork Clearance from the Ground | H1(mm) | 85 | |||
| Overall Length when Pedal Folded | L(mm) | 1918 | 1918 | 1918 | |
| Overall Width | S(mm) | 780 | 780 | 780 | |
| Turning Radius When Pedal Closed | Wa(mm) | 1760 | 1760 | 1760 | |
| Distance from Wheel Front to Fork End | mm | 180 | |||
| Right-angled Aisle Width 1000*1200 mm pallet(Placed along the fork, Clearance 200) | mm | 2490 | |||
| Right-angled Aisle Width 800*1200 pallet ( Placed along the fork, Clearance 200) | mm | 2398 | |||
| Max. Walking Speed | Km/h | 4~5 | |||
| Grade Ability | % | 8/10 | 8/10 | 6/8 | |
| Total Weight | kg | ~715 | ~715 | ~715 | |
| Drive Wheel | mm | Ø230*75 | |||
| Wheel Front | mm | Ø80×80 | Ø80×80 | Ø80×80 | |
| Balance Wheel | mm | Ø125×50 | Ø125×50 | Ø125×50 | |
| wheelbase | mm | 1446.5 | 1446.5 | 1446.5 | |
| Battery capacity | V/Ah | 24/210 | 24/210 | 24/210 | |
| Charger | V/A | 24/30 | 24/30 | 24/30 | |
| Driving Motor | Kw | 1.5 | 1.5 | 1.5 | |
| Lifting Motor | Kw | 0.8 | 0.8 | 0.8 | |
| Brake Type | Electromagnetic | ||||
| Drive Controller Type | AC | ||||

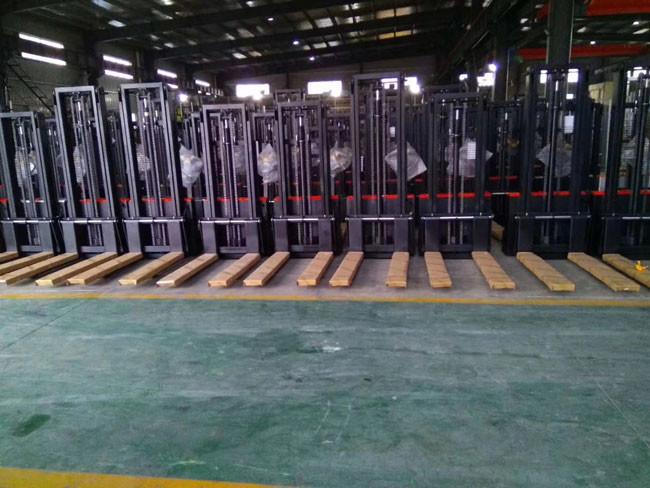

Pictures:
FAQ:
Q: What about the quality of the products?
A: Our lift tables are CE approved, and we have five inspection steps before shipment:
1. Inspect the raw material in accordance with ISO9001;
2. Strict inspection in the whole production process;
3. Load limit test when assembling finished;
4. 100% strict inspection of lift tables before shipment;
5. If needed, inspection by buyer.
Q: Do you accept customized design? Do you offer OEM & ODM service?
A: Yes,of course! We have over 10 years' experience in customized design product. Just call us at: +86-15852735173 (Lily) for your customized solution!
Q: What information should I provide for a customized order?
A: The more information you provide, the accurate solution we can prepare for you.Such as:
1.control by manual or electric
2.stationary or mobile lift tables
3.power source/voltage demand
4.load capacity
5.lifting heigh(min.height and max height)
6.table size
Q: What is your MOQ?
A: One unit.The more the better.The price is negotiable for large quantity.
Q: How long is the quality guarantee?
A: All of our products carry one-year warranty.
Q: What's the leadtime?
A: Normally 30 days.
If you order more than 5 itmes mixed in one container, it will be 45 days.
If you order one item in one container, it will be 20 days.
