Long Distance Molten Aluminum Transfer Ladle Recycled Aluminum Equipment
Price:
16000USD/set
MOQ:
1 SET
Delivery Time:
2 months
Brand:
HYDEB
Product Description

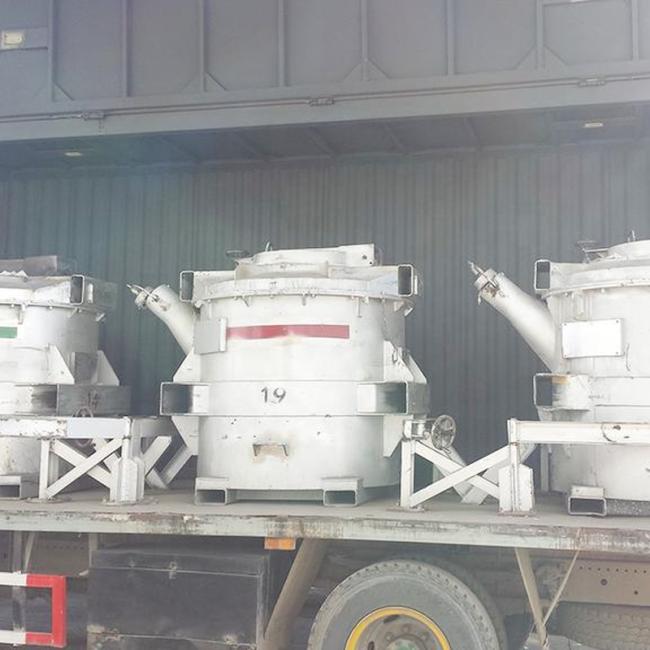

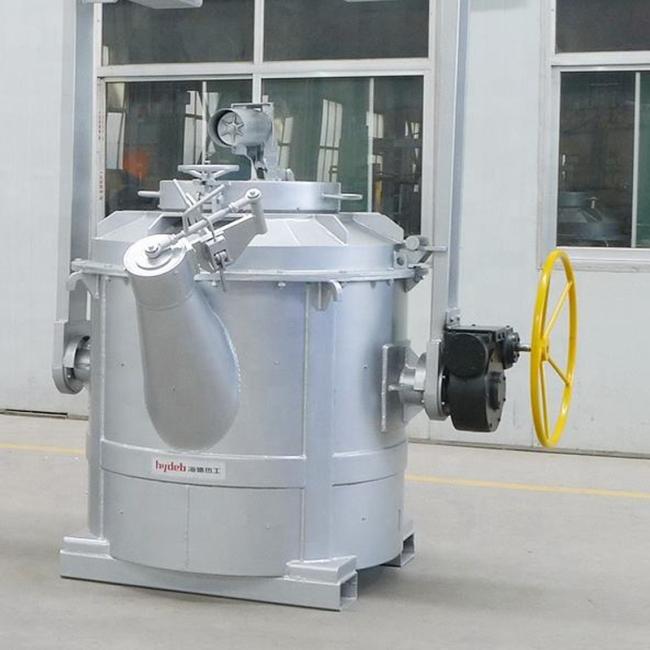

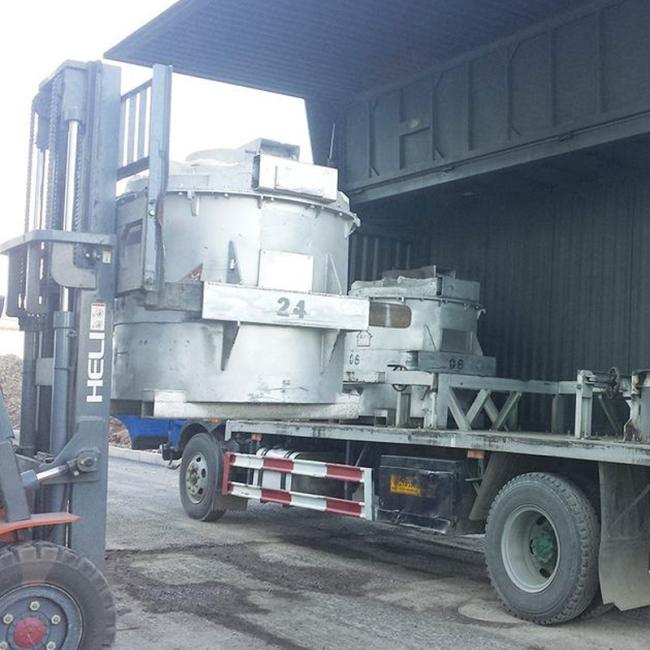

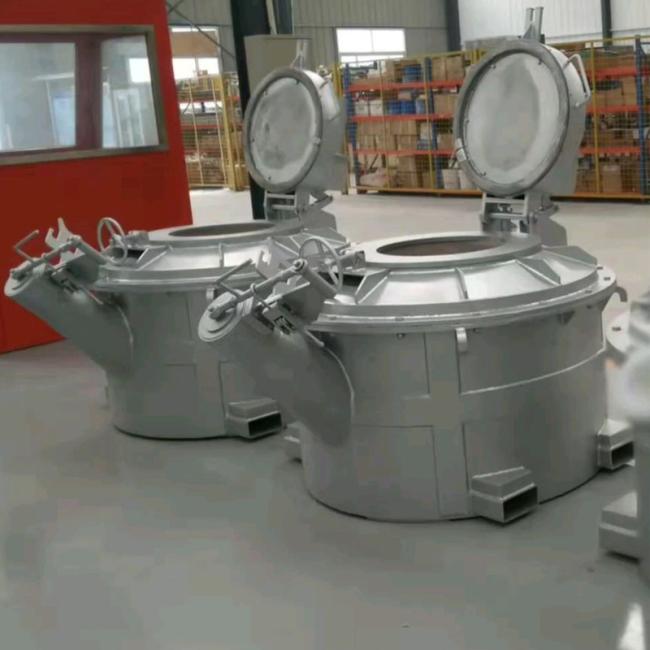

Long-distance molten aluminum transfer ladle Recycled Aluminum Equipment
Long-distance molten aluminum transfer ladle Recycled Aluminum
Equipment Introduction
• The molten aluminum transfer ladle is mostly used for long-distance safe transportation of molten aluminum to an aluminum
casting factory.
• The molten aluminum transfer ladle is mostly used for long-distance safe transportation of molten aluminum to an aluminum
casting factory.
Equipment Features
• No molten aluminum leakage, high transportation safety. The ladle body is firm; the ladle lip and cover are reliably sealed,
with molten aluminum not to overflow even if the ladle body topples over.
• Excellent thermal insulation performance, low natural temperature drop. The thermal insulation layer, made of a heat-insulating
Nano-fibrous material, has excellent thermal insulation performance; made of a special material and specially structured, the
working layer (in contact with the molten aluminum) prevents the molten aluminum from leaking. The ladle has low surface
temperature, suitable for long-distance transportation.
• Low weight, transportation cost-saving. The lightweight heat-insulating Nano-material ensures a small ladle body size and a low
ladle body weight.
• Excellent non-stickiness with molten aluminum, easy to clean. The inner layer of the lining, made of a dedicated refractory
casting material, has good aluminum tolerance and high resistance to corrosion by molten aluminum.
• High resistance to thermal and cold shocks, high strength. The dedicated high-strength ladle lining can resist frequent thermal
shocks without falling off.
• A long service life. Professionally designed and manufactured, ensuring that the lining life is more than 24 months in
continuous use.
• The lade cover actuator (optional) helps to open the ladle cover with ease.
• No molten aluminum leakage, high transportation safety. The ladle body is firm; the ladle lip and cover are reliably sealed,
with molten aluminum not to overflow even if the ladle body topples over.
• Excellent thermal insulation performance, low natural temperature drop. The thermal insulation layer, made of a heat-insulating
Nano-fibrous material, has excellent thermal insulation performance; made of a special material and specially structured, the
working layer (in contact with the molten aluminum) prevents the molten aluminum from leaking. The ladle has low surface
temperature, suitable for long-distance transportation.
• Low weight, transportation cost-saving. The lightweight heat-insulating Nano-material ensures a small ladle body size and a low
ladle body weight.
• Excellent non-stickiness with molten aluminum, easy to clean. The inner layer of the lining, made of a dedicated refractory
casting material, has good aluminum tolerance and high resistance to corrosion by molten aluminum.
• High resistance to thermal and cold shocks, high strength. The dedicated high-strength ladle lining can resist frequent thermal
shocks without falling off.
• A long service life. Professionally designed and manufactured, ensuring that the lining life is more than 24 months in
continuous use.
• The lade cover actuator (optional) helps to open the ladle cover with ease.
| Items | Parameters | Remarks | |
| Modle | HBQ-230 | ||
| Heating Type | Small; Medium; Big | ||
| Max. Burning Calorific Value | 20x104 Kcal/h | ||
| Max Heating Temperature | 1100℃ | ||
| Working Heating Temperature | 0-850℃ | ||
| Heating Rate | 0-50 ℃/min Adjustable | ||
| Time to Reach Temperature | 0-60 min | ||
| Heating Temperature Uniformity | ≤50 ℃ | ||
| Lifting Power | Air Cylinder Driver | ||
| Lifting Stroke | 0-400mm | ||
| Gas | Gas Type | Natural Gas | |
| Gas Pressure | 5000 ±5% Pa | ||
| Gas Flow | ≤24 m³/h | ||
| Power | Voltage | 380 V, 3P | |
| Frequency | 50HZ | ||
| Rated Power | 3 KW | ||
| Compressed Air | Pressure | 0.5-0.7 MPa | |
| Flow | ≤50 M3/H | ||
