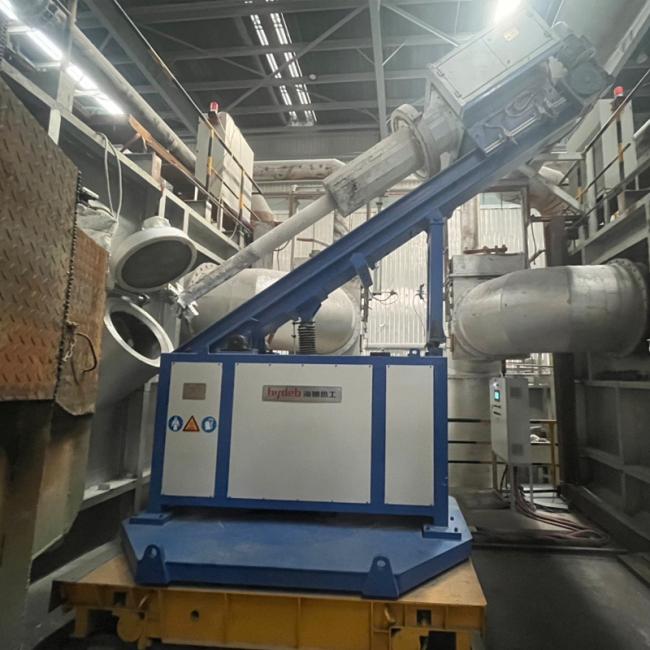

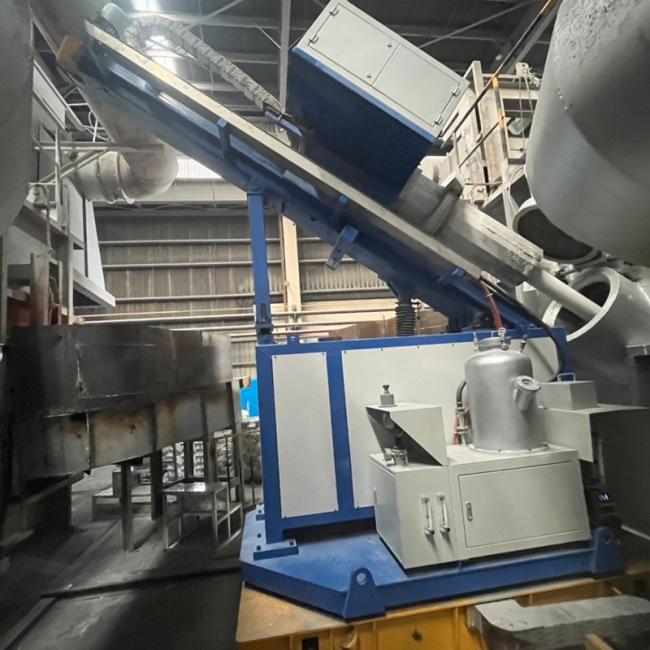

380V Rotary Degassing Unit With Adjustable Refined Gas Pressure And And 150kW Power
Product Description:
The Rotary Degassing Unit is a state-of-the-art machine designed for the purification of molten aluminum. With a total power of 150kW and a frequency of 50Hz , this machine is the perfect choice for aluminum foundries and smelters looking to improve the quality of their molten aluminum.
The Rotary Degassing Unit uses a rotary degassing process to remove impurities such as hydrogen, oxides, and non-metallic particles from molten aluminum. The machine's rotor swing range of 30° ensures complete and effective degassing of the molten aluminum.
- Efficient Purification: The Rotary Degassing Unit can refine and degas molten aluminum in just 0 to 99 minutes , making it one of the fastest purification machines in the market.
- Adjustable Gas Pressure: The machine allows for easy adjustment of refined gas pressure, with a range of 0.1 to 0.6 MPa . This ensures that the purification process is tailored to the specific needs of the molten aluminum.
- Improved Quality: By removing impurities from the molten aluminum, the Rotary Degassing Unit helps to improve the overall quality of the final aluminum product.
- Easy to Use: This machine is designed for user convenience, with a simple and user-friendly interface that allows for easy control and monitoring of the purification process.
- Durable and Reliable: Built with high-quality materials and advanced technology, the Rotary Degassing Unit is a long-lasting and reliable solution for molten aluminum purification.
The Rotary Degassing Unit is suitable for use in a wide range of applications, including:
- Aluminum foundries
- Aluminum smelters
- Aluminum casting plants
- Aluminum production facilities
It is compatible with various types of molten aluminum, including primary, secondary, and recycled aluminum.
The Rotary Degassing Unit offers numerous benefits, including:
- Improved quality of molten aluminum
- Reduced scrap and rework
- Increased productivity and efficiency
- Easy operation and maintenance
- Cost-effective solution
In summary, the Rotary Degassing Unit is a reliable and efficient aluminum degassing machine that offers superior performance and results. With its advanced technology and user-friendly design, it is the ultimate solution for molten aluminum purification. Invest in the Rotary Degassing Unit today and take your aluminum production to the next level!
Features:
- Product Name: Rotary Degassing Unit
- Graphite Rotor Speed r/min: 100-400
- Refined Gas Pressure MPa: Adjustable From 0.1 To 0.6
- Voltage V: 380V
- Total Power kW: <150kW
- Frequency Hz: 50Hz
- Furnace side refining equipment
- Aluminum In-Furnace Slag Removal Equipment
- Aluminum degassing machine
Technical Parameters:
| Product Name | Rotary Degassing Unit |
|---|---|
| Product Type | Molten Aluminum Degassing Machine / Aluminum Smelting Purification Equipment / Aluminum Furnace Side Refining Equipment |
| Rotor Swing Range | 30° |
| Graphite Rotor Speed r/min | 100-400 |
| Voltage V | 380V |
| Refined Gas Pressure MPa | Adjustable from 0.1 to 0.6 |
| Refined Gas Purity % | ≥99.997 |
| Rotor Tilt Range mm | 0 to 32° |
| Refined Gas Flow Rate m³/h | Adjustable from 5.7 to 25.5 |
| Refinement and Degassing Time min | 0 to 99 |
| Power Supply Phases | Three-phase four-wire |
| Frequency Hz | 50Hz |
Applications:
The Rotary Degassing Unit, also known as the Aluminum degassing machine or molten Aluminum purification machine, is a refining equipment used in front of the furnace. It is designed and manufactured by HYDEB, a company located in Jinan, China. The machine is designed to remove impurities and gases from molten Aluminum, ensuring a high level of purity and quality in the final product.
The Rotary Degassing Unit is suitable for use in the following scenarios:
- Aluminum smelting plants
- Foundries
- Metal casting factories
It is used in the purification process of molten Aluminum to remove impurities and gases, such as hydrogen, in order to achieve a high level of purity in the final product.
| Brand Name | HYDEB |
|---|---|
| Model Number | HDR-2xxx |
| Place of Origin | Jinan, China |
| Certification | CE, ISO9001 |
| Minimum Order Quantity | 1 set |
| Price | 9998USD/set |
| Packaging Details | Standard exporting package |
| Delivery Time | 45 workdays |
| Payment Terms | L/C, T/T, Western Union, MoneyGram |
| Supply Ability | 60 sets per year |
| Voltage V | 380V |
| Graphite Rotor Speed r/min | 100-400 |
| Refined Gas Purity % | ≥99.997 |
| Total Power kW | <150kW |
| Refined Gas Flow Rate m³/h | Adjustable From 5.7 To 25.5 |
The Rotary Degassing Unit utilizes a rotating graphite rotor to stir the molten Aluminum and create a vortex. This allows for the removal of impurities and gases, which are then collected and removed through a vacuum pump. The purified and degassed Aluminum is then ready for further processing.
- High purification efficiency
- Adjustable gas flow rate for different production needs
- Low power consumption
- Easy to operate and maintain
- Highly reliable and durable
- Low noise and minimal pollution
The Rotary Degassing Unit by HYDEB is a high-quality and efficient refining equipment used in the production of pure and high-quality molten Aluminum. With its advanced technology and reliable performance, it is a crucial component in the Aluminum smelting industry.
Customization:
Model Number: HDR-2xxx
Place of Origin: Jinan, China
Certification: CE ISO9001
Minimum Order Quantity: 1 set
Price: 9998USD/set
Packaging Details: Standard exporting package
Delivery Time: 45 workdays
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 60 sets per year
Product Description:
The HYDEB Rotary Degassing Unit is a customized service designed for aluminum smelting and purification. This equipment is essential for refining the molten aluminum and removing impurities to ensure high-quality end products.
Key Features:
- Brand Name: HYDEB
- Rotor Swing Range: 30°
- Graphite Rotor Speed r/min: 100-400
- Refined Gas Pressure MPa: Adjustable From 0.1 To 0.6
- Power Supply Phases: Three-phase Four-wire
- Voltage V: 380V
Application:
The Rotary Degassing Unit is specifically designed for aluminum furnace side refining, providing advanced purification technology to improve the quality of molten aluminum. It is an essential equipment for aluminum smelting and purification processes.
Customized Service:
At HYDEB, we understand that every customer's needs are unique. That's why we offer customized services to meet your specific requirements. Our team of experts will work closely with you to tailor the Rotary Degassing Unit to your production processes, ensuring optimal performance and efficiency.
Ordering Information:
To place an order for our Rotary Degassing Unit, please contact us with your specific requirements. Our team will provide you with a personalized quote and guide you through the ordering process.
Thank you for considering the HYDEB Rotary Degassing Unit for your aluminum smelting and purification needs.
Packing and Shipping:
Our Rotary Degassing Unit is carefully packaged to ensure safe and secure delivery to our customers. Each unit is wrapped in protective materials and placed in a sturdy box to prevent any damage during transit.
For international shipments, the unit is packed in a wooden crate and securely fastened to prevent any movement or shifting during transport.
Upon arrival at the destination, the Rotary Degassing Unit is inspected and tested to ensure it meets our high-quality standards before being shipped to the customer.
We offer various shipping options to accommodate our customers' needs, including standard and expedited shipping. All shipments are tracked and insured for added peace of mind.
For any special packaging or shipping requests, please contact our customer service team for assistance.
