DC 24V GRG ATM Parts
Price:
negotiable
MOQ:
1pc
Delivery Time:
1day
Brand:
GRG
Product Description

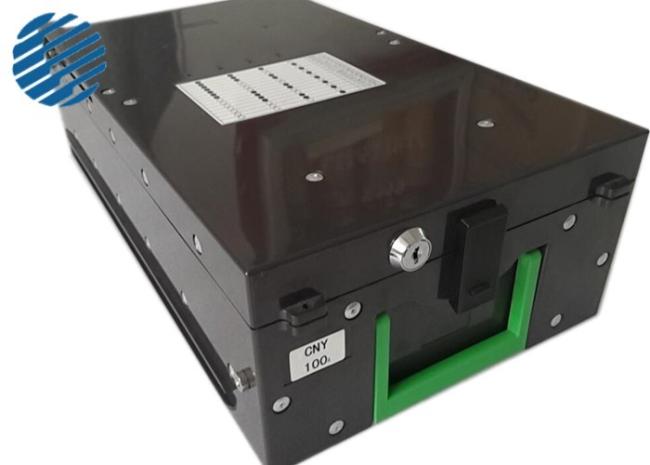

YT4.100.208 GRG ATM Parts CDM8240 Dispenser Note Cassette H22V
YT4.100.208 GRG ATM Parts CDM8240 Dispenser Note Cassette H22V
- Product features
Compliant with financial industrial standard Banknote detection and handling technique Low operation and maintenance cost Friendly maintenance
CDM8240 dispenses banknotes in bundle with a high speed of 7 notes/s . Impact resistant cassettes with large capacity lower the frequency of cash loading . High-grade note detection technology , auto retracting function and banknote serial number recording function (optional) ensure accurate transaction data . All above embody our design concept of high reliability and friendly maintenance, which decrease the cost for operation and maintenance .CDM 8240 will surely meet your application demands .
- Reliability
Complete detection for worn notes, double
notes and folded notes
Available to banknotes of various materials,whether new or not
Keyed reject bin is fully enclosed for security
- Low Operation Cost
Cassette with the large capacity of 3000 notes lowers the frequency of cash loading and d aintenance cost
Leading dispensing speed of 7 notes per second meets the demand of fast transaction
Bills not taken within the specified period will be automatically captured by the CDM, which avoids conflicts during transaction
- Low Maintenance Cost
Less quick-wear parts and longer ser vice life
Solve bill jams in need of no professional tools
- Product Specifications
| Bill Dispensing | Bundle widthwise with a speed of 7 notes per second |
| Banknote Available | Material:paper and polymer Length range:110~172mm Width range:55~85mm,Thickness range: 0.06~0.18mm |
| Cassette | Capacity:3000 notes for each cassette Low level detection: 50-250 notes |
| Reject Bin |
Capacity: 100 notes(bundle)+250 notes
(single)
Fully enclosed and isolated design with
a security lock
|
| Maintenance Direction | Front/ rear access |
| Communication Interface | RS-232 or USB |
| GRG BANKING ATM parts list | |||||
| ROW1 | PARTNUMBER | Description | ROW2 | PARTNUMBER | Description |
| 1 | YT4.029.020 | NOTE FEEDER | 34 | YT8.401.046 | MOD_T_PULLEY_MXL_F_27_08_12 |
| 2 | YT4.100.208 | NOTE CASSETTE | 35 | S.0100159RS | S_T_UPPER_BELT_B97MXL |
| 3 | YT4.100.207 | R_REJECT_TRAY | 36 | S.0100161RS | S_DR_BELT_UPPER_B73MXL |
| 4 | S.0100143RS | BD_F2F_TIMING_BELT_80S3M351 | 37 | S.0100162RS | S_DR_BELT_UPPER_B101MXL 6mm |
| 5 | S.0100147RS | BD_T2F_TIMING_BELT_80S3M177 | 38 | S.0100160RS | S_CAM_DR_BELT_S3M129 MXL56T X6mm |
| 6 | YT2.503.143 | PCB_CDM8240_ASSY (New Version support 6 hopper) |
39 | YT8.401.030 | MOD_GEAR_M08_30_06_04_NEW |
| 7 | YT8.401.037 | F_PICK_ROLLER_RUBBER | 40 | YT8.401.041 | MOD_GEAR_M1_30_06_08 |
| 8 | YT8.322.130 | F_CR_ROLLER_ASSY | 41 | YT8.401.042 | MOD_GEAR_M1_30_06_04_IDLE |
| 9 | YT8.322.114 | F_T_ROLLER_1533_06_ASSY | 42 | YT8.401.040 | MOD_T_PULLEY_S3M_22_08_22_MODEL |
| 10 | YT8.401.039 | MOD_T_PULLEY_S3M_F_22_08_12_NEW | 43 | YT8.401.045 | MOD_T_PULLEY_MXL_F_35_08_12 |
| 11 | YT8.401.029 | MOD_GEAR_M08_20_05_04_NEW | 44 | YT8.401.042 | MOD_T_PULLEY_MXL_F_30_08_12 |
| 12 | S.0100144RS | F_SS_TIMING_BELT_60S3M171 | 45 | S.0070324RS | MOD_SENSOR_G310 |
| 13 | S.0100145RS | F_SP_TIMING_BELT_60S3M144 | 46 | S.0070325RS | MOD_SENSOR_DIG310D |
| 14 | S.0100331RS | F_TRANSPORT_BELT_INSIDE_10 SE-N-SMV1 10X235X0.65mm | 47 | A.RE006RS | MOD_SENSOR_U_SG248 |
| 15 | S.0100332RS | F_TRANSPORT_BELT_OUTSIDE_10 | 48 | S.0170244RS | MOD_BEARING_051405_STAINLESS |
| 16 | YT4.853.1080 | CDM_NF_PM_CABLE_ASSY | 49 | S.0170216RS | MOD_BEARING_08120350 |
| 17 | YT4.853.1078 | CDM_NF_SENSOR_CABLE | 50 | S.0170213RS | MOD_BEARING_F_051004 |
| 18 | YT6.336.019 | T_DOUBLE_DETECTOR | 51 | S.0170233RS | MOD_BEARING_F_081404 |
| 19 | YT6.303.013 | T_TRANSPORT_RUBBER_ASSY_5 | 52 | S.0170217RS | MOD_BEARING_081404 |
| 20 | YT8.322.123 | T_IMPELLER_08 | 53 | S.0170201RS | MOD_BEARING_ F_ 061305 |
| 21 | YT8.071.005 | ENCODE_WHEEL_1 | 54 | S.0170215RS | MOD_BEARING_06103 |
| 22 | YT8.610.1181 | T_MTT_PVC_BRUSH | 55 | S.0170248RS | MOD_BEARING_F_081605 |
| 23 | S.0100156RS | T_TIMING_BELT_1ST 80S3M726 | 56 | YT2.898.050 | MOD_PCB_REED_SWITCH_1_ASSY |
| 24 | S.0100157RS | T_TIMING_BELT_2ND 80S3M564 | 57 | YT4.853.1077 | CDM_LL_ID_CABLE |
| 25 | MOD_T_PULLEY_S3M_F_22_08_12_NEW | 58 | S.0170239RS | MOD_BEARING_030905 | |
| 26 | S.0100346RS | T_TRANSPORT_INSIDE_1ST_BELT 10*548*0.65mm | 59 | S.0060114RS | C_BOX_SOUTHCO |
| 27 | S.0100347RS | T_TRANSPORT_OUTSIDE_1ST_BELT 10*367*0.65mm | 60 | YT4.853.2467 | CDM_BND_CABLE-ASSY |
| 28 | S.0100348RS | T_TRANSPORT_INSIDE_4TH_BELT 10*214*0.65 | 61 | YT4.853.2468 | CDM_SND_CABLE_ASSY |
| 29 | S.0100349RS | T_TRANSPORT_OUTSIDE_2ND_BELT 10*564*0.65 | 62 | S.0100305RS | P_LONG_T_BELT_LOWER |
| 30 | S.0100350RS | T_TRANSPORT_INSIDE_3RD_BELT 10*184*0.65mm | 63 | S.0100353RS | P_LONG_T_BELT_UPPER SE-N-SMV1 10*804*0.65 |
| 31 | S.0100354RS | T_TRANSPORT_INSIDE_2ND_BELT SE-N-SMV1,10*304*0.65mm | 64 | S.0100158RS | P_T_TIMING_BELT |
| 32 | YT8.671.059 | Anti-Statics Electroinic brush |
65 | YT4.853.2052 | MOTOR_TG_05IA_SR_28_CN089_ASSY |
| 33 | YT4.853.1665 | MOD_BL_MOTOR_DRG-6034-001 | 66 | YT8.081.040 | GRG banking ATM parts Sankyo Card Reader Control Board |
- Pics detail
