In-Output Module Customer Tray Wincor Nixdorf ATM Parts 1750193244 CRS
Price:
negotiable
MOQ:
1pc
Delivery Time:
1day
Brand:
wincor Cineo
Product Description

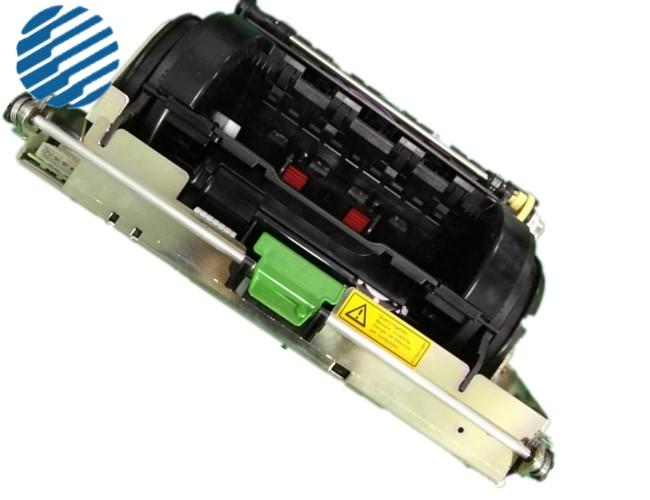

1750193244 Wincor ATM Parts In-Output Module Customer Tray CRS
- Services
Wincor Nixdorf’s fast, professional
manufacturer service is available as
an option for the CINEO C4060 as
part of the complete solution offer.
Tailored services enable the highest
possible system availability and
security worldwide due to standard
ized service processes and efficient
remote management based on the
Wincor Nixdorf eServices Platform®.
By request banks can hand over
their complete IT operations and
the control of their cash processes
to Wincor Nixdorf’s service organi
zation.
- Security across the board
Criminal attacks often result in
more than just damage to systems
– they are also likely to concern
customers. CINEO C4060 offers
impressive new security features:
An Anti-Manipulation Card Slot, the
Anti-Skimming II Module, high
resolution cameras, Optical
Security Guard, CrypTA Stick and
EPP V6 with privacy shield, are all
features that close potential security
gaps, improve system availability
and win customer confidence.
- PROCESSOR
• Celeron, i3, i5
ACCESSIBILITY
• Headphone jack
CONSUMER EXPERIENCE
• Branding panel
• Alphanumeric keyboard
- POWER ARCHITECTURE
• Uninterruptable Power Supply (UPS)
ID DEVICES
• Fingerprint reader
• EMV-ready card reader,
Motorized or DIP
• Contactless card reader
• Barcode scanner 1D/2D
- PRINTERS
• 80 mm enhanced graphical
receipt printer with dual paper roll
• Passbook
• Journal printer / Statement printer
DISPENSER/DEPOSITORY
• Coin dispenser (8-fold count)
• Coin deposit (sidecar)
- Banknote Recognition
• Banknote validation as per
ECB framework
• Processes up to 120
denominations simultaneously
- Product detail
| Items used in | WINCOR Cineo C4060,CINEO C4040,CINEO C4080 |
| Machine category | CRM |
| SIZE | 13*15*25cm |
|
Security monitoring
|
Cash removal, portrait and ID card
unit camera
Optical Security Guard (OSG)
|
|
Identity and
access control
|
Operator authentication via CrypTA
|
|
Operation Environmental conditions |
Temperature range: +5 °C to +40 °C / Humidity: 5 % to 85 % |
| Technical details |
Supply voltage range:
110 – 120 V; 220 – 240 V
▪ Mains frequency 50/60 Hz
▪ Uninterruptable Power Supply
|
|
ATM Parts in WINCOR RM3 In-Output Module Customer Tray CRS |
|
| 01750193244 | In-Output Module Customer Tray CRS |
| 01750220000 | In-/Output Module Customer Tray CRS-M (M=incl. green bin for foreign material) |
| 02225200128 | Pressure spring:0,45;3,55;14 (behind green lever) |
| 01750124511 | pressure plate |
| 01750041951 | gear wheel G25 |
| 07220400028 | Compression spring F.Bail |
| 05164300728 | Pressure spring:0,5;7;15 |
| 01750203956 | margin stop left io-case outdoor |
| 01750203957 | margin stop right io-case outdoor |
| 01750123897 | margin stop left io-case old |
| 01750123896 | margin stop right io-case old |
| 09251600820 | Prism III |
| 03834500311 | deep groove ball bearing 4x13x5 |
- Pics Detail
