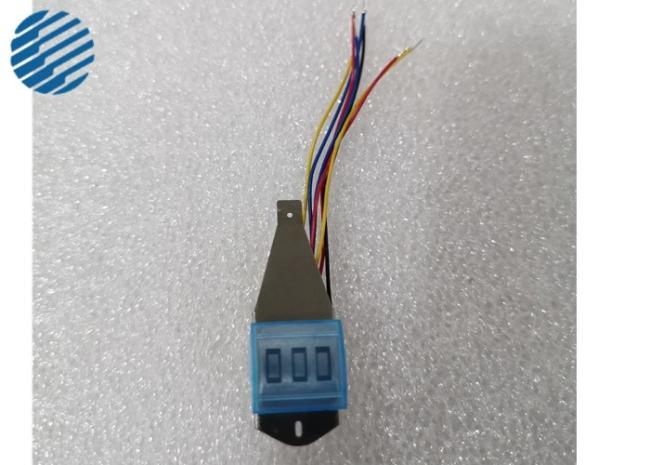

89-030528-000A Diebold Opteva TK 1,2,3 Read ICM 330 Magnetic Head
89-030528-000A Diebold Opteva TK 1,2,3 Read ICM 330 Magnetic Head4
- DN Series™ Motorized Card Reader
The following steps describe the basic operation of the motorized card reader (Figure 2-1).
1.The consumer inserts the card into the slot.
2.The slot has a gate that allows the card to be partially inserted; if the card is properly oriented, the
gate opens and motorized card reader pulls the card in. If the motorized card reader is commanded
to accept chip only cards, the magnetic stripe detection is disabled.
3.The transaction begins when the card is inside the reader.
4.The card is automatically returned to the consumer at the end of the transaction.
3.1
Beginning and Ending a Maintenance Session
The operator should know how to perform the following tasks before using the other procedures in this
section.
•Opening the system to access the card reader.
•Placing the system in the maintenance mode.
•Returning the system to full operation.
Refer to the operator manual for the system for more information about these tasks.
Manually Retrieving Jammed Cards
The consumer's card can sometimes get stuck in the transport mechanism. Use the following steps to
manually remove jammed cards.
1.Place the system in the maintenance mode.
2.To eject a jammed card toward the card reader entry slot, push and hold the plunger of the shut
ter solenoid to open the shutter. Refer to the following figure.
3.Rotate the drive train pulley away from the card slot (counterclockwise) until the card can be re
trieved at the card slot.
- Product Detail
| DIEBOLD CARD READER PARTS list | ||
| ROW1 | PARTNUMBER | NAME |
| 1 | 49-201479-000A | Blet |
| 2 | 49-201480-000A | DIEBOID TIMING BELT 2,CCR |
| 3 | 49-201483-000A | MOTOR ASSY |
| 4 | 49-201485-000A | SHUTTER SOLENOID ASSY |
| 5 | 49-201478-000A | LT1 COVER |
| 6 | 49-201332-000A | BRKT,STRP UP |
| 7 | 49-201481-000A | SW1, SW2 MICROSWITCHES |
| 8 | S02A631A01-D S24A549C01 | Diebold opteva card reader control board |
| 9 | 29011535002A | Card Reader Head 1.2.3 Read/Tk3 Write |
| 10 | 19-040621-000B | maganetic pre-read head |
| Below Shaft for V module are produced by our factory.we can supply big quantity in short time.Sample is availabe | 1750035762 plastic pulley draw off shaft |
| 1750035778 drive shaft cmd v4 assy | |
| 1750035768 thickness measuring shaft | |
| 1750020811 Counter Rotational Shaft | |
| 1750035275 Shaft With 8 Rollers | |
| 1750035776 Drive Shaft CMD V4 Assy |
| WINCOR V2CU parts list | ||
| ROW | PARTNUMBER | NAME |
| 1 | 1750173205-01 | V2CU feed roller #1 |
| 2 | 1750173205-02 | V2CU feed roller #2 (5mm) |
| 3 | 1750173205-03 | V2CU feed roller #3 (4mm) |
| 4 | 1750173205-04 | V2CU feed roller #4 |
| 5 | 1750173205-31 | Wincor V2CU Card Reader Solenoid Valve |
| 6 | 1750173205-34 | Wincor V2CU Card Reader Pre-head |
| 7 | 1770031905 | V2CU HI-Co card reader head Track123 R/W |
| 8 | 1770006974 | V2CU card reader magnetic head |
| 9 | YS-WC007 | V2CU belts 155T |
| 10 | YS-WC008 | V2CU belts 227T |
| 11 | 1750173205-29 | Wincor V2CU Card Reader Control PCB |
| 12 | 1750173205-39 | V2CU IC contact |
| 13 | 1750173205-37 | Wincor V2CU Card Reader Switch |
| 14 | 1750173205-04 | Wincor V2CU Card Reader ATM Spare parts Gear |
| 15 | 1750173205-36 | Wincor V2CU Card Reader Switch |
| 16 | 1750173205-70 | V2CU card reader Roller in set |
| 23 | 1750173205 | WINCOR Card reader CHD V2CU standard |
| 24 | 1750301280 | WINCOR ATM parts Card reader CHD V2CU HiCo + AntiM3 |
| 25 | 1750301282 | WINCOR ATM parts Card reader CHD V2CU ACT + AntiM3 |
| 26 | 1750301279 | WINCOR ATM parts Card reader CHD V2CU standard + AntiM3 |
| 27 | 1750199932 | WINCOR ATM parts Card reader CHD V2CU HiCO Version |
| 28 | 1750220204 | WINCOR ATM parts V2CU adapter cable IDCU II (V2CU to V2X) |
| 29 | 1750192337 | WINCOR ATM parts adapter cable IDCU (V2X to V2CU) |
| 30 | 1750199931 | WINCOR ATM parts Card reader CHD V2CU ACT Version |
| 31 | 1750239436 | WINCOR ATM parts ICM330 IC Contact Block Assy |
| 32 | 1750239274 | WINCOR Nixdorf ICM300 IC Contact Block Assy |
| 33 | 1750208512 | WINCOR USB SMART DIP CARD READER |
| 34 | 1770010158 | WINCOR V2X IC block |
