00104470000C 998-0235689 Diebold Card Reader Magnetic For ATM

Name: 00104470000C 998-0235689 Diebold Card Reader Magnetic For ATM
Brand: TS TECH (HONG KONG) CO.,LTD.

Price Negotiable

Price: negotiable

MOQ: 1pc

Delivery Time: 1day

Brand: DIEBOLD

Product Description

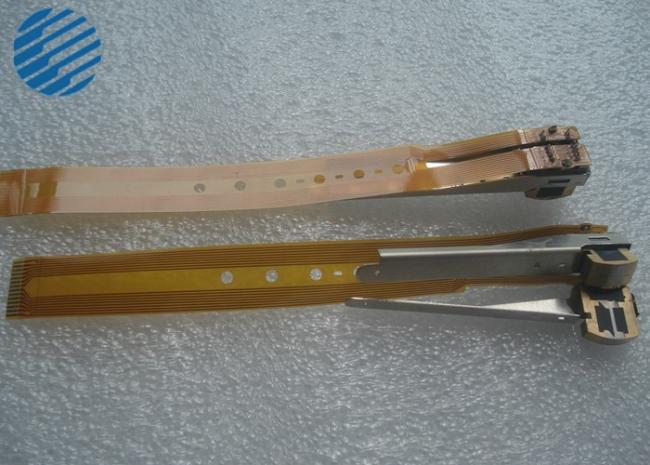

998-0235689 Diebold Opteva Parts Card Reader Magnetic Read Head

998-0235689 Diebold Opteva Parts Card Reader Magnetic Read Head

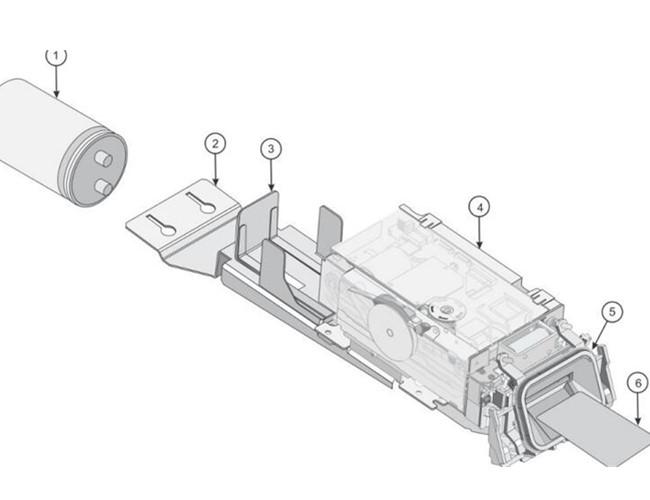

Manually Retrieving Retained or Captured Cards

The motorized card reader has an open retained card bin or a locked retained card bin to store cap

tured cards. The retained card bin holds all cards not returned to consumers.

A card may be retained for the following reasons:

•The network commanded the system to retain the card.

•The consumer left the card in the card slot loo long after the transaction session ended.

•After a power failure process ended.

Perform the following steps to manually retrieve retained or captured cards.

1.Open the system and gain access to the card reader.

2.Remove the captured cards from the card bin.

Perform the following steps to clean the card reader with commands.

1.Place the system in maintenance mode.

2.Insert the head cleaning card into the card slot.

3.The card reader tries to read the cleaning card, moves the card over the read head that is being

cleaned and finally ejects the card. It may be necessary to repeat the operation several times.

4.Return the system to the normal mode of operation.

5.Dispose of cleaning card.

DIEBOLD CARD READER PARTS list
ROW1	PARTNUMBER	NAME
1	49-201479-000A	Blet
2	49-201480-000A	DIEBOID TIMING BELT 2,CCR
3	49-201483-000A	MOTOR ASSY
4	49-201485-000A	SHUTTER SOLENOID ASSY
5	49-201478-000A	LT1 COVER
6	49-201332-000A	BRKT,STRP UP
7	49-201481-000A	SW1, SW2 MICROSWITCHES
8	S02A631A01-D S24A549C01	Diebold opteva card reader control board
9	29011535002A	Card Reader Head 1.2.3 Read/Tk3 Write
10	19-040621-000B	maganetic pre-read head

Below Shaft for V module are produced by our factory.we can supply big quantity in short time.Sample is availabe	1750035762 plastic pulley draw off shaft
	1750035778 drive shaft cmd v4 assy
	1750035768 thickness measuring shaft
	1750020811 Counter Rotational Shaft
	1750035275 Shaft With 8 Rollers
	1750035776 Drive Shaft CMD V4 Assy

WINCOR V2CU parts list
ROW	PARTNUMBER	NAME
1	1750173205-01	V2CU feed roller #1
2	1750173205-02	V2CU feed roller #2 (5mm)
3	1750173205-03	V2CU feed roller #3 (4mm)
4	1750173205-04	V2CU feed roller #4
5	1750173205-31	Wincor V2CU Card Reader Solenoid Valve
6	1750173205-34	Wincor V2CU Card Reader Pre-head
7	1770031905	V2CU HI-Co card reader head Track123 R/W
8	1770006974	V2CU card reader magnetic head
9	YS-WC007	V2CU belts 155T
10	YS-WC008	V2CU belts 227T
11	1750173205-29	Wincor V2CU Card Reader Control PCB
12	1750173205-39	V2CU IC contact
13	1750173205-37	Wincor V2CU Card Reader Switch
14	1750173205-04	Wincor V2CU Card Reader ATM Spare parts Gear
15	1750173205-36	Wincor V2CU Card Reader Switch
16	1750173205-70	V2CU card reader Roller in set
23	1750173205	WINCOR Card reader CHD V2CU standard
24	1750301280	WINCOR ATM parts Card reader CHD V2CU HiCo + AntiM3
25	1750301282	WINCOR ATM parts Card reader CHD V2CU ACT + AntiM3
26	1750301279	WINCOR ATM parts Card reader CHD V2CU standard + AntiM3
27	1750199932	WINCOR ATM parts Card reader CHD V2CU HiCO Version
28	1750220204	WINCOR ATM parts V2CU adapter cable IDCU II (V2CU to V2X)
29	1750192337	WINCOR ATM parts adapter cable IDCU (V2X to V2CU)
30	1750199931	WINCOR ATM parts Card reader CHD V2CU ACT Version
31	1750239436	WINCOR ATM parts ICM330 IC Contact Block Assy
32	1750239274	WINCOR Nixdorf ICM300 IC Contact Block Assy
33	1750208512	WINCOR USB SMART DIP CARD READER
34	1770010158	WINCOR V2X IC block
