Magnetic R/W Motorized Card Reader Head 1770006962 Omron ID 18
Price:
negotiable
MOQ:
1pc
Delivery Time:
1day
Brand:
WINCOR
Product Description

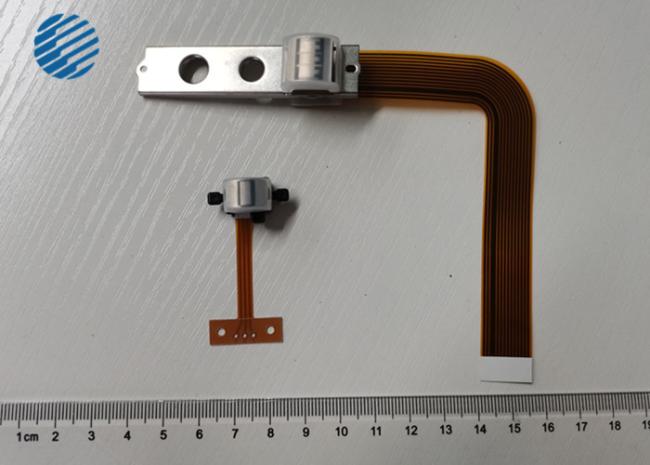

1770006962 Wincor Parts Omron ID 18 Card Reader Magnetic R/W Head
1770006962 Wincor Parts Omron ID 18 Card Reader Magnetic R/W Head
- DN Series™ Motorized Card Reader
Perform the following steps to manually clean the card reader with a cleaning card.
1. Push and hold the plunger of the shutter solenoid to open the shutter. Refer to Figure 3-3.
2. Insert the cleaning card short edge first into the card slot.
3. Move the cleaning card toward the rear of the card reader by rotating the drive train pulley clock
wise until the cleaning card can be retrieved at the rear of the card reader.
4. Repeat Step 2 and Step 3 if more cleaning is needed.
5. Retrieve the cleaning card.
6. Dispose of the cleaning card.
Advanced Skimming Detection has the following features:
• Advanced Skimming Detection is an anti-skimming sensor installed on the card reader. The sensor
detects the presence of a customer presenting a card to the card reader or the presence of a foreign
object attached to the card reader bezel area. This sensor identifies card reader fraud devices.
• Use T/SOP to identify the problem. Refer to the following information to resolve the problem
- Product Detail
| Below Shaft for V module are produced by our factory.we can supply big quantity in short time.Sample is availabe | 1750035762 plastic pulley draw off shaft |
| 1750035778 drive shaft cmd v4 assy | |
| 1750035768 thickness measuring shaft | |
| 1750020811 Counter Rotational Shaft | |
| 1750035275 Shaft With 8 Rollers | |
| 1750035776 Drive Shaft CMD V4 Assy |
| WINCOR V2CU parts list | ||
| ROW | PARTNUMBER | NAME |
| 1 | 1750173205-01 | V2CU feed roller #1 |
| 2 | 1750173205-02 | V2CU feed roller #2 (5mm) |
| 3 | 1750173205-03 | V2CU feed roller #3 (4mm) |
| 4 | 1750173205-04 | V2CU feed roller #4 |
| 5 | 1750173205-31 | Wincor V2CU Card Reader Solenoid Valve |
| 6 | 1750173205-34 | Wincor V2CU Card Reader Pre-head |
| 7 | 1770031905 | V2CU HI-Co card reader head Track123 R/W |
| 8 | 1770006974 | V2CU card reader magnetic head |
| 9 | YS-WC007 | V2CU belts 155T |
| 10 | YS-WC008 | V2CU belts 227T |
| 11 | 1750173205-29 | Wincor V2CU Card Reader Control PCB |
| 12 | 1750173205-39 | V2CU IC contact |
| 13 | 1750173205-37 | Wincor V2CU Card Reader Switch |
| 14 | 1750173205-04 | Wincor V2CU Card Reader ATM Spare parts Gear |
| 15 | 1750173205-36 | Wincor V2CU Card Reader Switch |
| 16 | 1750173205-70 | V2CU card reader Roller in set |
| 23 | 1750173205 | WINCOR Card reader CHD V2CU standard |
| 24 | 1750301280 | WINCOR ATM parts Card reader CHD V2CU HiCo + AntiM3 |
| 25 | 1750301282 | WINCOR ATM parts Card reader CHD V2CU ACT + AntiM3 |
| 26 | 1750301279 | WINCOR ATM parts Card reader CHD V2CU standard + AntiM3 |
| 27 | 1750199932 | WINCOR ATM parts Card reader CHD V2CU HiCO Version |
| 28 | 1750220204 | WINCOR ATM parts V2CU adapter cable IDCU II (V2CU to V2X) |
| 29 | 1750192337 | WINCOR ATM parts adapter cable IDCU (V2X to V2CU) |
| 30 | 1750199931 | WINCOR ATM parts Card reader CHD V2CU ACT Version |
| 31 | 1750239436 | WINCOR ATM parts ICM330 IC Contact Block Assy |
| 32 | 1750239274 | WINCOR Nixdorf ICM300 IC Contact Block Assy |
| 33 | 1750208512 | WINCOR USB SMART DIP CARD READER |
| 34 | 1770010158 | WINCOR V2X IC block |
- Pics detail
