NCR Selfserv ATM Machine Parts , Card Reader Pre Head 998-0235654 For Data
Price:
negotiable
MOQ:
1pc
Delivery Time:
1day
Brand:
NCR
Product Description

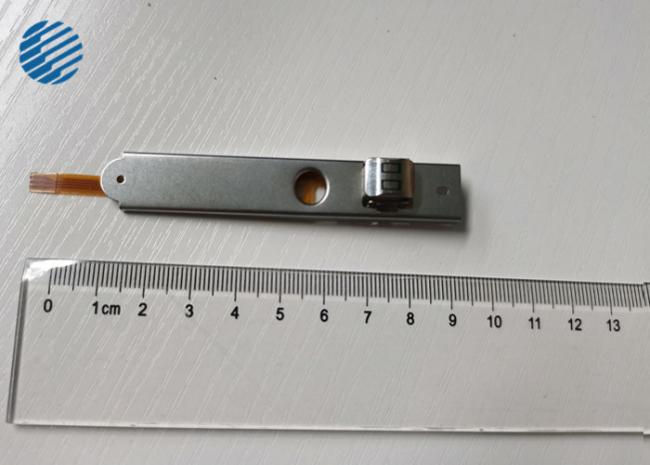

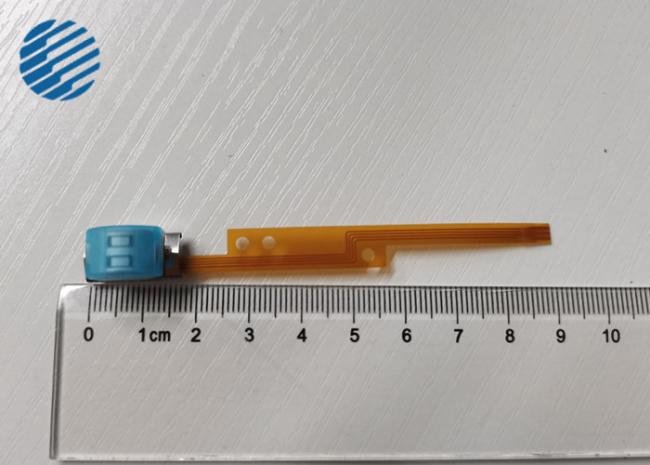

998-0235654 NCR Selfserv ATM Parts Pre Head Factory Offer Price
998-0235654 NCR Selfserv ATM Parts Pre Head Factory Offer Price
69540869 Wincor ATM Parts Cineo V2CU Card Reader Pre Read Head 1750173205-34
- NCR SelfServ™ 22e
Product dimensions • HEIGHT 55.6” (1,412mm) • WIDTH 17.7” (450mm) • DEPTH CEN I front access safe 30.8” (784mm) CEN I rear access safe 38.5” (978mm) • WEIGHT CEN I front access safe 1.146lbs (520kg) CEN I rear access safe 1.235lbs (560kg) Customer interface • Display – Choice of 15” LCD color with 8 FDKs or 15” LCD touchscreen, XGA with auto scaling, optional privacy filter, sunlight readable displays • Keyboard – Full recessed EPP (PCI compliant), polycarbonate or stainless steel • Tamper Resistant Card Readers – Smart Dip, IMCRW, CROPF and/or System Escape, HiCo • Optional Integrated Media Entry and Exit Indicators (MEEI) • Contactless – Integrated Reader (via card, smartphone or smartwatch) • Audio – Optional high quality public audio and/or sound jack with volume control • Advert Panel – Standard or enhanced with backlight • Barcode Reader – 2D Barcode supports both 1D and 2D documents Media Handing 2.0 technology • Dispense – S2 Media Dispense Module: up to 60 note bunch, 2,500 notes per cassette, vacuum based with adaptive pick technology • Configurable purge bin capability with retract and single note divert • Anti-overfill cassette Communication options • Integrated Ethernet Printers • Receipt Printer – 80mm 203dpi graphics thermal printer • Journal Printer – 80mm 203dpi graphics thermal printer (E-Journal available as default) Security • USB Protection and Parts Validation • Options: Integrated Skimming Protection Solution (SPS), Solidcore Suite for APTRA, Camera NTSC / PAL, UL437 Topbox Lock, Uninterrupted Power Supply (UPS) • CEN I safe Environmental • Temperature – Standard: 50°F to 104°F (10°C to 40°C) • Humidity – 20% to 80% • Acoustics – Sound power 65db (A) idle, 68db (A) operating Operating platform • A range of Intel® Processors • 4GB, 8GB RAM or 16GB RAM • Primary or Secondary Hard Disk Drive or Solid State Drive • DVD-RW drive Software • Microsoft Windows® 7 / Windows® 10 ready • NCR software suite Additional Features • Biometrics Option
- Product Detail
| DIEBOLD | |||
| Brand | ATM part no. | Machine | Function |
| Diebold | 19-040622-000A | all | 1 CH pre read |
| Diebold | 19-040621-000A | all | 2 CH pre read |
| Diebold | 29-011535-002A | all | 1 CH TRK 2 read |
| Diebold | 89-030466-000B | all | CH 1,2 RD-CH 3 R/W |
| Diebold | 29-011535-003A | all | TK 1,2,3 R/W |
| Diebold | 49-252158-000A | all | TK 1,2,3 R/W |
| Diebold | 89-030465-000-A | all | TK 1,2,3 R/W HiCo |
| Diebold | 89-031300-000-A | all | TK 1,2,3 R/W HiCo |
| Sankyo | S31A664A16 | all | TK 1,2,3 R/W HiCo |
| Diebold | 49-252159-000A | all | TK 1,2,3 R/W HiCo |
| Diebold | 39-013920-000-D | IX | TK 1,2,3 read - ICM 300 |
| Sankyo | SBW246502 | Opteva | TK 1,2,3 read - ICM 330 |
| Diebold | 89-030528-000-A | Opteva | TK 1,2,3 read - ICM 330 |
| NCR | |||
| Brand | ATM part no. | Machine | Function |
| NCR | 998-023-5654 | 56XX, 58XX | 1 CH pre read |
| NCR | 998-023-5658 | 56XX, 58XX | 2 CH pre read |
| NCR | 998-023-5635 | 56XX, 58XX | 1 CH TRK 2 read |
| NCR | 998-023-5657 | 56XX, 58XX | 1 CH TRK 2 read |
| NCR | 998-023-5656 | 56XX, 58XX | CH 1,2 RD-CH 3 R/W |
| NCR | 998-023-5655 | 56XX, 58XX | TK 1,2,3 R/W |
| NCR | 998-023-5684 | HiCo MCRW | TK 1,2,3 R/W HiCo |
| Sankyo | SBW237705 | HiCo IMCRW | TK 1,2,3 R/W HiCo |
| NCR | 900-300-1970 | HiCo IMCRW | TK 1,2,3 R/W HiCo |
| NCR | 998-091-1138 | dip readers | TK 1,2,3 read – ICM 300 |
| Sankyo | SBW246502 | dip readers | TK 1,2,3 read – ICM 330 |
| WINCOR | |||
| ATM | WINCOR PART NUMBER | TS PART NUMBER | FUNCTION |
| ID18 | 3976673-0 | O3RW104TS | TK 1,2,3, R/W HEAD |
| ID18 | 3976669-2 | O3RW104TS-HC | TK 1,2,3 R/W HiCo |
| ID18 | 2067293-0 | O26S-TS | PRE READ HEAD |
| V2X | 4999785-4 | O3RW106TS | TK 1,2,3, R/W HEAD |
| V2X | 6954086-9 | 027TS | PRE READ HEAD |
| V2X | ------- | O3RW106TS-HC | TK 1,2,3 R/W HiCo |
| V2CU | ------- | O3RW106TS2 | TK 1,2,3 R/W HEAD |
| V2CU | ------- | O28TS | PRE READ HEAD |
| ICM 300 | Dip/Insert Readers | TDR33TS | 3 CH READ HEAD |
| CENTRIC | Dip/Insert Readers | TDR33OTS | 3 CH READ HEAD |
- Pics detail
