CRM9250 GRG ATM Parts
Price:
negotiable
MOQ:
1pc
Delivery Time:
1day
Brand:
GRG
Product Description

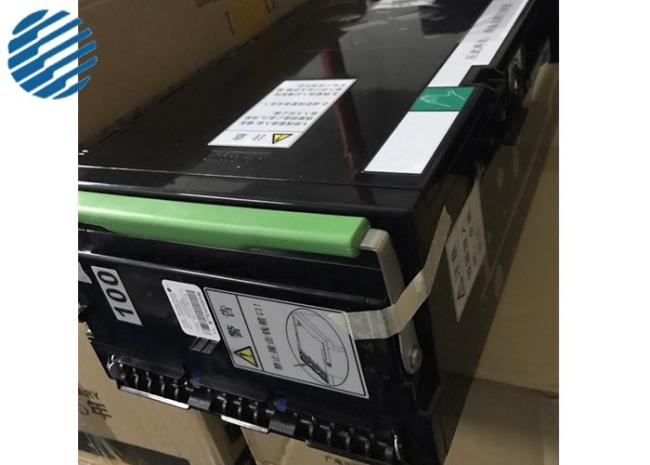

YT4.029.062 GRG Parts Recycling Machine CRM9250 Recycle Cassette
YT4.029.062 GRG Parts Recycling Machine CRM9250 Recycle Cassette
- GRG ATM CRM9250
The CRM9250 is a GRG independent developed cash recycling module. With the state-of-the-art technology CRM9250 present a very high performance, with fast cash processing speed of 8 notes/ second, large capacity of 3000 notes per intelligent recycling cassettes plus one multifunctional cassette and flexible configuration. Furthermore the online cash sorting and counting reduce the workload of internal staff and the functionality of serial number capturing ensures the feasibility of banknote tracking. The modular design and off-line diagnosis system make the maintenance easy and fast. It’s an ideal cash processing solution which optimize cash management and minimize the Total Cost of Ownership,CRM 9250 Cash Recycler Module provides 4 advanced features of GRG’s leading technology with all independent intellectual property rights owned by GRG.
Specification Media ranges: Length: 120-172mm Width: 60-85m Maximum notes per transaction: 200 notes Reliability: MTBF: 4,500 hrs; Jam Rate: <0.003%; Reject Rate: <1%；Acceptance Rate: >95%; Life: 10 years Communication interface: RS-232C (USB is optional); 57,600bps Baud Rates; CRC Verify mode. Weight: 125kg(Including 5 empty cassettes) Temperature: Operating:0-50 0C；Idle:0-50 0C； Storage: -100C -550C Humidity: Operating: 15-85%RH; Idle: 10-90%RH; Storage: 5-95%RH Power supply: Voltage: DC ＋36V +10%; Current: +12A; Power: Idle 50W, operating 430W
- Product Specifications
| GRG BANKING ATM parts list | |||||
| ROW1 | PARTNUMBER | Description | ROW2 | PARTNUMBER | Description |
| 1 | YT4.029.020 | NOTE FEEDER | 34 | YT8.401.046 | MOD_T_PULLEY_MXL_F_27_08_12 |
| 2 | YT4.100.208 | NOTE CASSETTE | 35 | S.0100159RS | S_T_UPPER_BELT_B97MXL |
| 3 | YT4.100.207 | R_REJECT_TRAY | 36 | S.0100161RS | S_DR_BELT_UPPER_B73MXL |
| 4 | S.0100143RS | BD_F2F_TIMING_BELT_80S3M351 | 37 | S.0100162RS | S_DR_BELT_UPPER_B101MXL 6mm |
| 5 | S.0100147RS | BD_T2F_TIMING_BELT_80S3M177 | 38 | S.0100160RS | S_CAM_DR_BELT_S3M129 MXL56T X6mm |
| 6 | YT2.503.143 | PCB_CDM8240_ASSY (New Version support 6 hopper) |
39 | YT8.401.030 | MOD_GEAR_M08_30_06_04_NEW |
| 7 | YT8.401.037 | F_PICK_ROLLER_RUBBER | 40 | YT8.401.041 | MOD_GEAR_M1_30_06_08 |
| 8 | YT8.322.130 | F_CR_ROLLER_ASSY | 41 | YT8.401.042 | MOD_GEAR_M1_30_06_04_IDLE |
| 9 | YT8.322.114 | F_T_ROLLER_1533_06_ASSY | 42 | YT8.401.040 | MOD_T_PULLEY_S3M_22_08_22_MODEL |
| 10 | YT8.401.039 | MOD_T_PULLEY_S3M_F_22_08_12_NEW | 43 | YT8.401.045 | MOD_T_PULLEY_MXL_F_35_08_12 |
| 11 | YT8.401.029 | MOD_GEAR_M08_20_05_04_NEW | 44 | YT8.401.042 | MOD_T_PULLEY_MXL_F_30_08_12 |
| 12 | S.0100144RS | F_SS_TIMING_BELT_60S3M171 | 45 | S.0070324RS | MOD_SENSOR_G310 |
| 13 | S.0100145RS | F_SP_TIMING_BELT_60S3M144 | 46 | S.0070325RS | MOD_SENSOR_DIG310D |
| 14 | S.0100331RS | F_TRANSPORT_BELT_INSIDE_10 SE-N-SMV1 10X235X0.65mm | 47 | A.RE006RS | MOD_SENSOR_U_SG248 |
| 15 | S.0100332RS | F_TRANSPORT_BELT_OUTSIDE_10 | 48 | S.0170244RS | MOD_BEARING_051405_STAINLESS |
| 16 | YT4.853.1080 | CDM_NF_PM_CABLE_ASSY | 49 | S.0170216RS | MOD_BEARING_08120350 |
| 17 | YT4.853.1078 | CDM_NF_SENSOR_CABLE | 50 | S.0170213RS | MOD_BEARING_F_051004 |
| 18 | YT6.336.019 | T_DOUBLE_DETECTOR | 51 | S.0170233RS | MOD_BEARING_F_081404 |
| 19 | YT6.303.013 | T_TRANSPORT_RUBBER_ASSY_5 | 52 | S.0170217RS | MOD_BEARING_081404 |
| 20 | YT8.322.123 | T_IMPELLER_08 | 53 | S.0170201RS | MOD_BEARING_ F_ 061305 |
| 21 | YT8.071.005 | ENCODE_WHEEL_1 | 54 | S.0170215RS | MOD_BEARING_06103 |
| 22 | YT8.610.1181 | T_MTT_PVC_BRUSH | 55 | S.0170248RS | MOD_BEARING_F_081605 |
| 23 | S.0100156RS | T_TIMING_BELT_1ST 80S3M726 | 56 | YT2.898.050 | MOD_PCB_REED_SWITCH_1_ASSY |
| 24 | S.0100157RS | T_TIMING_BELT_2ND 80S3M564 | 57 | YT4.853.1077 | CDM_LL_ID_CABLE |
| 25 | MOD_T_PULLEY_S3M_F_22_08_12_NEW | 58 | S.0170239RS | MOD_BEARING_030905 | |
| 26 | S.0100346RS | T_TRANSPORT_INSIDE_1ST_BELT 10*548*0.65mm | 59 | S.0060114RS | C_BOX_SOUTHCO |
| 27 | S.0100347RS | T_TRANSPORT_OUTSIDE_1ST_BELT 10*367*0.65mm | 60 | YT4.853.2467 | CDM_BND_CABLE-ASSY |
| 28 | S.0100348RS | T_TRANSPORT_INSIDE_4TH_BELT 10*214*0.65 | 61 | YT4.853.2468 | CDM_SND_CABLE_ASSY |
| 29 | S.0100349RS | T_TRANSPORT_OUTSIDE_2ND_BELT 10*564*0.65 | 62 | S.0100305RS | P_LONG_T_BELT_LOWER |
| 30 | S.0100350RS | T_TRANSPORT_INSIDE_3RD_BELT 10*184*0.65mm | 63 | S.0100353RS | P_LONG_T_BELT_UPPER SE-N-SMV1 10*804*0.65 |
| 31 | S.0100354RS | T_TRANSPORT_INSIDE_2ND_BELT SE-N-SMV1,10*304*0.65mm | 64 | S.0100158RS | P_T_TIMING_BELT |
| 32 | YT8.671.059 | Anti-Statics Electroinic brush |
65 | YT4.853.2052 | MOTOR_TG_05IA_SR_28_CN089_ASSY |
| 33 | YT4.853.1665 | MOD_BL_MOTOR_DRG-6034-001 | 66 | YT8.081.040 | GRG banking ATM parts Sankyo Card Reader Control Board |
- Pics detail
