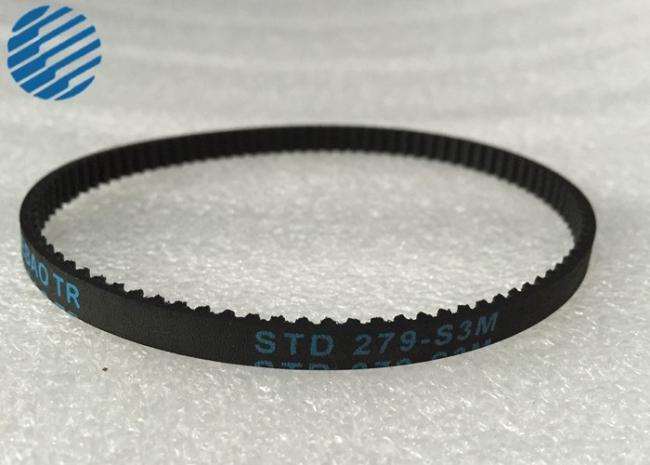

S4820000014 HYOSUNG ATM UP_KIT:T-BELT:B60S3M279:G-CDU 4820000014
Price:
negotiable
MOQ:
1pc
Delivery Time:
1day
Brand:
Nautilus Hyosung
Product Description
S4820000014 HYOSUNG ATM UP_KIT:T-BELT:B60S3M279:G-CDU 4820000014
S4820000014 HYOSUNG ATM UP_KIT:T-BELT:B60S3M279:G-CDU 4820000014
- Error Code List for MX5600 NH
4001000 NAND Flash R/W Error. 1. Turn the power off and on and try the command again. 2. Replace the CDU main board if the same
symptom recurs.
4001100 Clearing(Format) EEPROM failed. 1. Turn the power off and on and try the command again. 2. Relace the main board or the cassettee if the same symtom recurs.
4001200 Invalid cassette serial number. 1. Remove the Cassette and put it back. 2. Check the cassette serial number. 3. Replace the Cassette if the same symptom recurs.
4001400 NoteDB has CRC error. 1. Turn the power off and on and check the DB file. 2. If the file is proper, replace the USB cable and
retry Download. 3. Replace the CDU main board if the same symptom recurs.
4001500 Note DB Write error. 1. Turn the power off and on and check the DB file. 2. If the file is proper, replace the USB cable and
check again. 3. Replace the CDU main board if the same symptom recurs.
- HYOSUNG ATM Specification
| NAUTILUS HYOSUNG ATM parts list | |||||
| ROW1 | PARTNUMBER | Description | ROW2 | PARTNUMBER | Description |
| 1 | 7760000068 | PCBA:CST_PP:CDU10 | 43 | S7307000094 | UP_KIT: SUB_ASSY:MOLD_ENT |
| 2 | 7710000023 | PCBA:BDM SUB BD | 44 | S7307000267 | UP_KIT:SUB_ASSY:UNIT_BNA_BUNDL |
| 3 | S7760000054 | UP-KIT:UNIT:BRM:ASSY.TE | 45 | S7307000263 | UP_KIT:SUB_ASSY:REJECT_BNA |
| 4 | 47042701 | KEY-ASSY:V-BRM | 46 | 3281000244 | CABLE_ASSY:UNIT_POS_SW:BNA |
| 5 | S7430001446 | UP_KIT:SUB-ASSY:UNIT:BRM20-BMU | 47 | 2168000030 | SENSOR:RPU8702CP_OKAYA |
| 6 | S7430001447 | UP_KIT:SUB_ASSY:UNIT:BRM20_BMD | 48 | 2168000051 | KIS_9002C_TR:C_RAN NK:YELLOW |
| 7 | S5611000195 | UP_KIT:PCBA:M170EG01:17INCH:CCFL:AUO | 49 | 3281000243 | CABLE_ASSY:BOX_POS_SW:BNA |
| 8 | 7430000809 | UP_KIT:SUB_ASSY:REEL_UPPER_TAPE | 50 | 2168000053 | KIS_9002C_TR:C_RAN NK:RED |
| 9 | 7430000805 | UP_KIT:SUB_ASSY:REEL_LOWER_TAPE | 51 | 4420000065 | PLATE_MOLD:OPEN_BNA |
| 10 | 7000000226 | UP_KIT:UNIT:BILL CHECKER (B CU24) | 52 | 4370000784 | K-ASSY_MOLD:UCM_COVER:MX-7600 |
| 11 | 5611000125 | UP_KIT:PCBA:NCM-V05F-2:USB CAM | 53 | 2168000055 | KIS_9002C_TR:A_RANK:WHITE |
| 12 | 7760000093 | UP_KIT:PCBA:BRM20 RBU B/D | 54 | 2168000052 | KIS_9001C_LED:B_RANK:RED |
| 13 | 5659000024 | T/S:TOUCH PANEL:T101IS-5RB001X:HIGGSTEC | 55 | 4933000114 | WINDOW_ACRYL:MIRROR_SIDE:MX-7600 |
| 14 | 7000000192 | UNIT:BRM20 RC_164 (RECYCLING CASSETTE) | 56 | 7490000019 | PCBA:NEC4PORT:USB:HUB:B/D:HIGH SPEED |
| 15 | S4350000597 | GEAR:OD28ID06_KNOB | 57 | 7111000011 | UNIT:P/L:HPS500-ACDB:MX-7600T |
| 16 | S4251000004 | SHAFT:GATE_BLADE_DEG20_CST | 58 | 4370000678 | K-ASSY_MOLD:COVER-BARCODE:MX-7600T IR |
| 17 | S4360000706 | GUIDE:GATE_BLADE_DE20_BC_2 | 59 | 4370001121 | UP-KIT:SUB-ASSY:REEL1 |
| 18 | S4360000726 | GUIDE:GATE_BLADE_DEG20_UTB_D | 60 | 4370001122 | UP-KIT:SUB-ASSY:REEL2 |
| 19 | S4360000727 | GUIDE:GATE_BLADE_DEG20_UTB_U | 61 | 3281000248 | CABLE ASSY:BNA BC ENCODER |
| 20 | S4360000728 | GUIDE:GATE_BLADE_3WAY | 62 | 5637000009 | MICRO CLUTCH:BL-2.5-198 |
| 21 | S7760000092 | PCBA:BRM20 MAIN B/D | 63 | 4240000020 | KEY SET ASSY:1 SET/ I KEY |
| 22 | S7760000094 | PCBA:BRM20 CSM B/D | 64 | 7307000184 | SUB_ASSY:RT_CASSETTE |
| 23 | S4380000032 | KNOB:MOLD_KNOB_BRM20 | 65 | 7020000025 | UP_KIT:UNIT:K-SPR8 |
| 24 | S7660000015 | PCBA:HBRM ID | 66 | 7111000012 | UP_KIT:UNIT:DC/DC:HPS200-FCE(TG):MX-7600 |
| 25 | S4430000404 | PULLEY:CLUTCH_KNOB | 67 | 7307000026 | UP_KIT:ASSY:DRIVE MODULE 01 |
| 26 | S7760000095 | PCBA:BRM20 RC B/D | 68 | 7090000208 | UP_KIT:UNIT:CE:MX-7600T:L440:N |
| 27 | S7000000183 | UNIT:BRM20_UNIT_CSM | 69 | 7307000209 | UP_KIT:SUB_ASSY:MULTI_CURRENCY |
| 28 | S2168000050 | KIS-9001C_LED:C_RANK:YELLOW | 70 | 7307000222 | UP_KIT:SUB_ASSY:ESCROW |
| 29 | S2168000054 | KIS-9001C_LED:A_RANK:WHITE | 71 | 4930000052 | RAIL:CEB560(26-37):DRIVE-UP |
| 30 | S2168000068 | OJ-461-N23 ( KIT 5039C ) | 72 | 5611000118 | PCBA:TG_PC:MAINBOARD:ECS_EG31M |
| 31 | S2168000077 | SENSOR_DD_KIS-9010C_LED | 73 | 7760000054 | PCBA:BNA_ MAIN |
| 32 | S2168000078 | SENSOR_DD_KIS-9011C_DIODE | 74 | 7900000929 | UP-KIT:SUB:MOTOR 23KM 03 |
| 33 | S32127902 | CABLE_ASSY:DOOR_SENSOR:GIRO | 75 | 7900000927 | UP-KIT:ASSY:MOTOR 23KM 01 |
| 34 | S7760000098 | PCBA:BRM20_Shutter | 76 | 7900000928 | UP-KIT.ASSY:MOTOR 23KM 02 |
| 35 | S7200000890 | UP_KIT:SUB_ASSY:COLLAR_WING:MX87000T_NG | 77 | 7900000930 | UP_KIT:ASSY:MOTOR ESCROW |
| 36 | S4380000031 | KNOB:MOLD_D45X7H_BMD | 78 | 7900000931 | UP_KITT:SUB-ASSY:CLUTCH-HS1130 |
| 37 | S7490000022 | PCBA:DUAL_USB-HUB:FULL SPEED | 79 | 7900000932 | UP_KIT:ASSY:SOL-GATE-5 |
| 38 | 7710000023 | PCBA:BDM Sub B/D | 80 | 7900000933 | UP-KIT:ASSY:SOL-GATE |
| 39 | S5623000001 | UP_KIT:INVERTER:AT-0150LG BIS | 81 | 7900000935 | UP-KIT:SUB_ASSY:DRIVE MODULE RTCST |
| 40 | 3266000214 | CABLE_ASSY_SHU:MOD SWITCH:MCD-10 | 82 | S2101000165 | NEC 4 PORT USB HUB |
| 41 | S7307000061 | DRIVE MODULE 02 | 83 | S3266002121 | CABLE_ASSY_SYS:MODE SWITCH 1/ |
| 42 | 3205000027 | CABLE_ASSY_CDU:1,2CST SENSOR 1/F | 84 | S45100508 | BEARING:L-136022 |
