S4820000015 HYOSUNG ATM UP_KIT:BELT:B60S3M564 G-CDU 4820000015
Price:
negotiable
MOQ:
1pc
Delivery Time:
1day
Brand:
Nautilus Hyosung
Product Description

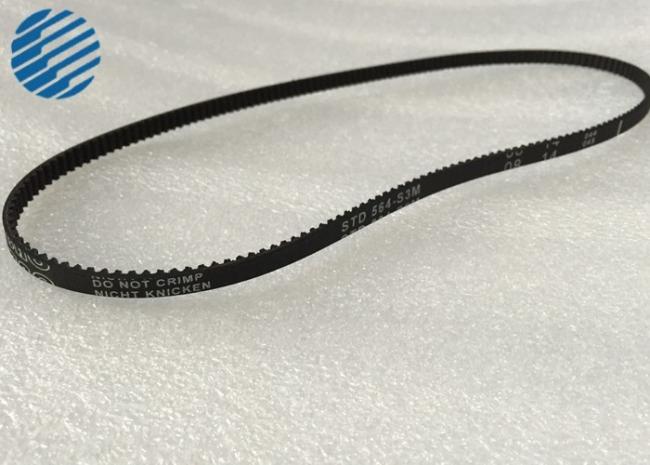

S4820000015 HYOSUNG ATM UP_KIT:BELT:B60S3M564 G-CDU 4820000015
S4820000015 HYOSUNG ATM UP_KIT:BELT:B60S3M564 G-CDU 4820000015
- Error Code List for MX5600 NH
4001500 Note DB Write error. 1. Turn the power off and on and check the DB file. 2. If the file is proper, replace the USB cable and
check again. 3. Replace the CDU main board if the same symptom recurs.
4001600 Note DB Encryption failed. 1. Turn the power off and on and check the DB file. 2. If the file is proper, replace the USB cable and
check again. 3. Replace the CDU main board if the same symptom recurs.
4001700 Download file(EP) is not correct. 1. Download proper EP Binary file.
4002300 USB CRC error. 1. Turn the power off and on and check that it operates normally. 2. If it does not, replace the USB cable and check again. 3. Replace the CDU main board if the same symptom recurs.
4002400 Encryption of communication message failed. 1. Check the communication cable and perform the initialization. 2. Update SP, VDM, TM, and EP.
4002500 Unspecified CMD. 1. Turn the power off and on and check that it operates normally. 2. Check the final version of SP and EP, and update
if necessary.
4002600 Unspecified SubCMD. 1. Turn the power off and on and check that it operates normally. 2. Check the final version of SP and EP, and update if necessary
- HYOSUNG ATM Specification
| NAUTILUS HYOSUNG ATM parts list | |||||
| ROW1 | PARTNUMBER | Description | ROW2 | PARTNUMBER | Description |
| 1 | 7760000068 | PCBA:CST_PP:CDU10 | 43 | S7307000094 | UP_KIT: SUB_ASSY:MOLD_ENT |
| 2 | 7710000023 | PCBA:BDM SUB BD | 44 | S7307000267 | UP_KIT:SUB_ASSY:UNIT_BNA_BUNDL |
| 3 | S7760000054 | UP-KIT:UNIT:BRM:ASSY.TE | 45 | S7307000263 | UP_KIT:SUB_ASSY:REJECT_BNA |
| 4 | 47042701 | KEY-ASSY:V-BRM | 46 | 3281000244 | CABLE_ASSY:UNIT_POS_SW:BNA |
| 5 | S7430001446 | UP_KIT:SUB-ASSY:UNIT:BRM20-BMU | 47 | 2168000030 | SENSOR:RPU8702CP_OKAYA |
| 6 | S7430001447 | UP_KIT:SUB_ASSY:UNIT:BRM20_BMD | 48 | 2168000051 | KIS_9002C_TR:C_RAN NK:YELLOW |
| 7 | S5611000195 | UP_KIT:PCBA:M170EG01:17INCH:CCFL:AUO | 49 | 3281000243 | CABLE_ASSY:BOX_POS_SW:BNA |
| 8 | 7430000809 | UP_KIT:SUB_ASSY:REEL_UPPER_TAPE | 50 | 2168000053 | KIS_9002C_TR:C_RAN NK:RED |
| 9 | 7430000805 | UP_KIT:SUB_ASSY:REEL_LOWER_TAPE | 51 | 4420000065 | PLATE_MOLD:OPEN_BNA |
| 10 | 7000000226 | UP_KIT:UNIT:BILL CHECKER (B CU24) | 52 | 4370000784 | K-ASSY_MOLD:UCM_COVER:MX-7600 |
| 11 | 5611000125 | UP_KIT:PCBA:NCM-V05F-2:USB CAM | 53 | 2168000055 | KIS_9002C_TR:A_RANK:WHITE |
| 12 | 7760000093 | UP_KIT:PCBA:BRM20 RBU B/D | 54 | 2168000052 | KIS_9001C_LED:B_RANK:RED |
| 13 | 5659000024 | T/S:TOUCH PANEL:T101IS-5RB001X:HIGGSTEC | 55 | 4933000114 | WINDOW_ACRYL:MIRROR_SIDE:MX-7600 |
| 14 | 7000000192 | UNIT:BRM20 RC_164 (RECYCLING CASSETTE) | 56 | 7490000019 | PCBA:NEC4PORT:USB:HUB:B/D:HIGH SPEED |
| 15 | S4350000597 | GEAR:OD28ID06_KNOB | 57 | 7111000011 | UNIT:P/L:HPS500-ACDB:MX-7600T |
| 16 | S4251000004 | SHAFT:GATE_BLADE_DEG20_CST | 58 | 4370000678 | K-ASSY_MOLD:COVER-BARCODE:MX-7600T IR |
| 17 | S4360000706 | GUIDE:GATE_BLADE_DE20_BC_2 | 59 | 4370001121 | UP-KIT:SUB-ASSY:REEL1 |
| 18 | S4360000726 | GUIDE:GATE_BLADE_DEG20_UTB_D | 60 | 4370001122 | UP-KIT:SUB-ASSY:REEL2 |
| 19 | S4360000727 | GUIDE:GATE_BLADE_DEG20_UTB_U | 61 | 3281000248 | CABLE ASSY:BNA BC ENCODER |
| 20 | S4360000728 | GUIDE:GATE_BLADE_3WAY | 62 | 5637000009 | MICRO CLUTCH:BL-2.5-198 |
| 21 | S7760000092 | PCBA:BRM20 MAIN B/D | 63 | 4240000020 | KEY SET ASSY:1 SET/ I KEY |
| 22 | S7760000094 | PCBA:BRM20 CSM B/D | 64 | 7307000184 | SUB_ASSY:RT_CASSETTE |
| 23 | S4380000032 | KNOB:MOLD_KNOB_BRM20 | 65 | 7020000025 | UP_KIT:UNIT:K-SPR8 |
| 24 | S7660000015 | PCBA:HBRM ID | 66 | 7111000012 | UP_KIT:UNIT:DC/DC:HPS200-FCE(TG):MX-7600 |
| 25 | S4430000404 | PULLEY:CLUTCH_KNOB | 67 | 7307000026 | UP_KIT:ASSY:DRIVE MODULE 01 |
| 26 | S7760000095 | PCBA:BRM20 RC B/D | 68 | 7090000208 | UP_KIT:UNIT:CE:MX-7600T:L440:N |
| 27 | S7000000183 | UNIT:BRM20_UNIT_CSM | 69 | 7307000209 | UP_KIT:SUB_ASSY:MULTI_CURRENCY |
| 28 | S2168000050 | KIS-9001C_LED:C_RANK:YELLOW | 70 | 7307000222 | UP_KIT:SUB_ASSY:ESCROW |
| 29 | S2168000054 | KIS-9001C_LED:A_RANK:WHITE | 71 | 4930000052 | RAIL:CEB560(26-37):DRIVE-UP |
| 30 | S2168000068 | OJ-461-N23 ( KIT 5039C ) | 72 | 5611000118 | PCBA:TG_PC:MAINBOARD:ECS_EG31M |
| 31 | S2168000077 | SENSOR_DD_KIS-9010C_LED | 73 | 7760000054 | PCBA:BNA_ MAIN |
| 32 | S2168000078 | SENSOR_DD_KIS-9011C_DIODE | 74 | 7900000929 | UP-KIT:SUB:MOTOR 23KM 03 |
| 33 | S32127902 | CABLE_ASSY:DOOR_SENSOR:GIRO | 75 | 7900000927 | UP-KIT:ASSY:MOTOR 23KM 01 |
| 34 | S7760000098 | PCBA:BRM20_Shutter | 76 | 7900000928 | UP-KIT.ASSY:MOTOR 23KM 02 |
| 35 | S7200000890 | UP_KIT:SUB_ASSY:COLLAR_WING:MX87000T_NG | 77 | 7900000930 | UP_KIT:ASSY:MOTOR ESCROW |
| 36 | S4380000031 | KNOB:MOLD_D45X7H_BMD | 78 | 7900000931 | UP_KITT:SUB-ASSY:CLUTCH-HS1130 |
| 37 | S7490000022 | PCBA:DUAL_USB-HUB:FULL SPEED | 79 | 7900000932 | UP_KIT:ASSY:SOL-GATE-5 |
| 38 | 7710000023 | PCBA:BDM Sub B/D | 80 | 7900000933 | UP-KIT:ASSY:SOL-GATE |
| 39 | S5623000001 | UP_KIT:INVERTER:AT-0150LG BIS | 81 | 7900000935 | UP-KIT:SUB_ASSY:DRIVE MODULE RTCST |
| 40 | 3266000214 | CABLE_ASSY_SHU:MOD SWITCH:MCD-10 | 82 | S2101000165 | NEC 4 PORT USB HUB |
| 41 | S7307000061 | DRIVE MODULE 02 | 83 | S3266002121 | CABLE_ASSY_SYS:MODE SWITCH 1/ |
| 42 | 3205000027 | CABLE_ASSY_CDU:1,2CST SENSOR 1/F | 84 | S45100508 | BEARING:L-136022 |
