Note Seperator Nautilus Hyosung ATM Parts S7310000386 1st And 2nd Feed Module
Price:
negotiable
MOQ:
1pc
Delivery Time:
1day
Brand:
Nautilus Hyosung
Product Description

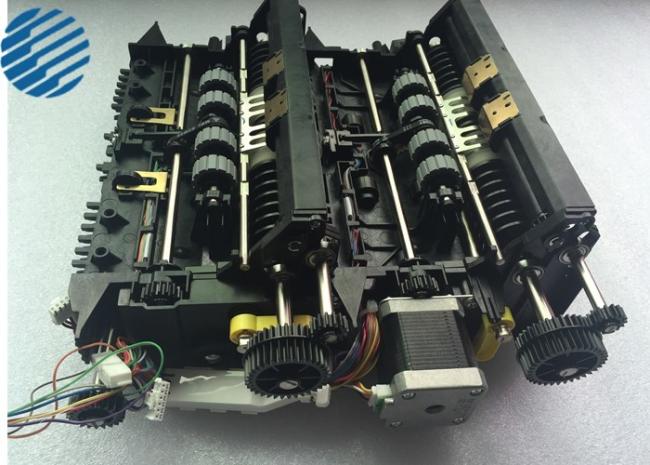

S7310000386 HYOSUNG ATM 1ST AND 2ND FEED MODULE NOTE SEPERATOR
S7310000386 HYOSUNG ATM 1ST AND 2ND FEED MODULE NOTE SEPERATOR
- Error Code List for MX5600 NH
400E100 HS501 JAM - JAM Task. 1. Open SF56 and remove the jam from the pick-up control part.2. Check the HS501 Sensor cable.
3. Clean the sensor section and conduct autodimming. (Automatically run during initialization)
400E200 HS401 JAM - JAM Task. 1. Open SF34 and remove the jam from the pick-up control part.2. Check the HS401 Sensor cable.
3. Clean the sensor section and conduct autodimming. (Automatically run during initialization)
400E300 HS301 JAM - JAM Task. 1. Open SF34 and remove the jam from the pick-up control part.2. Check the HS301 Sensor cable.
3. Clean the sensor section and conduct autodimming. (Automatically run during initialization)
400E400 HS201 JAM - JAM Task. 1. Open SF12 and remove the jam from the pick-upcontrol part.2. Check the HS201 Sensor cable.
3. Clean the sensor section and conduct autodimming. (Automatically run during initialization)
400E500 HS101 JAM - JAM Task. 1. Open SF12 and remove the jam from the pick-upcontrol part.2. Check the HS101 Sensor cable.
3. Clean the sensor section and conduct autodimming. (Automatically run during initialization)
400E600 HS003A JAM - JAM Task. 1. Open the double detecting sensor guide andremove the jam.2. Check the HS003A Sensor cable.
3. Clean the sensor section and conduct autodimming. (Automatically run during initialization)
400E700 HS003B JAM - JAM Task. 1. Open the double detecting sensor guide andremove the jam.2. Check the HS003B Sensor cable.
3. Clean the sensor section and conduct autodimming. (Automatically run during initialization)
- HYOSUNG ATM Specification
| NAUTILUS HYOSUNG ATM parts list | |||||
| ROW1 | PARTNUMBER | Description | ROW2 | PARTNUMBER | Description |
| 1 | 7760000068 | PCBA:CST_PP:CDU10 | 43 | S7307000094 | UP_KIT: SUB_ASSY:MOLD_ENT |
| 2 | 7710000023 | PCBA:BDM SUB BD | 44 | S7307000267 | UP_KIT:SUB_ASSY:UNIT_BNA_BUNDL |
| 3 | S7760000054 | UP-KIT:UNIT:BRM:ASSY.TE | 45 | S7307000263 | UP_KIT:SUB_ASSY:REJECT_BNA |
| 4 | 47042701 | KEY-ASSY:V-BRM | 46 | 3281000244 | CABLE_ASSY:UNIT_POS_SW:BNA |
| 5 | S7430001446 | UP_KIT:SUB-ASSY:UNIT:BRM20-BMU | 47 | 2168000030 | SENSOR:RPU8702CP_OKAYA |
| 6 | S7430001447 | UP_KIT:SUB_ASSY:UNIT:BRM20_BMD | 48 | 2168000051 | KIS_9002C_TR:C_RAN NK:YELLOW |
| 7 | S5611000195 | UP_KIT:PCBA:M170EG01:17INCH:CCFL:AUO | 49 | 3281000243 | CABLE_ASSY:BOX_POS_SW:BNA |
| 8 | 7430000809 | UP_KIT:SUB_ASSY:REEL_UPPER_TAPE | 50 | 2168000053 | KIS_9002C_TR:C_RAN NK:RED |
| 9 | 7430000805 | UP_KIT:SUB_ASSY:REEL_LOWER_TAPE | 51 | 4420000065 | PLATE_MOLD:OPEN_BNA |
| 10 | 7000000226 | UP_KIT:UNIT:BILL CHECKER (B CU24) | 52 | 4370000784 | K-ASSY_MOLD:UCM_COVER:MX-7600 |
| 11 | 5611000125 | UP_KIT:PCBA:NCM-V05F-2:USB CAM | 53 | 2168000055 | KIS_9002C_TR:A_RANK:WHITE |
| 12 | 7760000093 | UP_KIT:PCBA:BRM20 RBU B/D | 54 | 2168000052 | KIS_9001C_LED:B_RANK:RED |
| 13 | 5659000024 | T/S:TOUCH PANEL:T101IS-5RB001X:HIGGSTEC | 55 | 4933000114 | WINDOW_ACRYL:MIRROR_SIDE:MX-7600 |
| 14 | 7000000192 | UNIT:BRM20 RC_164 (RECYCLING CASSETTE) | 56 | 7490000019 | PCBA:NEC4PORT:USB:HUB:B/D:HIGH SPEED |
| 15 | S4350000597 | GEAR:OD28ID06_KNOB | 57 | 7111000011 | UNIT:P/L:HPS500-ACDB:MX-7600T |
| 16 | S4251000004 | SHAFT:GATE_BLADE_DEG20_CST | 58 | 4370000678 | K-ASSY_MOLD:COVER-BARCODE:MX-7600T IR |
| 17 | S4360000706 | GUIDE:GATE_BLADE_DE20_BC_2 | 59 | 4370001121 | UP-KIT:SUB-ASSY:REEL1 |
| 18 | S4360000726 | GUIDE:GATE_BLADE_DEG20_UTB_D | 60 | 4370001122 | UP-KIT:SUB-ASSY:REEL2 |
| 19 | S4360000727 | GUIDE:GATE_BLADE_DEG20_UTB_U | 61 | 3281000248 | CABLE ASSY:BNA BC ENCODER |
| 20 | S4360000728 | GUIDE:GATE_BLADE_3WAY | 62 | 5637000009 | MICRO CLUTCH:BL-2.5-198 |
| 21 | S7760000092 | PCBA:BRM20 MAIN B/D | 63 | 4240000020 | KEY SET ASSY:1 SET/ I KEY |
| 22 | S7760000094 | PCBA:BRM20 CSM B/D | 64 | 7307000184 | SUB_ASSY:RT_CASSETTE |
| 23 | S4380000032 | KNOB:MOLD_KNOB_BRM20 | 65 | 7020000025 | UP_KIT:UNIT:K-SPR8 |
| 24 | S7660000015 | PCBA:HBRM ID | 66 | 7111000012 | UP_KIT:UNIT:DC/DC:HPS200-FCE(TG):MX-7600 |
| 25 | S4430000404 | PULLEY:CLUTCH_KNOB | 67 | 7307000026 | UP_KIT:ASSY:DRIVE MODULE 01 |
| 26 | S7760000095 | PCBA:BRM20 RC B/D | 68 | 7090000208 | UP_KIT:UNIT:CE:MX-7600T:L440:N |
| 27 | S7000000183 | UNIT:BRM20_UNIT_CSM | 69 | 7307000209 | UP_KIT:SUB_ASSY:MULTI_CURRENCY |
| 28 | S2168000050 | KIS-9001C_LED:C_RANK:YELLOW | 70 | 7307000222 | UP_KIT:SUB_ASSY:ESCROW |
| 29 | S2168000054 | KIS-9001C_LED:A_RANK:WHITE | 71 | 4930000052 | RAIL:CEB560(26-37):DRIVE-UP |
| 30 | S2168000068 | OJ-461-N23 ( KIT 5039C ) | 72 | 5611000118 | PCBA:TG_PC:MAINBOARD:ECS_EG31M |
| 31 | S2168000077 | SENSOR_DD_KIS-9010C_LED | 73 | 7760000054 | PCBA:BNA_ MAIN |
| 32 | S2168000078 | SENSOR_DD_KIS-9011C_DIODE | 74 | 7900000929 | UP-KIT:SUB:MOTOR 23KM 03 |
| 33 | S32127902 | CABLE_ASSY:DOOR_SENSOR:GIRO | 75 | 7900000927 | UP-KIT:ASSY:MOTOR 23KM 01 |
| 34 | S7760000098 | PCBA:BRM20_Shutter | 76 | 7900000928 | UP-KIT.ASSY:MOTOR 23KM 02 |
| 35 | S7200000890 | UP_KIT:SUB_ASSY:COLLAR_WING:MX87000T_NG | 77 | 7900000930 | UP_KIT:ASSY:MOTOR ESCROW |
| 36 | S4380000031 | KNOB:MOLD_D45X7H_BMD | 78 | 7900000931 | UP_KITT:SUB-ASSY:CLUTCH-HS1130 |
| 37 | S7490000022 | PCBA:DUAL_USB-HUB:FULL SPEED | 79 | 7900000932 | UP_KIT:ASSY:SOL-GATE-5 |
| 38 | 7710000023 | PCBA:BDM Sub B/D | 80 | 7900000933 | UP-KIT:ASSY:SOL-GATE |
| 39 | S5623000001 | UP_KIT:INVERTER:AT-0150LG BIS | 81 | 7900000935 | UP-KIT:SUB_ASSY:DRIVE MODULE RTCST |
| 40 | 3266000214 | CABLE_ASSY_SHU:MOD SWITCH:MCD-10 | 82 | S2101000165 | NEC 4 PORT USB HUB |
| 41 | S7307000061 | DRIVE MODULE 02 | 83 | S3266002121 | CABLE_ASSY_SYS:MODE SWITCH 1/ |
| 42 | 3205000027 | CABLE_ASSY_CDU:1,2CST SENSOR 1/F | 84 | S45100508 | BEARING:L-136022 |
- Pics detail
