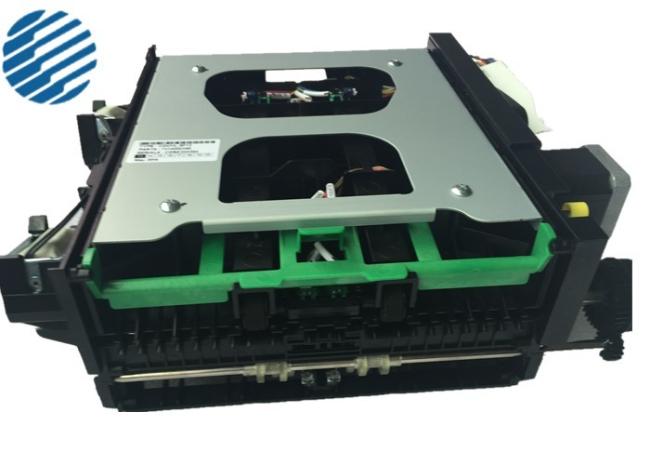

S7430000255 HYOSUNG ATM 3RD AND 4TH FEED MODULE NOTE SEPERATOR
Price:
negotiable
MOQ:
1pc
Delivery Time:
1day
Brand:
Nautilus Hyosung
Product Description
S7430000255 HYOSUNG ATM 3RD AND 4TH FEED MODULE NOTE SEPERATOR
S7430000255 HYOSUNG ATM 3RD AND 4TH FEED MODULE NOTE SEPERATOR
- Error Code List for MX5600 NH
400E800 HS002A JAM - JAM Task. 1. Open the double detecting sensor guide andremove the jam.2. Check the HS002A Sensor cable.
3. Clean the sensor part.
400E900 HS002B JAM - JAM Task. 1. Open the double detecting sensor guide andremove the jam.2. Check the HS002B Sensor cable.3. Clean the sensor part.
400EA00 HS001 JAM. 1. Remove the jam from the Reject Gate.2. Check the HS001 Sensor cable.3. Clean the sensor part.
400EB00 HS004 JAM. 1. Remove the jam from the entrance of the reject box.2. Check the HS004 Sensor cable.3. Clean the sensor part.
400EC00 HS001 Light JAM. 1. Open the double detecting sensor guide and reject guide section and remove the jam.2. Check the reject gate and HS001 for anything protruding from them and make adjustment ifnecessary.3. Check the tension of the moving path.4. Clean the moving path.
400ED00 HS004 Light JAM. 1. Open the double detecting sensor guide and reject guide section and remove the jam. 2. Remove the jam from the reject and retract path.3. Check the reject gate and HS001 for anythingprotruding from them and make adjustment if necessary.
4. Check the tension of the moving path. 5. Clean the moving path.
- HYOSUNG ATM Specification
| NAUTILUS HYOSUNG ATM parts list | |||||
| ROW1 | PARTNUMBER | Description | ROW2 | PARTNUMBER | Description |
| 1 | 7760000068 | PCBA:CST_PP:CDU10 | 43 | S7307000094 | UP_KIT: SUB_ASSY:MOLD_ENT |
| 2 | 7710000023 | PCBA:BDM SUB BD | 44 | S7307000267 | UP_KIT:SUB_ASSY:UNIT_BNA_BUNDL |
| 3 | S7760000054 | UP-KIT:UNIT:BRM:ASSY.TE | 45 | S7307000263 | UP_KIT:SUB_ASSY:REJECT_BNA |
| 4 | 47042701 | KEY-ASSY:V-BRM | 46 | 3281000244 | CABLE_ASSY:UNIT_POS_SW:BNA |
| 5 | S7430001446 | UP_KIT:SUB-ASSY:UNIT:BRM20-BMU | 47 | 2168000030 | SENSOR:RPU8702CP_OKAYA |
| 6 | S7430001447 | UP_KIT:SUB_ASSY:UNIT:BRM20_BMD | 48 | 2168000051 | KIS_9002C_TR:C_RAN NK:YELLOW |
| 7 | S5611000195 | UP_KIT:PCBA:M170EG01:17INCH:CCFL:AUO | 49 | 3281000243 | CABLE_ASSY:BOX_POS_SW:BNA |
| 8 | 7430000809 | UP_KIT:SUB_ASSY:REEL_UPPER_TAPE | 50 | 2168000053 | KIS_9002C_TR:C_RAN NK:RED |
| 9 | 7430000805 | UP_KIT:SUB_ASSY:REEL_LOWER_TAPE | 51 | 4420000065 | PLATE_MOLD:OPEN_BNA |
| 10 | 7000000226 | UP_KIT:UNIT:BILL CHECKER (B CU24) | 52 | 4370000784 | K-ASSY_MOLD:UCM_COVER:MX-7600 |
| 11 | 5611000125 | UP_KIT:PCBA:NCM-V05F-2:USB CAM | 53 | 2168000055 | KIS_9002C_TR:A_RANK:WHITE |
| 12 | 7760000093 | UP_KIT:PCBA:BRM20 RBU B/D | 54 | 2168000052 | KIS_9001C_LED:B_RANK:RED |
| 13 | 5659000024 | T/S:TOUCH PANEL:T101IS-5RB001X:HIGGSTEC | 55 | 4933000114 | WINDOW_ACRYL:MIRROR_SIDE:MX-7600 |
| 14 | 7000000192 | UNIT:BRM20 RC_164 (RECYCLING CASSETTE) | 56 | 7490000019 | PCBA:NEC4PORT:USB:HUB:B/D:HIGH SPEED |
| 15 | S4350000597 | GEAR:OD28ID06_KNOB | 57 | 7111000011 | UNIT:P/L:HPS500-ACDB:MX-7600T |
| 16 | S4251000004 | SHAFT:GATE_BLADE_DEG20_CST | 58 | 4370000678 | K-ASSY_MOLD:COVER-BARCODE:MX-7600T IR |
| 17 | S4360000706 | GUIDE:GATE_BLADE_DE20_BC_2 | 59 | 4370001121 | UP-KIT:SUB-ASSY:REEL1 |
| 18 | S4360000726 | GUIDE:GATE_BLADE_DEG20_UTB_D | 60 | 4370001122 | UP-KIT:SUB-ASSY:REEL2 |
| 19 | S4360000727 | GUIDE:GATE_BLADE_DEG20_UTB_U | 61 | 3281000248 | CABLE ASSY:BNA BC ENCODER |
| 20 | S4360000728 | GUIDE:GATE_BLADE_3WAY | 62 | 5637000009 | MICRO CLUTCH:BL-2.5-198 |
| 21 | S7760000092 | PCBA:BRM20 MAIN B/D | 63 | 4240000020 | KEY SET ASSY:1 SET/ I KEY |
| 22 | S7760000094 | PCBA:BRM20 CSM B/D | 64 | 7307000184 | SUB_ASSY:RT_CASSETTE |
| 23 | S4380000032 | KNOB:MOLD_KNOB_BRM20 | 65 | 7020000025 | UP_KIT:UNIT:K-SPR8 |
| 24 | S7660000015 | PCBA:HBRM ID | 66 | 7111000012 | UP_KIT:UNIT:DC/DC:HPS200-FCE(TG):MX-7600 |
| 25 | S4430000404 | PULLEY:CLUTCH_KNOB | 67 | 7307000026 | UP_KIT:ASSY:DRIVE MODULE 01 |
| 26 | S7760000095 | PCBA:BRM20 RC B/D | 68 | 7090000208 | UP_KIT:UNIT:CE:MX-7600T:L440:N |
| 27 | S7000000183 | UNIT:BRM20_UNIT_CSM | 69 | 7307000209 | UP_KIT:SUB_ASSY:MULTI_CURRENCY |
| 28 | S2168000050 | KIS-9001C_LED:C_RANK:YELLOW | 70 | 7307000222 | UP_KIT:SUB_ASSY:ESCROW |
| 29 | S2168000054 | KIS-9001C_LED:A_RANK:WHITE | 71 | 4930000052 | RAIL:CEB560(26-37):DRIVE-UP |
| 30 | S2168000068 | OJ-461-N23 ( KIT 5039C ) | 72 | 5611000118 | PCBA:TG_PC:MAINBOARD:ECS_EG31M |
| 31 | S2168000077 | SENSOR_DD_KIS-9010C_LED | 73 | 7760000054 | PCBA:BNA_ MAIN |
| 32 | S2168000078 | SENSOR_DD_KIS-9011C_DIODE | 74 | 7900000929 | UP-KIT:SUB:MOTOR 23KM 03 |
| 33 | S32127902 | CABLE_ASSY:DOOR_SENSOR:GIRO | 75 | 7900000927 | UP-KIT:ASSY:MOTOR 23KM 01 |
| 34 | S7760000098 | PCBA:BRM20_Shutter | 76 | 7900000928 | UP-KIT.ASSY:MOTOR 23KM 02 |
| 35 | S7200000890 | UP_KIT:SUB_ASSY:COLLAR_WING:MX87000T_NG | 77 | 7900000930 | UP_KIT:ASSY:MOTOR ESCROW |
| 36 | S4380000031 | KNOB:MOLD_D45X7H_BMD | 78 | 7900000931 | UP_KITT:SUB-ASSY:CLUTCH-HS1130 |
| 37 | S7490000022 | PCBA:DUAL_USB-HUB:FULL SPEED | 79 | 7900000932 | UP_KIT:ASSY:SOL-GATE-5 |
| 38 | 7710000023 | PCBA:BDM Sub B/D | 80 | 7900000933 | UP-KIT:ASSY:SOL-GATE |
| 39 | S5623000001 | UP_KIT:INVERTER:AT-0150LG BIS | 81 | 7900000935 | UP-KIT:SUB_ASSY:DRIVE MODULE RTCST |
| 40 | 3266000214 | CABLE_ASSY_SHU:MOD SWITCH:MCD-10 | 82 | S2101000165 | NEC 4 PORT USB HUB |
| 41 | S7307000061 | DRIVE MODULE 02 | 83 | S3266002121 | CABLE_ASSY_SYS:MODE SWITCH 1/ |
| 42 | 3205000027 | CABLE_ASSY_CDU:1,2CST SENSOR 1/F | 84 | S45100508 | BEARING:L-136022 |
