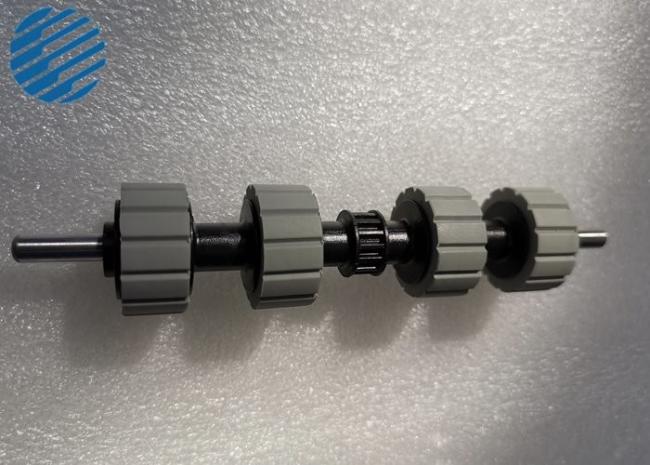

S7310000405 HYOSUNG ATM Parts NOTE SEPARATE ROLLER 7310000405
Price:
negotiable
MOQ:
1pc
Delivery Time:
1day
Brand:
Nautilus Hyosung
Product Description
S7310000405 HYOSUNG ATM Parts NOTE SEPARATE ROLLER 7310000405
S7310000405 HYOSUNG ATM Parts NOTE SEPARATE ROLLER 7310000405
- Error Code List for MX5600 NH
400E800 HS002A JAM - JAM Task. 1. Open the double detecting sensor guide andremove the jam.2. Check the HS002A Sensor cable.
3. Clean the sensor part.
400E900 HS002B JAM - JAM Task. 1. Open the double detecting sensor guide andremove the jam.2. Check the HS002B Sensor cable.3. Clean the sensor part.
400EA00 HS001 JAM. 1. Remove the jam from the Reject Gate.2. Check the HS001 Sensor cable.3. Clean the sensor part.
400EB00 HS004 JAM. 1. Remove the jam from the entrance of the reject box.2. Check the HS004 Sensor cable.3. Clean the sensor part.
400EC00 HS001 Light JAM. 1. Open the double detecting sensor guide and reject guide section and remove the jam.2. Check the reject gate and HS001 for anything protruding from them and make adjustment ifnecessary.3. Check the tension of the moving path.4. Clean the moving path.
400ED00 HS004 Light JAM. 1. Open the double detecting sensor guide and reject guide section and remove the jam. 2. Remove the jam from the reject and retract path.3. Check the reject gate and HS001 for anythingprotruding from them and make adjustment if necessary.
4. Check the tension of the moving path. 5. Clean the moving path.
- HYOSUNG ATM Specification
| NAUTILUS HYOSUNG ATM parts list | |||||
| ROW2 | PARTNUMBER | Description | ROW3 | PARTNUMBER | Description |
| 43 | S7307000094 | UP_KIT: SUB_ASSY:MOLD_ENT | 1 | 7760000067 | PCBA:CST_M:CDU10 |
| 44 | S7307000267 | UP_KIT:SUB_ASSY:UNIT_BNA_BUNDL | 2 | 7430000242 | UNIT_SUB_ASSY:SOL_SF |
| 45 | S7307000263 | UP_KIT:SUB_ASSY:REJECT_BNA | 3 | 4820000027 | BELT:T_BELT_W04L96_S3M |
| 46 | 3281000244 | CABLE_ASSY:UNIT_POS_SW:BNA | 4 | 4820000028 | BELT:T_BELT_W08L516_S3M |
| 47 | 2168000030 | SENSOR:RPU8702CP_OKAYA | 5 | 7310000405 | SUB_ASSY:ROLLER_PICK_UP_SF |
| 48 | 2168000051 | KIS_9002C_TR:C_RAN NK:YELLOW | 6 | 7310000408 | SUB_ASSY:MOTOR_PICK_UP |
| 49 | 3281000243 | CABLE_ASSY:BOX_POS_SW:BNA | 7 | 4400000090 | LEVER:LOCK_GUIDE_OUT_FM |
| 50 | 2168000053 | KIS_9002C_TR:C_RAN NK:RED | 8 | 4400000091 | LEVER:FIT_SF_LOCK |
| 51 | 4420000065 | PLATE_MOLD:OPEN_BNA | 9 | 7430000445 | UNIT_SUB_ASSY:NOTE_SEPA_SF5 |
| 52 | 4370000784 | K-ASSY_MOLD:UCM_COVER:MX-7600 | 10 | 4380000027 | MOLD:KNOB_CAP_CST |
| 53 | 2168000055 | KIS_9002C_TR:A_RANK:WHITE | 11 | 4500000679 | MOLD:HINGE_CAP_CST |
| 54 | 2168000052 | KIS_9001C_LED:B_RANK:RED | 12 | 5611000166 | PCBA:TOUCH CON:RES-05CUA_R20:RES:USB:S&T |
| 55 | 4933000114 | WINDOW_ACRYL:MIRROR_SIDE:MX-7600 | 13 | 5659000024 | T/S:TOUCH PANEL:T101IS-5RB001X:HIGGSTEC |
| 56 | 7490000019 | PCBA:NEC4PORT:USB:HUB:B/D:HIGH SPEED | 14 | 5611000268 | PCBA:AD_BD:NT101_VGA:10.1INCH:NEOTECH |
| 57 | 7111000011 | UNIT:P/L:HPS500-ACDB:MX-7600T | 15 | 7650000034 | PCBA:AD GENESIS_ASSY_OSD B/D:SMALL SIZE |
| 58 | 4370000678 | K-ASSY_MOLD:COVER-BARCODE:MX-7600T IR | 16 | 7110000025 | UNIT:SPL:10.1INCH:MX8200T |
| 59 | 4370001121 | UP-KIT:SUB-ASSY:REEL1 | 17 | 5621000034 | UNIT:P/S:750W:HPS750-BATMI |
| 60 | 4370001122 | UP-KIT:SUB-ASSY:REEL2 | 18 | 5645000019 | UNIT:MCU:ICT3Q8-3A2294:SANKYO:M_driven |
| 61 | 3281000248 | CABLE ASSY:BNA BC ENCODER | 19 | 7000000229 | UNIT:BRM20R-L124MG1HT-00 |
| 62 | 5637000009 | MICRO CLUTCH:BL-2.5-198 | 20 | 7010000209 | UNIT:CDU10_5CST_REAR_AUTO |
| 63 | 4240000020 | KEY SET ASSY:1 SET/ I KEY | 21 | 7100000136 | UNIT:TILT_OPL_TC_NDC:MX_8200T |
| 64 | 7307000184 | SUB_ASSY:RT_CASSETTE | 22 | 7120000089 | UNIT:BRM20_SHUTTER:MX8000TA |
| 65 | 7020000025 | UP_KIT:UNIT:K-SPR8 | 23 | 7090000328 | UNIT:CE:FC_EX_G41:Core2duo:2GB:HDD1 |
| 66 | 7111000012 | UP_KIT:UNIT:DC/DC:HPS200-FCE(TG):MX-7600 | 24 | S5743000044 | PC:TG:H61:DualCore2.5G_G540:2GB:HDD1:ODD |
| 67 | 7307000026 | UP_KIT:ASSY:DRIVE MODULE 01 | 25 | 5611000125 | PCBA:NCM-V05F-2:USB CAMERA:THIRD:NAMUGA |
| 68 | 7090000208 | UP_KIT:UNIT:CE:MX-7600T:L440:N | 26 | 5611000126 | PCBA:NCM-V05F-2:USB CAMERA:SECOND:NAMUGA |
| 69 | 7307000209 | UP_KIT:SUB_ASSY:MULTI_CURRENCY | 27 | 7650000141 | PCBA:7PORT_SMSC_HS_USB_HUB_B/D:NH |
| 70 | 7307000222 | UP_KIT:SUB_ASSY:ESCROW | 28 | S7020000032 | UP_KIT:UNIT:L-SPR3:INDIA |
| 71 | 4930000052 | RAIL:CEB560(26-37):DRIVE-UP | 29 | S5665000003 | UP_KIT:VIDEO.CARD:HD7350:PCI-E |
| 72 | 5611000118 | PCBA:TG_PC:MAINBOARD:ECS_EG31M | 30 | S5693000025 | UP_KIT:HDD_3.5 INCH:SATA:320GB |
| 73 | 7760000054 | PCBA:BNA_ MAIN | 31 | S7310000733 | UP.KIT:SNB_ASSY:ESCROW (ASSY:CARRIAGE_ALL. ) |
| 74 | 7900000929 | UP-KIT:SUB:MOTOR 23KM 03 | 32 | S3250000019 | UP_KIT:CABLE_ ASSY_SHU:END SEN |
| 75 | 7900000927 | UP-KIT:ASSY:MOTOR 23KM 01 | 33 | S1010000055 | UP_KIT:CPU:DUAL CORE:E5700:LGA |
| 76 | 7900000928 | UP-KIT.ASSY:MOTOR 23KM 02 | 34 | S3266000992 | UP_KIT:CABLE _ASSY:SYS:MULTI PO |
| 77 | 7900000930 | UP_KIT:ASSY:MOTOR ESCROW | 35 | S7090000310 | UP_KIT UNIT:FC_EX_G41:EX_G41:E5700:2G |
| 78 | 7900000931 | UP_KITT:SUB-ASSY:CLUTCH-HS1130 | 36 | S7090000149 | UP_KITUNIT:CE:IG SAMBO:MX 560 |
| 79 | 7900000932 | UP_KIT:ASSY:SOL-GATE-5 | 37 | S7307000177 | UP_KIT:SUB_ASSY:CST_NH_WW |
| 80 | 7900000933 | UP-KIT:ASSY:SOL-GATE | 38 | S56721401 | UP_KIT:PRINT:MDP_350:DOT_9WIRE |
| 81 | 7900000935 | UP-KIT:SUB_ASSY:DRIVE MODULE RTCST | 39 | S7310000709 | UP_KIT: ASSY:MB |
| 82 | S2101000165 | NEC 4 PORT USB HUB | 40 | S5621000002 | P/S:HPS250-GTTW:MX-7100T:TURKEY |
| 83 | S3266002121 | CABLE_ASSY_SYS:MODE SWITCH 1/ | 41 | S4520000535 | UP_KIT:K-ASSY:PAPER_TAKE_SH_D322-MECH07 |
| 84 | S45100508 | BEARING:L-136022 | 42 | 3205000028 | CABLE_ASSY_CDU:3,4 CST SENSOR 1/F |
- Pics detail
