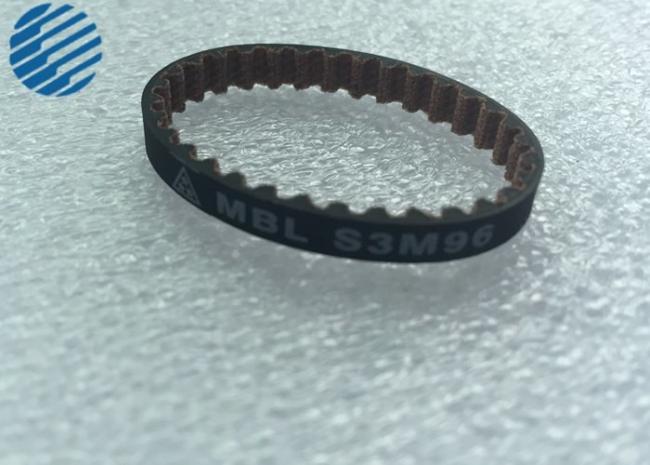

S7430000255 HYOSUNG ATM Parts Note Separator Belt S3M96 S7310000386
Price:
negotiable
MOQ:
1pc
Delivery Time:
1day
Brand:
Nautilus Hyosung
Product Description
S7430000255 HYOSUNG ATM Parts Note Separator Belt S3M96 S7310000386
S7430000255 HYOSUNG ATM Parts Note Separator Belt S3M96 S7310000386
- NH MX5600ST ATM
Absolute Reliability. The Monimax 5600ST is designed to provide second to none reliability in the market with the highest uptime (99.7% or higher) and optimized dispensing performance. It is equipped with the most reliable components including a higher capacity Cash Dispenser Unit, faster dispensing technology and robust system design and configuration against vandalism. The best in class dispensing technology of the Monimax 5600ST guarantees maximum availability and security.
System Platform · Microsoft Windows 10 · Hyosung Moniplus™ XFS Customer Interface · 15 inch display with touch screen (Sunlight viewable optional) · 4 x 2 Function Keys (optional) · 10.1 inch Supervisor module · Lead-through Indicator · Overhead Illumination · PIN Pad – PCI compliant · Card Reader – EMV Ready (Dip or motorized optional) ·Contactless card reader (Integrated NFC reader via card, smartphone or smartwatch) · Audio – speaker / earphone jack;Cash Dispenser - Maximum fill level 346mm per cassettes - Configurable denomination - Up to 4 cassettes - Bundle present / retract - Dispense up to 50 notes per transaction;· Security:Safe : UL291 Level 1 (CEN optional) · Lock : Electronic lock, Mechanical combination lock · Sensor : Alarm (Heat & Seismic), Door sensor · Privacy filter · Anti skimming, Anti card trapping, Anti shimming, Anti cash trapping · Security camera (Face & Hand) · MoniGuard endpoint security software
- HYOSUNG ATM Specification
| NAUTILUS HYOSUNG ATM parts list | |||||
| ROW1 | PARTNUMBER | Description | ROW2 | PARTNUMBER | Description |
| 1 | 7760000068 | PCBA:CST_PP:CDU10 | 43 | S7307000094 | UP_KIT: SUB_ASSY:MOLD_ENT |
| 2 | 7710000023 | PCBA:BDM SUB BD | 44 | S7307000267 | UP_KIT:SUB_ASSY:UNIT_BNA_BUNDL |
| 3 | S7760000054 | UP-KIT:UNIT:BRM:ASSY.TE | 45 | S7307000263 | UP_KIT:SUB_ASSY:REJECT_BNA |
| 4 | 47042701 | KEY-ASSY:V-BRM | 46 | 3281000244 | CABLE_ASSY:UNIT_POS_SW:BNA |
| 5 | S7430001446 | UP_KIT:SUB-ASSY:UNIT:BRM20-BMU | 47 | 2168000030 | SENSOR:RPU8702CP_OKAYA |
| 6 | S7430001447 | UP_KIT:SUB_ASSY:UNIT:BRM20_BMD | 48 | 2168000051 | KIS_9002C_TR:C_RAN NK:YELLOW |
| 7 | S5611000195 | UP_KIT:PCBA:M170EG01:17INCH:CCFL:AUO | 49 | 3281000243 | CABLE_ASSY:BOX_POS_SW:BNA |
| 8 | 7430000809 | UP_KIT:SUB_ASSY:REEL_UPPER_TAPE | 50 | 2168000053 | KIS_9002C_TR:C_RAN NK:RED |
| 9 | 7430000805 | UP_KIT:SUB_ASSY:REEL_LOWER_TAPE | 51 | 4420000065 | PLATE_MOLD:OPEN_BNA |
| 10 | 7000000226 | UP_KIT:UNIT:BILL CHECKER (B CU24) | 52 | 4370000784 | K-ASSY_MOLD:UCM_COVER:MX-7600 |
| 11 | 5611000125 | UP_KIT:PCBA:NCM-V05F-2:USB CAM | 53 | 2168000055 | KIS_9002C_TR:A_RANK:WHITE |
| 12 | 7760000093 | UP_KIT:PCBA:BRM20 RBU B/D | 54 | 2168000052 | KIS_9001C_LED:B_RANK:RED |
| 13 | 5659000024 | T/S:TOUCH PANEL:T101IS-5RB001X:HIGGSTEC | 55 | 4933000114 | WINDOW_ACRYL:MIRROR_SIDE:MX-7600 |
| 14 | 7000000192 | UNIT:BRM20 RC_164 (RECYCLING CASSETTE) | 56 | 7490000019 | PCBA:NEC4PORT:USB:HUB:B/D:HIGH SPEED |
| 15 | S4350000597 | GEAR:OD28ID06_KNOB | 57 | 7111000011 | UNIT:P/L:HPS500-ACDB:MX-7600T |
| 16 | S4251000004 | SHAFT:GATE_BLADE_DEG20_CST | 58 | 4370000678 | K-ASSY_MOLD:COVER-BARCODE:MX-7600T IR |
| 17 | S4360000706 | GUIDE:GATE_BLADE_DE20_BC_2 | 59 | 4370001121 | UP-KIT:SUB-ASSY:REEL1 |
| 18 | S4360000726 | GUIDE:GATE_BLADE_DEG20_UTB_D | 60 | 4370001122 | UP-KIT:SUB-ASSY:REEL2 |
| 19 | S4360000727 | GUIDE:GATE_BLADE_DEG20_UTB_U | 61 | 3281000248 | CABLE ASSY:BNA BC ENCODER |
| 20 | S4360000728 | GUIDE:GATE_BLADE_3WAY | 62 | 5637000009 | MICRO CLUTCH:BL-2.5-198 |
| 21 | S7760000092 | PCBA:BRM20 MAIN B/D | 63 | 4240000020 | KEY SET ASSY:1 SET/ I KEY |
| 22 | S7760000094 | PCBA:BRM20 CSM B/D | 64 | 7307000184 | SUB_ASSY:RT_CASSETTE |
| 23 | S4380000032 | KNOB:MOLD_KNOB_BRM20 | 65 | 7020000025 | UP_KIT:UNIT:K-SPR8 |
| 24 | S7660000015 | PCBA:HBRM ID | 66 | 7111000012 | UP_KIT:UNIT:DC/DC:HPS200-FCE(TG):MX-7600 |
| 25 | S4430000404 | PULLEY:CLUTCH_KNOB | 67 | 7307000026 | UP_KIT:ASSY:DRIVE MODULE 01 |
| 26 | S7760000095 | PCBA:BRM20 RC B/D | 68 | 7090000208 | UP_KIT:UNIT:CE:MX-7600T:L440:N |
| 27 | S7000000183 | UNIT:BRM20_UNIT_CSM | 69 | 7307000209 | UP_KIT:SUB_ASSY:MULTI_CURRENCY |
| 28 | S2168000050 | KIS-9001C_LED:C_RANK:YELLOW | 70 | 7307000222 | UP_KIT:SUB_ASSY:ESCROW |
| 29 | S2168000054 | KIS-9001C_LED:A_RANK:WHITE | 71 | 4930000052 | RAIL:CEB560(26-37):DRIVE-UP |
| 30 | S2168000068 | OJ-461-N23 ( KIT 5039C ) | 72 | 5611000118 | PCBA:TG_PC:MAINBOARD:ECS_EG31M |
| 31 | S2168000077 | SENSOR_DD_KIS-9010C_LED | 73 | 7760000054 | PCBA:BNA_ MAIN |
| 32 | S2168000078 | SENSOR_DD_KIS-9011C_DIODE | 74 | 7900000929 | UP-KIT:SUB:MOTOR 23KM 03 |
| 33 | S32127902 | CABLE_ASSY:DOOR_SENSOR:GIRO | 75 | 7900000927 | UP-KIT:ASSY:MOTOR 23KM 01 |
| 34 | S7760000098 | PCBA:BRM20_Shutter | 76 | 7900000928 | UP-KIT.ASSY:MOTOR 23KM 02 |
| 35 | S7200000890 | UP_KIT:SUB_ASSY:COLLAR_WING:MX87000T_NG | 77 | 7900000930 | UP_KIT:ASSY:MOTOR ESCROW |
| 36 | S4380000031 | KNOB:MOLD_D45X7H_BMD | 78 | 7900000931 | UP_KITT:SUB-ASSY:CLUTCH-HS1130 |
| 37 | S7490000022 | PCBA:DUAL_USB-HUB:FULL SPEED | 79 | 7900000932 | UP_KIT:ASSY:SOL-GATE-5 |
| 38 | 7710000023 | PCBA:BDM Sub B/D | 80 | 7900000933 | UP-KIT:ASSY:SOL-GATE |
| 39 | S5623000001 | UP_KIT:INVERTER:AT-0150LG BIS | 81 | 7900000935 | UP-KIT:SUB_ASSY:DRIVE MODULE RTCST |
| 40 | 3266000214 | CABLE_ASSY_SHU:MOD SWITCH:MCD-10 | 82 | S2101000165 | NEC 4 PORT USB HUB |
| 41 | S7307000061 | DRIVE MODULE 02 | 83 | S3266002121 | CABLE_ASSY_SYS:MODE SWITCH 1/ |
| 42 | 3205000027 | CABLE_ASSY_CDU:1,2CST SENSOR 1/F | 84 | S45100508 | BEARING:L-136022 |
- Pics detail
