1750109651 Wincor ProCash ATM Cash Cassette CMD V4 Lock Seal
Price:
negotiable
MOQ:
1pc
Delivery Time:
1day
Brand:
WINCOR
Product Description
1750109651 Wincor ProCash ATM Cash Out Cassette CMD V4 Lock / Seal
1750109651 Wincor ProCash ATM Cash Out Cassette CMD V4 Lock / Seal 01750109651
- Reject / retract cassette CMD-V4
Banknotes from failed or trial dispensing are generally stored in an unordered
manner in the reject box of the reject/retract cassette.
Banknotes from the customer, e.g. banknotes not removed by the customer,
are stored in the retract box of the reject/retract cassette.
The reject/retract cassette is available in different versions.
- Cassette versions
Reject/retract cassette with locking/release lever and lead-sealed (see
illustration)
Reject/retract cassette with lock and lead-sealed
The reject cassette used with the VCMD does not have a retract box.
Banknotes from failed or trial dispensing are generally stored in an unordered
manner in the reject box of the reject cassette.
The reject cassette is available in different versions
- Avoidance of problems and damage
Safety instructions
1. Make sure that cash-out or reject/retract cassettes are not damaged or
dropped during storage and transport.
2. In particular, make sure that the gearwheel at the front of the reject/retract
cassette is not damaged during storage and transport.
3. Protect the cassettes against moisture during transport.
4. Do not install cassettes that have come from a cold environment until they
have had enough time to acclimatize (condensation, for example, can
occur).
5. Never pull the cassette out while the system is in operation. This would
immediately cause a banknote jam.
6. Pay attention to the weight when removing and installing cassettes.
A completely filled cash-out cassette weighs about 6.3 kg (13.89 lb).
Cassette transportation
Make sure that cassette(s) are not damaged during transport. It is
therefore important to note the following instructions:
– Do not allow cassette(s) to fall
– Do not toss cassette(s)
– Transport cassette(s) only in its/their original position during
transport
– Do not hurtle cassette(s) during transport (loose transport on the
loading surface is not permitted)
– Do not stack excessive numbers of cassette(s) on top of one
another
- Product detail
| 1 | 1750109651 Note out put |
| 2 |
Gearwheel to drive the banknote
transport
|
| 3 | Cassette lid |
| 4 | Reject compartment |
| 5 | Blue/green tamper indicator |
| 6 | Cassette handle |
| 7 | Locking / release lever or lock |
| 9 | Lever for retract box |
| 10 | Retract box |

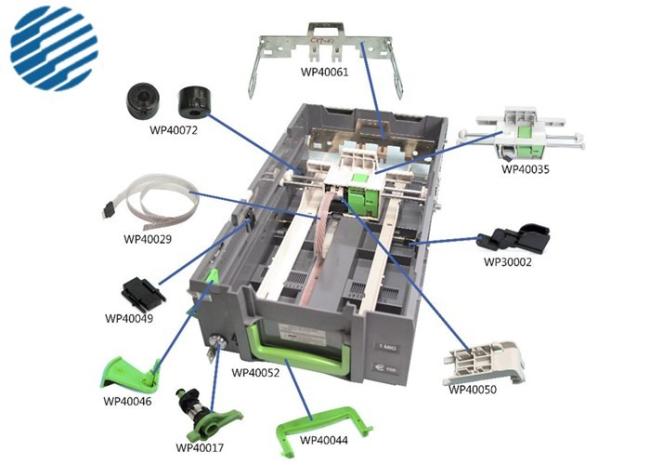

| WINCOR CASSETTE ATM parts list | |||||
| ROW1 | PARTNUMBER | Description | ROW2 | PARTNUMBER | Description |
| 1 | 1750042975 | wincor cassette cover | 14 | 1750041924 | WINCOR reject bin parts |
| 2 | 1750058972 | Cassette Body Case | 15 | 1750041932 | WINCOR reject bin parts |
| 3 | 1750044014 | Frame right | 16 | 1750043499 | WINCOR reject bin parts |
| 4 | 1750043502 | frame left | 17 | 1750041930 | WINCOR reject bin parts |
| 5 | 1750057071 | cassette bottom pusher | 18 | 1750056645 | WINCOR reject bin parts |
| 6 | 1750042968 | block plate | 19 | 1750041923 | WINCOR reject bin parts |
| 7 | 1750014250 | cassette latch | 20 | 1750041941 | WINCOR reject bin parts |
| 8 | 1750056643 | control PCB | 21 | 1750042974 | Cassette side spare parts |
| 9 | 1750042964 | Motor bracket | 22 | 1750044031/1750044032 | cassette guide note left right |
| 10 | 1750042961 | Cassette Pusher Frame | 23 | 1750043213 | Clip |
| 11 | 1750016071 | Plastic Spare Parts | 24 | 1790253503 | cassette locker |
| 12 | 1750043499 | Indicator Segment | 25 | 1750044031 | guide note left right |
| 13 | 1750014227 | Cassette Pin | 26 | 1750044032 | guide note right |
- Pics detail
