Buy 3200000282 Hyosung ATM Parts CABLE_ASSY : CST_IF_CN6_CST_M_CDU10
Buy 3200000282 Hyosung ATM Parts CABLE_ASSY : CST_IF_CN6_CST_M_CDU10
- Part Number : 3200000282 CABLE_ASSY:CST_IF_CN6_CST_M_CDU10 is used in MX 7600I ,below is machine 7600I info
-
System Control
• Microsoft Windows XP platform
• Intel processor
• NDC+, User Application
Customer Display
• 15" color TFT LCD
• Sunlight readable touch screen
Optional
• Privacy filter
Communication
• TCP/IP
Optional
• Wireless. X.25 capable
Input Type
• PCI EPP (Encrypting PIN pad)
• ADA compliant
Optional
• Tilting screen
Supervisor Operation
• TFT color LCD, touch screenCard Handling• Dip-type card readerOptional• Anti-skimmingCash Dispensing• 3,000-notes cassette, up to four cassettes• Bundle retraction• Automatic shutterDepository Options• Envelope depository• Bulk check acceptor• Bulk note acceptorPrinters• 3.1" graphical thermal receipt printer• 5,000 transaction receipt printer• Electronic journalSecurity • UL291 Level 1 safe • Enhanced Alarms • Electronic safe lock Optional • KABA Mas Cencon safe lock • security camera Miscellaneous • Lead-through indicator • Illuminated signage • Rear-view mirror Optional • Extreme-weather heater Power Supply • AC 110–240V, 50–60 Hz • Back-up battery Operating Environment • Temperature: -31ºF–122ºF (-35 ºC–50 ºC) • Humidity: 5%–85% (with climate control device) Dimension and Weight • Height: 56.7" (1,439 mm) • Width: 41.3" (1,048 mm) • Depth: 36" (914.4 mm)
| NAUTILUS HYOSUNG ATM parts list | |||||
| ROW1 | PARTNUMBER | Description | ROW2 | PARTNUMBER | Description |
| 1 | 7760000067 | PCBA:CST_M:CDU10 | 22 | 7120000089 | UNIT:BRM20_SHUTTER:MX8000TA |
| 2 | 7430000242 | UNIT_SUB_ASSY:SOL_SF | 23 | 7090000328 | UNIT:CE:FC_EX_G41:Core2duo:2GB:HDD1 |
| 3 | 4820000027 | BELT:T_BELT_W04L96_S3M | 24 | S5743000044 | PC:TG:H61:DualCore2.5G_G540:2GB:HDD1:ODD |
| 4 | 4820000028 | BELT:T_BELT_W08L516_S3M | 25 | 5611000125 | PCBA:NCM-V05F-2:USB CAMERA:THIRD:NAMUGA |
| 5 | 7310000405 | SUB_ASSY:ROLLER_PICK_UP_SF | 26 | 5611000126 | PCBA:NCM-V05F-2:USB CAMERA:SECOND:NAMUGA |
| 6 | 7310000408 | SUB_ASSY:MOTOR_PICK_UP | 27 | 7650000141 | PCBA:7PORT_SMSC_HS_USB_HUB_B/D:NH |
| 7 | 4400000090 | LEVER:LOCK_GUIDE_OUT_FM | 28 | S7020000032 | UP_KIT:UNIT:L-SPR3:INDIA |
| 8 | 4400000091 | LEVER:FIT_SF_LOCK | 29 | S5665000003 | UP_KIT:VIDEO.CARD:HD7350:PCI-E |
| 9 | 7430000445 | UNIT_SUB_ASSY:NOTE_SEPA_SF5 | 30 | S5693000025 | UP_KIT:HDD_3.5 INCH:SATA:320GB |
| 10 | 4380000027 | MOLD:KNOB_CAP_CST | 31 | S7310000733 | UP.KIT:SNB_ASSY:ESCROW (ASSY:CARRIAGE_ALL. ) |
| 11 | 4500000679 | MOLD:HINGE_CAP_CST | 32 | S3250000019 | UP_KIT:CABLE_ ASSY_SHU:END SEN |
| 12 | 5611000166 | PCBA:TOUCH CON:RES-05CUA_R20:RES:USB:S&T | 33 | S1010000055 | UP_KIT:CPU:DUAL CORE:E5700:LGA |
| 13 | 5659000024 | T/S:TOUCH PANEL:T101IS-5RB001X:HIGGSTEC | 34 | S3266000992 | UP_KIT:CABLE _ASSY:SYS:MULTI PO |
| 14 | 5611000268 | PCBA:AD_BD:NT101_VGA:10.1INCH:NEOTECH | 35 | S7090000310 | UP_KIT UNIT:FC_EX_G41:EX_G41:E5700:2G |
| 15 | 7650000034 | PCBA:AD GENESIS_ASSY_OSD B/D:SMALL SIZE | 36 | S7090000149 | UP_KITUNIT:CE:IG SAMBO:MX 560 |
| 16 | 7110000025 | UNIT:SPL:10.1INCH:MX8200T | 37 | S7307000177 | UP_KIT:SUB_ASSY:CST_NH_WW |
| 17 | 5621000034 | UNIT:P/S:750W:HPS750-BATMI | 38 | S56721401 | UP_KIT:PRINT:MDP_350:DOT_9WIRE |
| 18 | 5645000019 | UNIT:MCU:ICT3Q8-3A2294:SANKYO:M_driven | 39 | S7310000709 | UP_KIT: ASSY:MB |
| 19 | 7000000229 | UNIT:BRM20R-L124MG1HT-00 | 40 | S5621000002 | P/S:HPS250-GTTW:MX-7100T:TURKEY |
| 20 | 7010000209 | UNIT:CDU10_5CST_REAR_AUTO | 41 | S4520000535 | UP_KIT:K-ASSY:PAPER_TAKE_SH_D322-MECH07 |
| 21 | 7100000136 | UNIT:TILT_OPL_TC_NDC:MX_8200T | 42 | 3205000028 | CABLE_ASSY_CDU:3,4 CST SENSOR 1/F |
- Company Profile
TS TECH (HONG KONG) CO.,LTD founded in 2003 in China,is a leading professional supplier of ATM modules and spares, and help hundreds of customers from around the world to source their NCR, Wincor,Diebold,hyosung,GRG parts.
TS TECH (HONG KONG) CO.,LTD has a professional sales and technical team.Most of our sales have more than 10years experience in ATM industry.Our sales know exactly what machine are used in each Market. They are also experienced in importing&exporting from each country.
It can save your communication times.
Our technical team consists of four members. We have top technicians for every brand.As all of them have years of working experience in manufacturers such as wincor diebold NCR hyosung.They can give you technical support.
We are a direct manufacturer in atm spare parts.our factory located in Guangzhou.TS also have good relationships with original manufacturer.we can get new original parts from manufacturer.
I trust TS can give you good support!
- Our service
1. supply thousands of kinds of products including brands like Hyosung,
NCR, DIEBOLD, HITACHI, FUJITSU, WINCOR and so forth.
2. do OEM according to customers’ needs.
3. professional and quick online technical support and sollutions.
4. after-sale service is reliable.
5. prompt and on-time delivery.

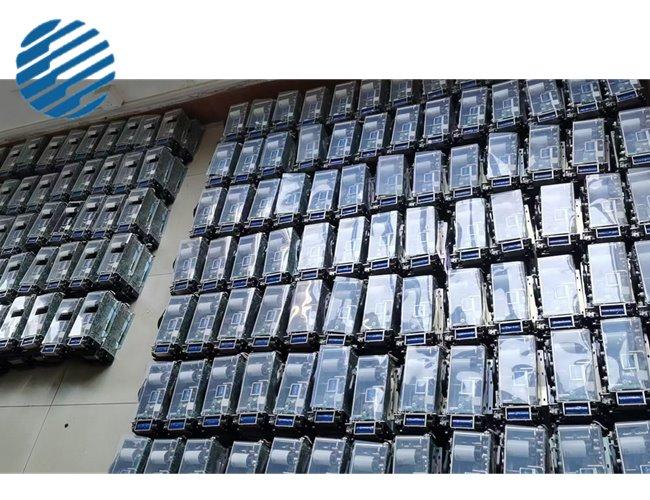

- Pics detail
