4P005157-001 Diebold 368 ATM Parts WLR - IDL G HCM ECRM BCRM Hitachi
Price:
negotiable
MOQ:
1pc
Delivery Time:
1day
Brand:
Diebold / HITACHI
Product Description
4P005157-001 Diebold 368 ATM Parts WLR - IDL G HCM ECRM BCRM Hitachi
4P005157-001 Diebold 368 ATM Parts WLR - IDL G HCM ECRM BCRM Hitachi
- HITACHI 2845
FEATURES OF ATMS FOR THE WORLD MARKET
With its new cash module with banknote recycling functions, the new ATM, HT-2845, provides new
services and improves the efficiency of banking management for the world market (Fig. 1).
This ATM has the following four features:
(1) Versatility and flexibility
The HT-2845 ATM can handle banknotes of various currencies, of different sizes, and in various conditions.
The handling of a particular currency can be customized by simply uploading validation software.
Various operations, such as cash recycling, non recycling or deposit-only operations, for a number of
denominations in use, can be performed by simply changing the type and number of banknote cassettes.
This ATM can be applied to the banks’ various installation conditions because the banknote cassettes
are designed to be accessed from both the front and the rear.
variety of functions from the menu.
Bank staff can easily access banknote cassettes which are installed adjacent to one another.
(3) Compactness and large capacity
The HT-2845 ATM has a small footprint of 570 × 630 mm, which is about 60% that of Hitachi’s preceding ATM. The ATM can still have a large number of banknote cassettes, each holding up to 2,000 – 2,900 banknotes due to the use of a simple two-way paper
path configuration and a smart stacking mechanism. The large capacity accepts big changes and concentrations of traffics.
(4) Expandability of banking services
An open-platform and Web-software-based browser in the HT-2845 ATM provides easy customization of the operation menu and interfaces at local vendors.
- Product Detail
| DIEBOLD HITACHI ATM parts list | |||||
| ROW1 | PARTNUMBER | Description | ROW2 | PARTNUMBER | Description |
| 1 | IP004062 | WCS-UNIT ASSY | 31 | 7P0Il710 | wCS-F.MT .BRKT ASSY |
| 2 | lP004063 | wcs-UNIT.SUB ASSY | 32 | 7P0I17ll | wcS- 3MT.BRKT ASSY |
| 3 | IP004065 | wCS-F D. FRAME ASSY | 33 | SP 306L | wcs-FRNT.BRKT ASSY |
| 4 | 7P006543 | wcS-L.GUIDE.L BRKT | 34 | SP312L | wcS-SEN covER |
| 5 | 7P01034l | wCS-L.GUIDE.R BRKT | 35 | SP408L | TRB SF BELT F |
| 6 | 4P008142 | wcs-L.GUIDE ASSY | 36 | 45000o i | wCS-6K STUD |
| 7 | 4P008142 | wcS-L.GUIDE ASSY | 37 | 45000o l | wCS-6K2STUDL |
| 8 | 7P00655l | wcs-s.u.G BRKT | 38 | Sc408 | -SCREW |
| 9 | 4P008975 | wCS-FRONT.PLT ASSY | 39 | HE00 I96 | WET-T1-GUIDE SPG |
| 10 | IP004006 | wCS-FRONT PLATE | 40 | 4P007365 | wZ-M7P .CBL ASSY |
| 11 | 7PO1 I72I | wCs-F PLATE SPG | 41 | 4P007366 | WZ-M6P.CBL ASSY |
| 12 | 7P006573 | wCS-FP PIN | 42 | 4P007367 | wZ-MI2P.CBL ASSY |
| 13 | 7P012780 | wCs-FP.SPG SHAFT | 43 | 2P004454 | WUF -B/R-R.GUl ASSY |
| 14 | 2P004480 | B-SCREW | 44 | IPO04018 | WUF -B-ROLR GUIDE |
| 15 | 2P004482 | z-JRE PURCH.SPEC | 45 | 7P006l20 | WBM-PRISM MOLDWBM-B/R.C |
| 16 | 7P011709 | ERING | 46 | 7P011614 | SHAFTNRB-B/R ROLR |
| 17 | 7P016635 | wCS-FP.K SPG | 47 | 4P008998 | WBM-B/R.SH CLIP |
| 18 | 7P006573 | wCS-FP PIN | 48 | 2P004455 | WUF -BLT.GUID ASSY |
| 19 | 4P009200 | wCs-FPP CLAMP | 49 | 4P007382 | wUF -S003-CBL ASSY |
| 20 | 4P009200 | wcS-FPP CLAMP | 50 | 2PO04456 | WUF -KAIHEI.G ASSY |
| 21 | L40942 | Jz-BELT CLAMP | 51 | 2P003973 | WUF-CS9FRAME |
| 22 | 4P008173 | wcs-sID-UP L GUIDE | 52 | 7PO10385 | WUF -SP6.R ASSY |
| 23 | 4P008172 | wcs-SID-UP R GUIDE | 53 | 7P006552 | R-NMB BRG |
| 24 | 7P012616 | wcs-STOPR.B ASSY | 54 | 2P004465 | wWuF -CS-3 GATE |
| 25 | 4P008984 | METAL BUSH | 55 | 2P004430 | WuF -CS-2 GATE |
| 26 | 4P008935 | WUF -IDL2.S ASS Y | 56 | 2P004429 | wWUF -CS-l GATE |
| 27 | 4P005078 | WUF - lDL-2 SHAFT | 57 | 4P005069 | wUF -U/L-6ATE SHAFT |
| 28 | 4P008932 | WUF-KUDO.R.S ASSY | 58 | 4P008930 | WUF-GATE.S ASSY |
| 29 | 2P004358 | WBM-S. DRIVE ASSY | 59 | 7P011647 | WUF -FL.GUIDE SPG |
| 30 | 4P008936 | WUF -SI .3BRKT ASSY | 60 | 4P008132 | WUF -S1.S3 BRKT |

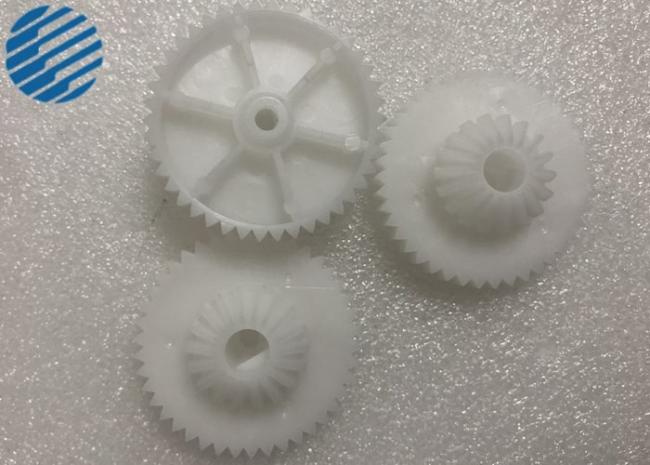

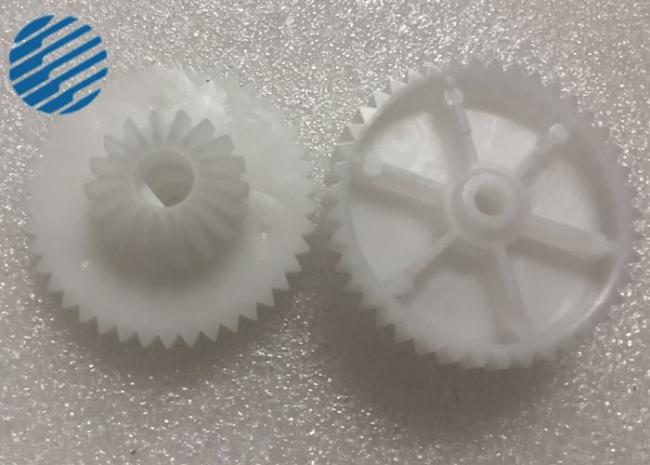

- Parts Pics
