200 Degrees Tabletop Automatic Tray Sealing Machine For Food Supplier
Tabletop SUS304 Automatic Vacuum Sealing Packaging Machine
Consumers want fresh food
So what should we do to extend food shelf life and maximise food value and no waste? The MAP machines perfective find the way to work this problem out. It removes out the oxygen that preserves the food to extend the shelf life of the product. Vacuum-sealed technology ensures that the meal's flavours and ingredients are captured at their freshest.
But if you don't want gas flush or vacuum funciton, we also can remove the MAP function, make it as just a automacit sealer machine, in this way the machine price is lower.
Related parameters:
| Product name: | YT-500T Semi-auto Vacuum MAP Machine Tabletop |
| Voltage: | 110V-220V 50-60Hz / customized |
| Heating Power: | 1600W |
| Air displacement vacuum pump: | 40 m³/hour |
| Limit Vacuum: | -0.1MPA |
| Air pressure: | 0.6Mpa |

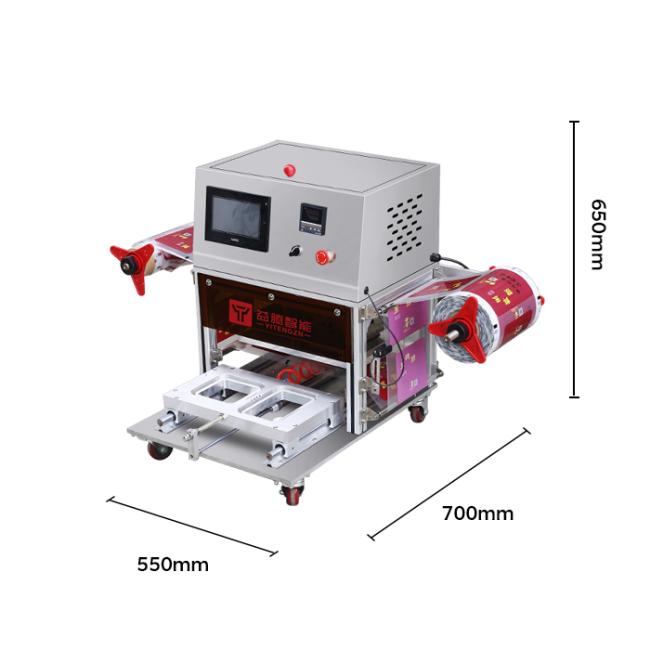

| Dimensions: | 480*780*780mm |
| Packing speed: | 500-600 container/hour |
| N.W.: | 50kgs |
| G.W.: | 75kgs |
| Body material: | SUS304 , 6061 Aluminum alloy molds |
| Plastic tray dimensions: | 20*14cm, 18*12cm, 14*14cm, other size can be customized |
| Vacuum Pump: | 100 m³/ hour |
| Air compressor: | 0.6-0.8Mpa |
| Driving mode: | Electric & pneumatic |
| Max. width of the film: | 330mm |
| Max. Dia. of the film | 280mm |

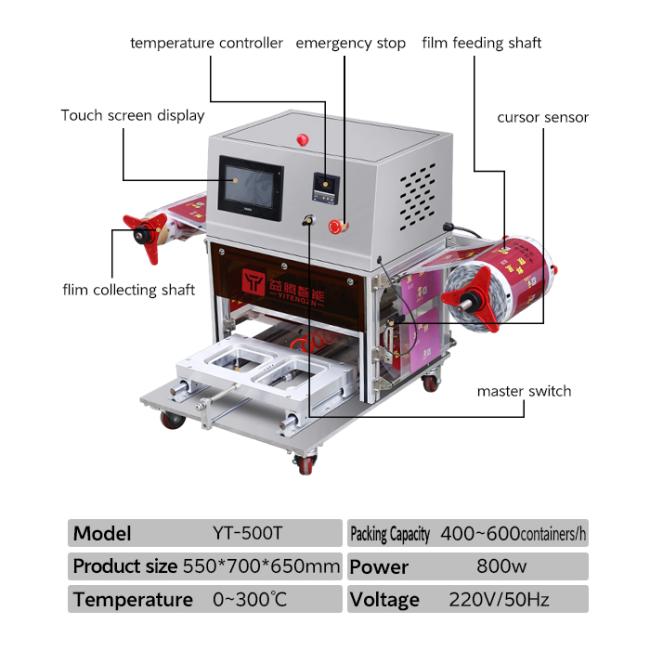

PRODUCTS FEATURE:
1. Cutting attachment (trims seal edge up to 2mm).
2 Rigid structure made from stainless steel and corrosion resistant aluminum, ensure the highest food hygiene standard.
3. Automatic thermostat controller, the temperature difference is stable between ±0.5 degree Celsius.
4.Using cursor sensing, precise film sealing the containers, the food will not leak out.
5.Packaged food can be microwaved, but the film must be torn off a bit.
---Tray size
* It can pack several trays at the same time, which depends on your actual tray size.
* Above layout is just for reference. The tray size not limited in above size.
* Accordingly to actual tray sample, the tooling of machine will be individually built for clients.
