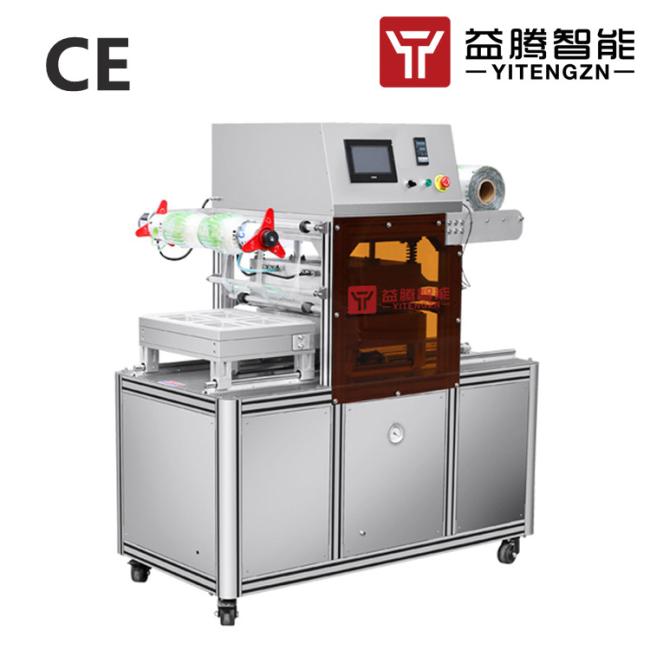

2400W Vacuum Pneumatic Lunch Tray Sealing Machine Semi Automatic
Tray Type Vacuum MAP Packaging Sealing Machine Gas flushing
YiTeng Machinery
The modified atmosphere packaging machine is a new type of fresh lock modified atmosphere packaging machine which developed on the basis of the box sealing machine. It is an intelligent device that can extract out the air, fill in a certain proportion of nitrogen or mixed gas, and then seal the tray.
Product details:
Same molds tray/ cycle with coding machines:
Product Prameters:
| Item: | Food Tray Sealing Packing Machine | Body material: | SUS304 / 6061 Aluminum Alloy |
| Voltage: | 220V/380V 50-60Hz | Vacuum pump: | 100m³/h |
| Power: | 3000W | Air compressor: | 0.6-0.8Mpa |
| Air displacement vacuum pump: | 63 m³/h | N.W.: | about 200kgs |

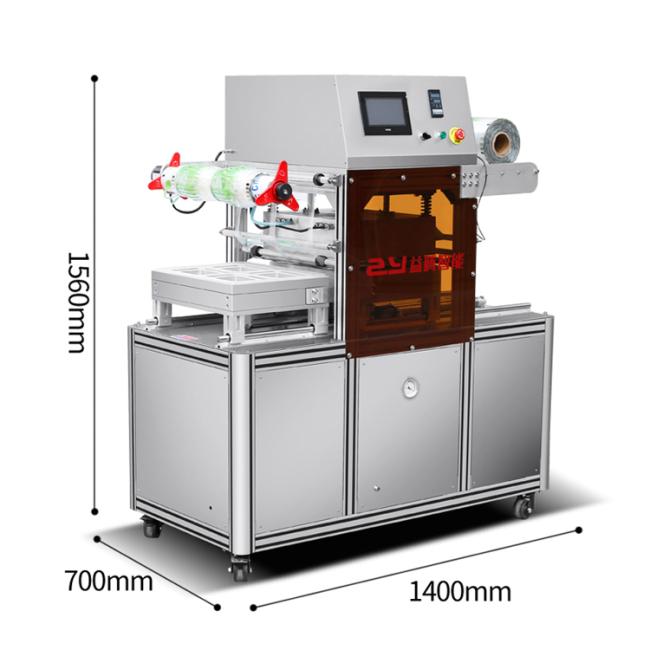

| Product Size: | 140*70*156cm | G.W.: | about 250kgs |
| Packing speed: | 1800-2000pcs/h | Air compressor: | 0.6-0.8Mpa |
| Driving mode: | Electric + Pneumatic | Air consumption: | 0.6 m³/h |
* Tray size: the Tray size is not limited in above sheet, we will make the molds according to your packing cups size.
* The air compressor is not included in the price, customer need to buy seperately.
Related products:
Applications:

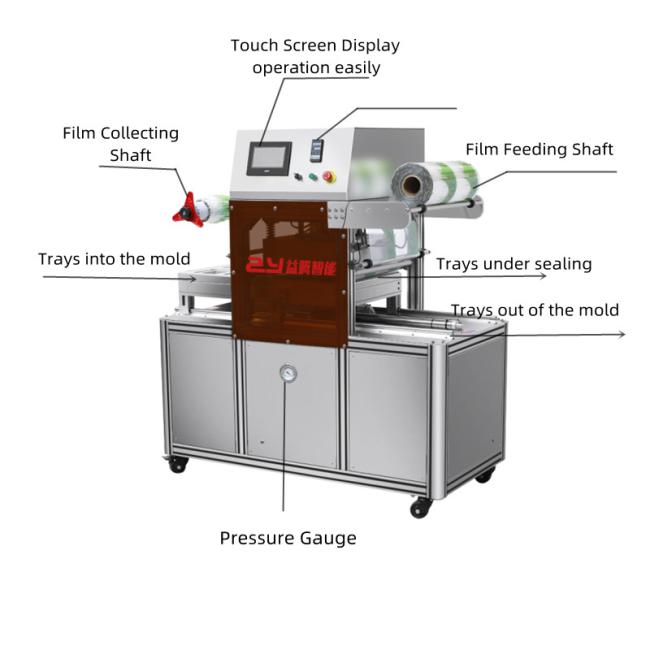

Main related configurations:
* Touch screen display: Shanghai FLEXEM
* Circuit breaker& transformer: Zhejiang CHINT
* Vacuum pump: ZD--Shanghai
* Temperature controller: SINNY--Zhejiang
* Motor: OUBANG-Jiangsu
* Gas mixer instrument: US Imachine/ German WITT/ YiTeng, it's optional.
* PLC control systerm: XINJIE
Product Features
1. 304 stainless steel construction, comply with hygiene for machine used in food industry.
2. Applies “Vacuum – Gas Filling” technology. Vacuum the chamber first, then fill in gas, much better than the old-fashion gas flushing method, which guarantees gas purity, and saves gas sources.
3. Work status indication: Failsure worning system.
4. Using Taiwan AIRTAC pneumatic elements.
5. Free film design if client needs:
![]()
![]()
![]()
![]()
Why Choose Us:
Wenzhou YITENG Intelligent Equipment Company is a manufacture located in #61 Building,Times Founders Park, Mayu Town, Ruian City, Zhejiang Province. We are specialized in the production of Filling Machines, Sealing Machines,Labeling Machines,Capping Machines, coding Machines, Vacuum Packing Machines, Shrink Packing Machines,and other machines. Buying from factory the price is competitive and it’s helpful for you to get bigger market in your country. Factory has powerful and rich experience of technical team. Customers can always count on us. All customers are always allowed to customize their own modified atmosphere packaging machine by contacting us with requirement details.
