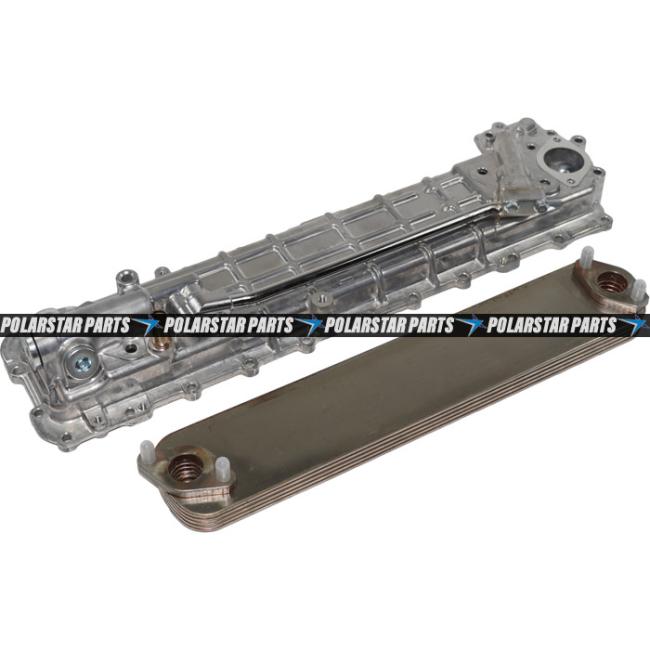

6HK1 Excavator Isuzu Engine Spare Parts ZAX330 Oil Cooler Element 1-21723066-0

002(A). 1132402290 [1] ELEMENT; OIL FILTER A

002(A). 1132402322 [1] ELEMENT; OIL FILTER

013. 1131600350 [1] VALVE; RELIEF

013. 1131600350 [1] VALVE; RELIEF

020. 8943967530 [1] PLUG; COOLER BODY

021(A). 8943967550 [1] GASKET; PLUG M24

021(B). 1096231790 [2] GASKET; PLUG M24

025. 1132193240 [4] NUT; CORE TO BODY M10 FLANGE

026. 1217230660 [1] CORE ASM; OIL COOLER

027. 9091645100 [4] WASHER; PL,CORE TO BODY ID=10

028(A). 1217291170 [1] GASKET; CORE TO BODY

028(B). 8943949300 [1] GASKET; CORE TO BODY

045. 1133412280 [1] COVER; OIL PORT

102. 1132010114 [1] COOLER ASM; OIL

103. 1090440711 [3] BOLT; OIL COOLER M8X55 FLANGE

103. 0280808250 [24] BOLT; OIL COOLER A M8X25 FLANGE

103. 0286808350 [1] BOLT; OIL COOLER M8X35 FLANGE

103. 0280808220 [24] BOLT; OIL COOLER M8X22 FLANGE

103. 0286508350 [1] BOLT; OIL COOLER M8X35 FLANGE

120. 0281810800 [4] BOLT; ADAPTER M10X80 FLANGE

120. 0281510800 [4] BOLT; ADAPTER M10X80 FLANGE

120. 0281510250 [1] BOLT; ADAPTER M10X25 FLANGE

120. 0281510900 [3] BOLT; ADAPTER M10X90 FLANGE

149(A). 8972542961 [2] PLUG PT3/4

149(B). 8943992250 [1] PLUG M14

149(C). 1096040940 [1] PLUG M10X7

170. 8943900782 [1] PIPE; BYPASS

196. 8943948152 [1] THERMOSTAT; OIL COOLER A 90 C

196. 8976009360 [1] THERMOSTAT; OIL COOLER 90 C

197. 8943992790 [1] GASKET; THERMOSTAT ID=25.7

288(A). 1096040230 [2] PLUG; OIL DRAIN M24X17

288(A). 1096040220 [2] PLUG; OIL DRAIN M24X17

288(B). 1096050250 [2] PLUG; OIL DRAIN P/T3/4

316(A). 8943993990 [2] GASKET; COVER TO BODY ID=22.1<BR>ALSO INCLUDED IN GASKET SET(ENGINE)

316(B). 8943993390 [1] GASKET; COVER TO BODY ID=9.8<BR>ALSO INCLUDED IN GASKET SET(ENGINE)

323(A). 1133412290 [1] COVER; OIL PORT

323(B). 8973638403 [1] COVER; OIL PORT

352. 8972221250 [1] ADAPTER; OIL FILTER

444. 8943968100 [2] GASKET; ELEMENT TO BODY

444. 1096232990 [2] GASKET; ELEMENT TO BODY ID=38.7

447. 1096235880 [2] GASKET; BYPASS PIPE

448. 0280808300 [4] BOLT; BYPASS PIPE A M8X30 FLANGE

448. 0280508300 [4] BOLT; BYPASS PIPE M8X30 FLANGE

469(A). 8943990020 [1] GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE)

469(B). 8943992790 [1] GASKET; OIL COOLER TO C/BL ID=25.7<BR>ALSO INCLUDED IN GASKET SET(ENGINE)

469(B). 8980454490 [1] GASKET; OIL COOLER TO C/BL ID=25.7<BR>ALSO INCLUDED IN GASKET SET(ENGINE)

496(A). 1132010010 [1] FILTER ASM; OIL

496(A). 8973243861 [1] FILTER ASM; OIL

517. 1217291180 [1] PLUG; THERMOSTAT,OIL COOLER

518. 0280808160 [2] BOLT; PLUG,THERMOSTAT A M8X16 FLANGE

518. 0280508160 [2] BOLT; PLUG,THERMOSTAT M8X16 FLANGE

558. 1096050250 [2] PLUG; COVER,OIL PORT

560. 1131600350 [1] VALVE; RELIEF,OIL PORT COVER
