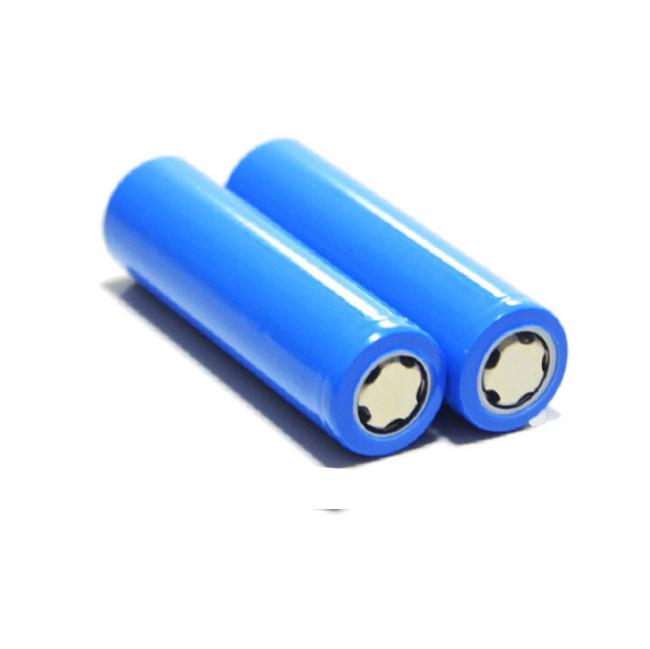

4C Lifepo4 Cylindrical Cell

Price Negotiable

Price: negotiable

MOQ: 100pcs

Delivery Time: based on the quantity

Brand: JW

Product Description

4C High Charge Rate Lithium Ion Battery Cell Lifepo4 Cylindrical Cell

1. Description :

This lithium ion battery can be designed for a fast charge of 15-minutes and also not sacrifice the specific energy. Ultra-fast charging only when using. The charge current should be lowered after the battery reaches 70 percent state-of-charge (SoC).
Fast charging is considered to be a key requirement for widespread economic success of electric vehicles. Current lithium-ion batteries (LIBs) offer high energy density enabling sufficient driving range, but take considerably longer to recharge than traditional vehicles.

2. Applications : Drones, 3C, consumer electronices, power tools , e-bicycle, e-motorcycle , e-car, electrical low speed car .

3. Specifications :

Item	Parameters
Nominal Voltage	3.2V
Nominal capacity(0.5C 25°C)	8Ah
Max Charging voltage	3.65V
Discharge cut-off voltage	2.0 V
Recommended charge current	24A(4C)
Max charge current	80A(10C)
Charge time	15min(can be customized)
Temperature rise @5C	≤10°C
Recommended discharge current	40A(5C)
Max continuous current	120A
Max 30 sec Pulse	240A
Temperature rise @10C	≤20°C
Internal resistance	≤11-17mΩ(AC Impedance, 1000 Hz)
Working Temperature	-20°C~60°C
Self discharge rate	≤2% per month
Dimension(LWH mm)	Diameter 38mm Height 120mm
3C/3C cycle life	≥3000 times
5C/5C cycle life	≥2000 times
Weight(g)	335±g
