Deep Cycle 7s5p Battery , 24v 10ah Electric Bike Lithium Battery Pack JW

Price Negotiable

Price: negotiable

MOQ: 500pcs

Delivery Time: based on the quantity

Brand: JW

Product Description

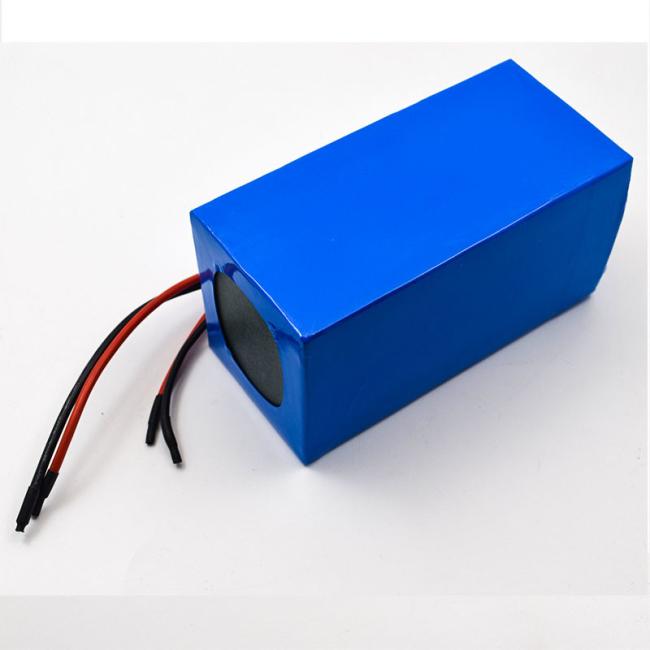

Deep Cycle Life 7S5P 24v 10ah Lithium Ion Battery Pack For Electric Bike

1. Description :

Use lithium ion battery pack for getting lighter weight, smaller size. High temperature performance .We design at the aim of extremely safe, no explosion, no fire under collision.
Strong over-discharge resistance and charge retention.
Strong charging acceptance and quick-charging capability. Maintenance-free and no acid or water for maintenance in usage. Large capability and long life for all high power output applications.
Environmentally friendly non-toxic, non-contaminating, no rare metal.Low self-discharge and good discharge performance at low temperature 10.Excellent large current discharge performance especially in startup and climbing.

2. Applications :

(1)Power electric vehicles: electric bike, bicycle, scooter, motor, car

(2)Portable Devices: GPS,PDA, laptop, notebook

(3)Video Devices: LED flashlight, cordless phone ,camera, safety alarm

(4)Others: electric meter water Instrument, backup power

3. Specifications :

Item	Parameters
Nominal Voltage	24V
Nominal Capacity	10±1Ah( at 0.2C discharge rate)
Discharge	normal current		1C
	Max continuous current		2C (≤5min)
	cut-off voltage		19.25
Charge	normal charge current		0.5C
	Charge mode		CC/CV with professional charger
	cut-off voltage		29.75±0.1V
Inner Resistance	Discharging Inner resistance		≤80mΩ
Charge Temperature	0℃~+45℃	When the environment temperature is higher than 45℃,please pay attention to ventilation and heat rejection.
Discharge Temperature	-20℃~+60℃
Humidity Range	RH≤85%
Protection Function	Over charge protection,Over discharge protection,Over current protection,Balanced function
Weight	1.5±0.1kg
Dimension(LWH)	customized
