Rechargeable Lithium Ion Bike Battery , 5Kg 60v 12ah Lithium Ion Battery
Price:
to be negotiated
MOQ:
50 sets
Delivery Time:
Negotiable
Brand:
JW
Product Description
Rechargeable Electric Bike 60v 12ah Lithium Ion Battery Packs
1. Description :
- Our rechargeable lithium ion battery has a nominal voltage at 60V,nominal capacity 12Ah, continues working current 20Ah, over protected current 40A-50A, It’s protected discharge current is 2.5+0.05A,Our batteries have long cycle life, over 800 times ,light weight around 5Kg.
- Charge temperature and discharge temperature are 0-40℃ and -20~50℃ respectively,suitable for different environment.different voltage range for your reference.
2.Applications : E-bike, E-scooter
3. Specifications :
| Nominal Voltage | 60V |
| Nominal Capacity | 12Ah |
| Continues Working Current | 20A |
| Over Protected Current | 40A - 50A |
| Power Supply | ≤800W |
| Over Protected Discharge Current | 2.5V+0.05A |
| Max Voltage | 67.2V |
| Nominal Charge Current | 2A/ Max 5A |
| Charge Temperature | 0~40℃ |
| Discharge Temperature | -20~50℃ |
| Cycle Life | ≥800 times |
| Inner Cell | 18650 2600mah Chinese Cell |
| Size (L*W*H) | 315*95*70mm / 53*138*285mm |
| Weight | About 5k |
| Nominal voltage | 12V | 24V | 36V | 48V |
| Nominal capacity | 100Ah | 10Ah | 10Ah | 20Ah |
| Max charge voltage | 14.4V | 28.8V | 43.2V | 54.6V |
| Cut-off discharge voltage | 10.8V | 21.6V | 32.4V | 39V |
| Max.continuous discharge current | 15-30A | 15-30A | 15-30A | 15-30A |
| Peak current (less than 10s) | 50-70A | 50-70A | 50-70A | 50-70A |
| Charger | 14.4V 2A | 28.8V 2A | 43.2V 2A | 54.6V 4A |
| Battery Weight | 4.5Kg | 4.5Kg | 4.5Kg | 4.5Kg |
| Warranty | 12 Months | 12 Months | 12 Months | 12 Months |
4. Feature advantage :
- Size can be customized
- Variant voltages for customer choices
- Light battery weight
- Good safety performance and safety tests
- low internal resistance
- More than 800 cycle times
- Adapt to variant temperature situations

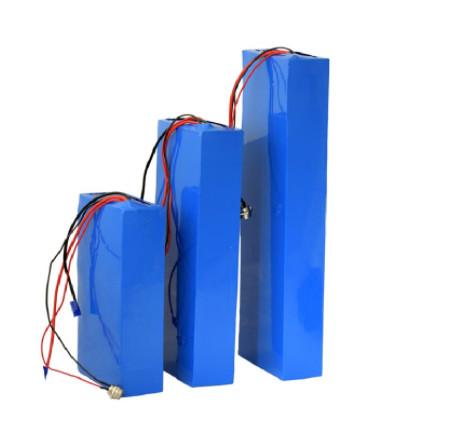

5. Picture:
