Plug Wire Braided Silicone Rubber Fiberglass Sleeving Cover
Silicone Coated Braided Fiberglass Fire Sleeve Plug Wire Sleeve Cover
Description for High-Temperature Silicone Rubber Fiberglass Sleeving
Silicone fiberglass cable sleeving with hook and loop tape is made of fire retardant sleeve stitched with nylon flame retardant fasteners. The hook-and-loop fastener design allows easy installation and removal of fire bushings. Its flexible and simple structure makes it easy to apply to pipelined instructions. Especially suitable for high-temperature protection of installed pipeline equipment.
| PRODUCT PROFILE | |
| Continuous Operating Temperature | 260°C/500°F |
| Temperature endurance | 500°C |
| Off-self time | 10 s |
| Horizontal flame test | ≤ the 30S |
| Max short term exposure | 1300°C |
| Design-Build | Braided fiberglass substrated coated with silicone rubber |
| Reactions | Resists most acids & water Unaffected by solvents & fire |
| Design Capabilities | Excellent thermal protection; very flexible; custom silicone thickness available |
| Size/Size Range | 10 mm -- 100mm |
| Breakdown Voltage | When normal condition alternating current 50HZ, can reach 10,000V~12,000V |
| Nominal Wall Thickness | 1mm -- 5mm (1/25" -- 1/5 ") |
| Flexibility | Outstanding |
| Durability | Outstanding |
| Color | Custom colors are available by special order.(Red/Black/Sliver) |
Operation Temperature
Continuous Operating Temperature: -65 ° C - 260 ° C
15-20 minutes: 1090 ° C
15-30 seconds: 1650 ° C
Technique Data
| Description: | Texturized fiberglass sleeve with silicone coating | |||||
| Contents: | 100% glass fiber and silicone rubber | |||||
| Yarn type: | 9 um | |||||
| Internal Diameter : | 30mm | |||||
| Thermal Conductivity | 0.035(w/(m.k) | |||||
| Continuous Temp resistance: | No more than 550 0C | |||||
| Freeze temp: | -50 0C | |||||
| Loss on Ignition | ≦3.52% | |||||
| Chemical composition | ||||||
| SiO2 | Al2O3 | CaO | MgO | R2O | Fe2O3 | |
| 67.3±0.5 % | 6.4±0.4% | 9.6±0.3% | 4.5±0.3 % | 11.8~16.1% | ≤0.4 | |
Features:
Thermal Protection
Increase Dielectric Strength
Prevent Cross-Fire & Arcing
High Voltage Leak Resistant Silicone
8000 Volts of Extra Insulation
Protects up to 500 degrees F (260 C) of direct, continuous heat.
Protects up to 500 C of radiant heat.
Resistant to hydraulic fluids, fuels, and lubricating oils
Sheds molten metal splash
Extremely flexible and conformable at Temperatures -65°F. thru 500°F.
Application:
Industrial hydraulic hoses and lines, pneumatic lines, fuel & oil lines, brake lines, wires and cables from exposure to high temperature, heat, flame, fire, and pyro exposure

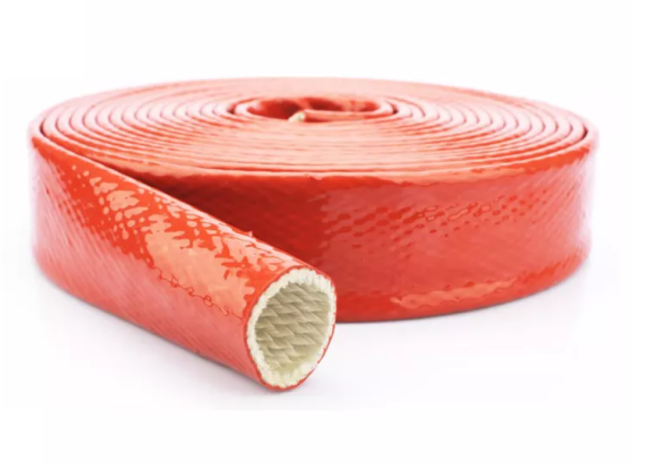

Detail Images
The Other Types Recommended:
| Dia (mm) | Internal Dia (mm) | Length (m) | Thickness(mm) | ||
| Silicone | Glass Yarn | ||||
| 1 | 6 | 6.5 | 20 | 0.6 | 1.0 |
| 2 | 8 | 8.5 | 20 | 0.8 | 1.0 |
| 3 | 10 | 10.5 | 20 | 0.8 | 1.0 |
| 4 | 12 | 12.5 | 20 | 0.8 | 1.2 |
| 5 | 15 | 15.5 | 20 | 0.9 | 1.2 |
| 6 | 20 | 20.5 | 20 | 0.9 | 1.4 |
| 7 | 22 | 22.5 | 20 | 0.9 | 1.4 |
| 8 | 25 | 25.5 | 20 | 1 | 1.6 |
| 9 | 30 | 30.5 | 20 | 1.1 | 1.8 |
| 10 | 32 | 32.5 | 20 | 1.2 | 1.8 |
| 11 | 35 | 35.5 | 20 | 1.1 | 2 |
| 12 | 40 | 40.5 | 20 | 1.2 | 2.1 |
| 13 | 45 | 45.5 | 20 | 1.2 | 2.2 |
| 14 | 50 | 51 | 20 | 1.2 | 2.3 |
| 15 | 55 | 56 | 20 | 1.3 | 2.4 |
| 16 | 60 | 61 | 20 | 1.3 | 2.5 |
| 17 | 65 | 66 | 20 | 1.3 | 2.6 |
| 18 | 70 | 71 | 20 | 1.4 | 2.7 |
