White Fiberglass Filter Cloth

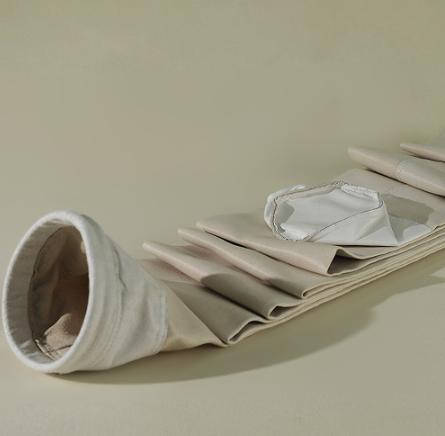

White Fiberglass Filter Fabric For Dust Collection Bags, Packaging
Product Description:
This fiber glass fabric is made from textured alkali-free glass fiber(E-fiberglass) element or medium-alkali glass fiber(C-fiberglass) element. Due to its bulky character, it has high covering capacity and good air permeability, worked together with pulse jet dust Bag Filter Hosing providing higher filtration efficiency, lower filtration resistance and improved dust-separation efficiency up to 99.5%. It is suitable for dust separators with impulse jet or high speed reverse air system.
Features:
High-temperature resistance, glass fiber filter material has a good heat resistance and can be used at high temperatures of 260-280 ℃. This not only saves the cost of flue gas cooling of the dust collector but also reduces the risk of condensation.
Fiberglass fabric does not shrink when the operating temperature is below 280°C, and it has better dimensional stability than organic synthetic fibers.
Application:
- Cement Plants
- iron and steel industry
- nonferrous metal industry
- metallurgical industry,
- chemical industry
The Technique for Style 7577 Fiberglass Filter Fabric Cloth
| Style 7577 | ||
| Item Model | 7577 Filter Fiberglass Cloth | |
| Description | Woven Fiberglass Cloth | |
| Weight | 730±15gsm | |
| Width | 1650±10mm | |
| Thickness | 0.72mm | |
| Yarn Type | Warp | DE75-1/2 150TEX |
| Weft | ET6-285R 153 TEX | |
| Thread Count | Warp | 48±2 ends/In |
| Weft | 38±2 picks/In | |
| Break Strength | Warp | 2200 N/2.5cm |
| Weft | 2200 N/2.5cm | |
| Length | 610m | |
| LOI | < 0.4% | |
| Working Temperature | ≤550℃ | |
How to choose glass fiber filter material cloth?
| Fabric thickness (mm) | 0.3 | 0.4 | 0.5 | 0.7 |
| Fabric Weight | 320 | 390 | 435 | 730 |
| Filtration Airspeed (m/min) | ≤0.4 | ≤0.45 | ≤0.5 | ≤0.7 |
Specifications:
Weight: 350gsm-750gsm
Finishing treatment: Make to order depending on the special condition of the dust collector
Work temp: 260-280ºC
Excellent acids, caustics, solvent, hydrocarbons, and abrasion resistance;
Well Hydrolysis resistance, excellent strength, oxidative resistance
Emission concentration : <50mg/m3
Service life: 1-2years
Why choose us?
First of all, We choose the raw fiberglass yarn from China's top 4 fiberglass manufacturers – China Jushi Co., Ltd. Chongqing Fiberglass, Taishan Fiberglass, and Taiwan glass company.
Secondly, We have enough high-speed looms to meet the output and product quality.
Finally, We specialize in the production of various fiberglass-based fabric products and provide Silicone, and PTFE coating treatment to customers in the United States and Europe
