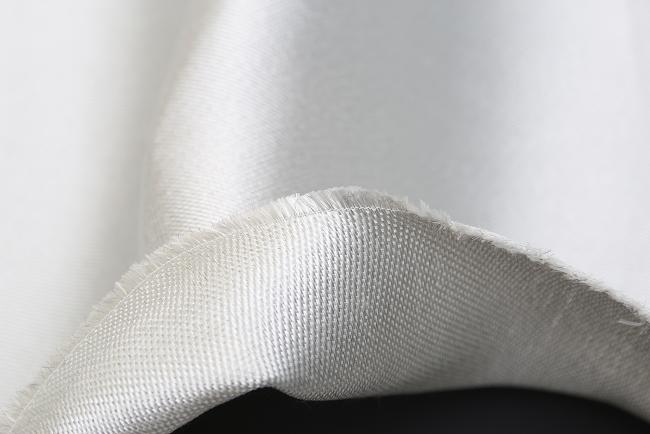

Wire Inserted Fiberglass Fabric Cloth With 304 Stainless Steel Insertion
Wire-Inserted Fiberglass Fabric Cloth With 304 Satinless Steel Insertion
Product Description
We manufacture a variety of fiberglass fabrics with 304 stainless steel inserts. These fabrics provide higher strength when exposed to extreme temperatures compared to regular fiberglass fabrics. These fabrics are available in a variety of coatings, including vermiculite and more. Other alloy steels such as 316 steel wire can also be produced. These welt fabrics are easy to manufacture and make the finished part very durable in extreme temperature environments.
Product Features
In the automotive industry, fiberglass cloth is widely used in the replacement of body parts; particularly in the customized kit markets. Compared to metal press assemblies, the tooling costs of the said fabric are relatively low, making it ideal for businesses in the smaller market sector.
Application
Heat Shields
Welding Blanket
Stress Relieving
Removable Insulation Covers
Fire Curtains
Fire Blankets
Non Metallic Expansion Joints
Flue Ducts and Covers For Fibrous Insulation
Technique Data Sheet for Stainless Steel Wire Fiberglass Cloth
| Items | Technical Requirement |
| Width | 100cm |
| Cloth Thickness | 0.55±0.05 mm |
| Cloth Weight | 650g/m2 |
| Warp Yarn | G75/2 + Stainless Wire |
| Weft Yarn | G75/2 + Stainless Wire |
| Warp and Weft Density | 39*38/in |
| Warp Tensile Strength [25*200mm] | 2237N/2.5cm |
| Weft Tensile Strength [25*200mm] | 2316N/2.5cm |
| Temperature Resistance | 550oC |
More Detail Images
More Related Reinforced Fiberglass Fabric With Steel Wire Fiberglass Cloth
| Type | Material | Weight | Thickness | Temperature Resistance |
| 500 gsm Steel Wire Fiberglass Cloth | fiberglass yarn+316 Stainless Steel | 500gsm | 0.5mm | 550℃ |
| 650 gsm Steel Wire Fiberglass Cloth | fiberglass yarn+316 Stainless Steel | 650gsm | 0.65mm | 550℃ |
| 1000 gsm Steel Wire Fiberglass Cloth | fiberglass yarn+316 Stainless Steel | 1000gsm | 1.0mm | 550℃ |
Packing
Why Choose Us?
With a complete industrial chain, we can totally control the product quality and delivery time.
High quality products
ISO9001 2015 Certification
100% Testing before shipment, All products must pass the factory test
Different Sized of materials can be provided according to customer needs
RFQ
1. How to get free samples?
A: You can contact our sales staff. We can send you some samples for free. But we do not pay for shipping.
2. Are your products certified?
A: Yes, we have a third party fire inspection report
3. How to package your product?
A: We pack the product in a carton or PVC bag. We can also pack according to customers' requirements.
4. Are you a manufacturer?
A: Yes, we are a Chinese manufacturer. We have advanced looms to provide basic cloth
