18oz High Temperature Fiberglass Cloth
High Silica Cloth 18oz Welding Blanket Roll High-Temperature Resistant 1000C Heavy Duty

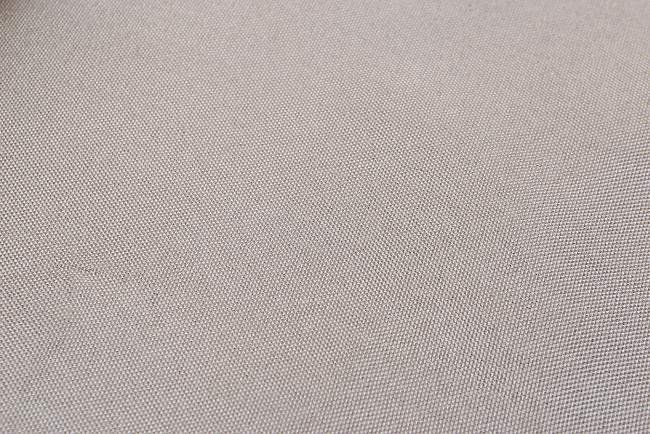

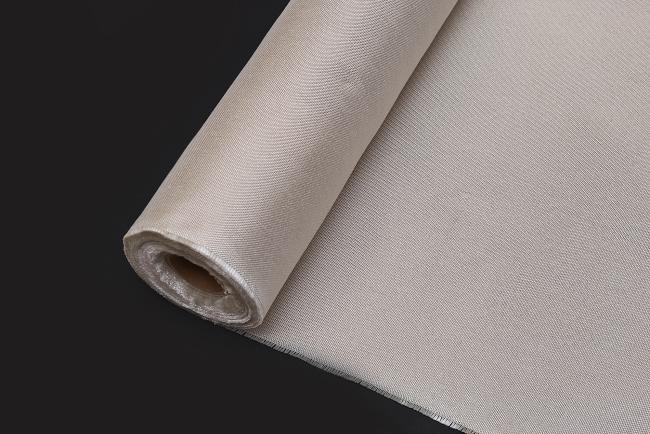

1. Product Introduction
High silica fiberglass high-temperature resistance cloth is a silica wash fabric treated with hydrochloric acid. 1000℃ high-temperature resistance is higher than most kinds of fiberglass fabric. It doesn't have significant deterioration in strength tensile. It was designed for the manufacturer of welding protection, gaskets, flexible expansion joints, removable jackets, and other types of applications for continuous high-temperature needs.
2. Technique Data Sheets
|
Item |
Technical Requirement |
Test Result |
|
Width(mm) |
1000±10 |
1002 |
|
Weave Style |
8HS Satin |
8HS Satin |
|
Warp Counts (ends/cm) |
≥18 |
19 |
|
Fill Count |
≥13 |
14 |
|
Warp Breaking Strength (N/Inch) |
≥ 800 |
965 |
|
Weft Breaking Strength (N/Inch) |
≥ 500 |
643 |
|
Weight (g/m2) |
600± 30 |
616.67 |
|
Length (m) |
50.0 |
50.0 |
|
Thickness |
0.7 ± 0.1 |
0.724 |
|
Silica Content % |
≥ 96 |
97.8 |
|
Linear Shrinkage% |
5-10 |
5.2 |
|
Working Temperature |
1200 ℃ |
1200 ℃ |
|
Coating Pu |
0.8-1% |
0.86% |
3. Advantages
1. Super high fire-resistant fiberglass cloth roll.
2. Good tensile strength.
3. Extreme high temperature up to 1000℃.
4. Properties
Good performance in a high-temperature environment can be used as a fire curtain, welding blanket, removable heat insulation kit, or mat.
Good performance in a high-temperature environment can be used as a fire curtain, welding blanket, removable heat insulation kit, or mat.
5. Much More Related Products
| Product Name | Widths | Working Temperature | Weight g/m2 | SiO2 CONTENT |
| High Silica Cloth | 92 -100cm | 1000oC | 300 | >96% |
| High Silica Cloth | 92 -100cm | 1000oC | 450 | >96% |
| High Silica Cloth | 92 -100cm | 1000oC | 612 | >96% |
| High Silica Cloth | 92 -100cm | 1000oC | 880 | >96% |
| High Silica Cloth | 92 -100cm | 1000oC | 1100 | >96% |
| Medium Silica Cloth | 92 -100cm | 750oC | 600 | >70% |
| Medium Silica Cloth | 92 -100cm | 750oC | 700 | >70% |
| Medium Silica Cloth | 92 -100cm | 750oC | 1100 | >70% |
| Medium Silica Cloth | 92 -100cm | 750oC | 1200 | >70% |

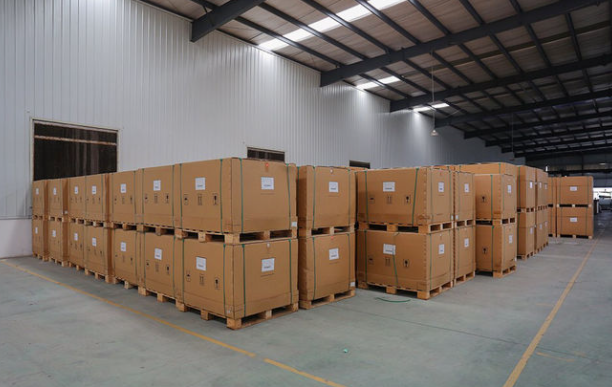

6. Storage and Packing
7. Why Choose Us?
Your inquiry will be replied to within 24 hours
Well-trained and experienced staff to answer all your inquiries.
All our products have 1-year warranties.
Competitive prices based on the same quality.
Guarantee sample quality same as mass production quality.
8. RFQ
1. How to get free samples?
A: You can contact our sales staff. We can send you some samples for free. But we do not pay for shipping.
2. Are your products certified?
A: Yes, we have a third-party fire inspection report
3. How to package your product?
A: We pack the product in a carton or PVC bag. We can also pack according to customers' requirements.
4. Are you a manufacturer?
A: Yes, we are a Chinese manufacturer. We have advanced looms to provide basic cloth
