Heat Resistant Thermal Insulation Fabric
Fireproof Silicone Coated Fabric For Heat Resistant And Thermal Insulation
Product Description
Silicone coated fabrics are fiberglass fabrics woven using plain, twill or satin weave and then coated with a specially formulated silicone rubber on one or both sides. It has various properties such as heat resistance, fire resistance, water resistance, electrical insulation, chemical resistance, abrasion resistance, UV resistance or weather resistance. Available in a variety of colors such as silver, gray, red, white, yellow, black or others. Silicone fabrics are commonly used in fire protection, thermal insulation and high temperature applications.
Product Features
Fiberglass fabrics are widely used for thermal insulation, acoustic insulation, and for protection from heat and fire. These woven high temperature fabrics support operating temperatures up to 1000°F / 540°C and peak temperatures up to 1300°F / 700°C.
Application
1. Removable insulation jackets, blankets, mattress and pad.
2. Fire doors, fire curtains, welding & fire blankets.
3. Thermal insulation barriers, heat shield.
4. Fabric expansion joints, fabric ductwork connector.
5. Curtain for drying, heating or cooling tunnel.
6. Wrapping insulation for pumps, filters, exchange, pipeline, valves, freeze protection, etc.
7. Electrical insulation.
8. Conveyor belt.
9. Flame proof fabric.

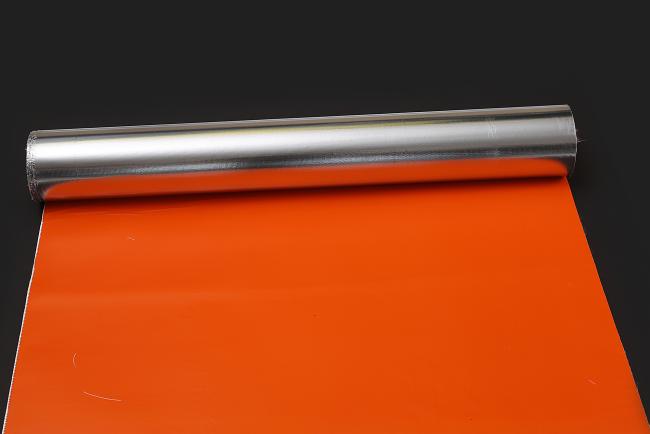

Technique Data Sheet for 3732 with Silicone and Aluminium Coating Fiberglass Cloth
|
Item |
Technical Requirement |
|
Fiberglass Cloth Thickness(mm) |
0.43±0.02 |
| Aluminium Foil Thcikness | 9um |
|
Width(mm) |
1000±10 |
|
Length(m/roll) |
100 |
|
Tensile strength N/5cm
|
3000N/5cm 1400N/5cm |
|
Fiberglass Cloth Weight(g/m2) |
430 |
|
Warp/weft density(thread/cm) |
18x12±1 |
|
Coating Weight(g/m2) |
160±25 |
|
Final Product Weight(g/m2) |
590±30 |
More Detail Images
More Related Reinforced Fiberglass Fabric With Steel Wire Fiberglass Cloth
| Type | Material | Weight | Thickness | Temperature Resistance |
| 500 gsm Steel Wire Fiberglass Cloth | fiberglass yarn+316 Stainless Steel | 500gsm | 0.5mm | 550℃ |
| 650 gsm Steel Wire Fiberglass Cloth | fiberglass yarn+316 Stainless Steel | 650gsm | 0.65mm | 550℃ |
| 1000 gsm Steel Wire Fiberglass Cloth | fiberglass yarn+316 Stainless Steel | 1000gsm | 1.0mm | 550℃ |
Packing
Why Choose Us?
With a complete industrial chain, we can totally control the product quality and delivery time.
High-quality products
ISO9001 2015 Certification
100% Testing before shipment, All products must pass the factory test
Different Sized of materials can be provided according to customer needs
RFQ
1. How to get free samples?
A: You can contact our sales staff. We can send you some samples for free. But we do not pay for shipping.
2. Are your products certified?
A: Yes, we have a third party fire inspection report
3. How to package your product?
A: We pack the product in a carton or PVC bag. We can also pack according to customers' requirements.
4. Are you a manufacturer?
A: Yes, we are a Chinese manufacturer. We have advanced looms to provide basic cloth
