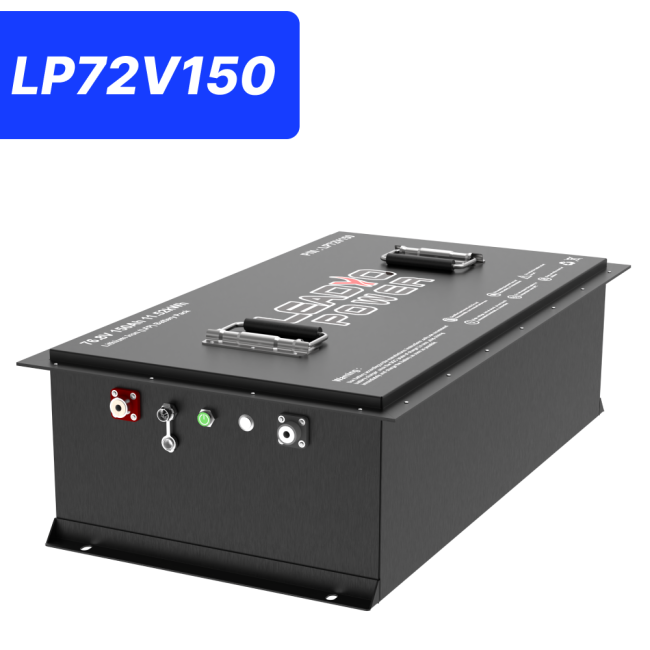

72V 150Ah 76.8V 250Amp Smart LiFePO4 Golf Cart Battery with LCD and Bluetooth
Leadyo 36V lithium golf cart battery and 48V lithium golf cart battery and 72V Lithium golf cart battery are standard replacements for golf carts with lead acid batteries.
Upgrade your golf cart from AGM batteries to LiFePO4 batteries - the perfect drop-in replacement solution!
| ELECTRICAL SPECIFICATIONS | MECHANICAL SPECIFICATIONS | |||
| Nominal Voltage | 72V | Terminal Type | M8 | |
| Nominal Capacity | 150Ah | Weight | 85kg | |
| Nominal Energy | 11520Wh | Case Dimension(L*W*H) | 770*446*217mm | |
| Internal Resistance | ≤30 @50% SOC | Case Type | Stainless Steel Metal case |
|
| Capacity | @30A: 300minutes(5hours) | Cell type / Chemistry | LiFePO4 cells | |
| Self Discharge | 5% /per month | LCD or Bluetooth Function | Optional | |
| Maximum In Series | NO | BMS:low voltage,high voltage,over temperature, | ||
| Maximum In Parallel | Unlimited | Over current,short-circuit protection .etc | ||
| Discharge Current and Voltage Specifications | Charge Current and Voltage Specifications | |||
| MAX Continuous Discharge Current | 250A | Max Charge Current | 100A | |
| Peak Current | 520A /20s | Recommended Charge Current | 20A - 50A | |
| Discharge pulse current | 600±50A (31±10ms) | End of Charge voltage | 87.6V±0.2V | |
| BMS Low Voltge Cut-off | 48V | End of discharge voltage | 48V | |
| Short Circuit Protection | 200-800 µs Auto recover or charge release | Balancing Voltage | 3.6V±0.05v pc | |
| Temperature Ranges | COMPLIANCE SPECIFICATIONS | |||
| Discharge Temperature | -20～+65℃ | Certifications | CE for Battery Pack | |
| Charge Temperature | -20～+45℃ | UL1642 & IEC62133 for cells | ||
| Storage Temperature Range | -20～+45℃ | |||
| Battery High Temperature Protection | 90℃ | Shipping classification | UN 3480 | |
We provide whole sit for optional from battery pack (including BLE and LCD display) + charger + 12v reducer and mounting brackets
FAQ
1. Are you factory or trade company?
As a reputable and innovative battery manufacturer in China, we take pride in being a high-tech enterprise focused on research and development, as well as marketing of lithium rechargeable battery products. Our extensive range of lithium battery products finds applications in various industries, including:Marine, RV, and Camping,AGV and Golf Carts,Electric Motorcycles,Solar Energy Storage Systems,Electric Vehicles,UPS Backup,Telecom Towers,Medical Equipment.etc
2.What is your main product?
•Deep cycle LiFePo4/NMC batteries, 12V-96V LiFepo4 3-400A optional;
•Start-stop LiFepo4 12V 200CCA-1600CCA
•NMC/LFP/LTO cells
3.When you delivery order and MOQ?
Normally 7-15 days for samples order , it can be negotiated based on exact order quantity and schedule.
NO MOQ .
4.Do you accept OEM?
Yes sure, can customized your brand battery
5.May i get more golf cart lifepo4 battery?
Yes,please contact us.
