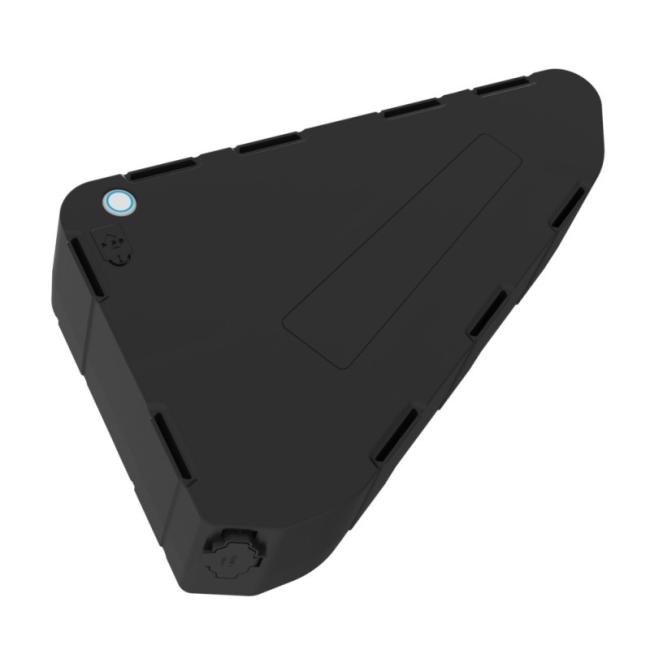

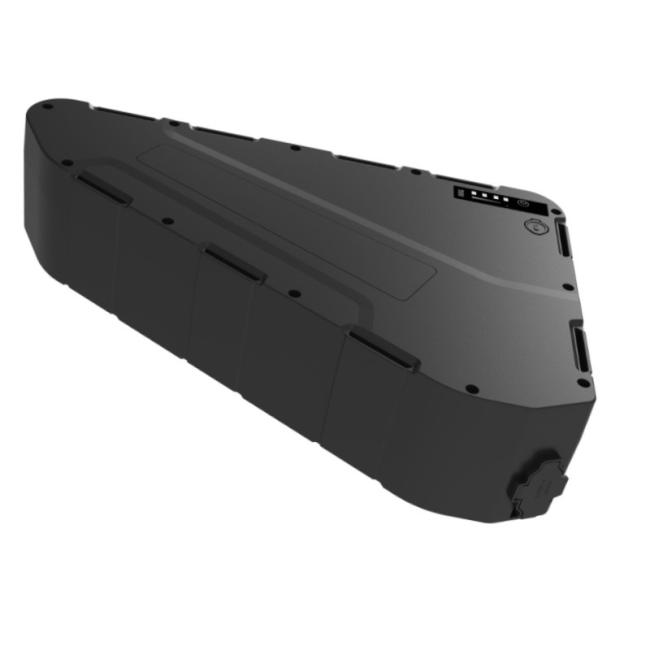

Triangle Ebike Electric Bicycle 48V 30Ah 80A Waterproof Lithium ion Battery
Ebike Electric Bicycle 48V 30Ah Waterproof Triangle Lithium ion Battery + Battery Indicator + 5V USB Charge Port + 80A BMS
XT 90 discharging connector
48V 30A BMS can fit Motor Power: 48V/350W, 48V/500W, 48V/750W, 48V/1000W Bafang or Tongsheng Motors or other motors
48V 40A BMS can fit Motor Power: 48V/350W, 48V/500W, 48V/750W, 48V/1000W, 48V/1500W motors
48V 50A BMS can fit Motor Power: 48V/1000W, 48V/1500W, 48V/2000W motors
48V 70A BMS can fit Motor Power: 48V/1000W, 48V/1500W, 48V/2000W,48V/2500W motors
48V 80A BMS can fit Motor Power: 48V/1500W, 48V/2000W,48V/2500W,48V/3000W, 48V/3500W motors
Product Description:
1) With USB port can charge cell phone and bluetooth speaker
2) New shark style case battery with on/off button, help you save more power
3) Convenient charge port support 5A faster charge
4) Lighted battery LED power Indicator, inform you battery power in anytime
Product Specifications
| Item | Specifications | Remark |
| Model No. | 48V 30AH triangle | 21700 cells |
| Nominal Voltage | 48V | |
| Nominal Capacity | 30Ah | 25Ah customized |
| Dimensions | ||
| Weight | 7.5kg | |
| Cycle Life | ≥1000 times | 80% DOD |
| Charge Voltage | 54.6V | |
| Discharge Cut-off Voltage | 32.5V | |
| Max Charge Current | 5A | |
| Max Continuous Discharge Current | 70A | |
| Operating Temperature | Charge: 0℃ ~ 45℃ | |
| Discharge: -20℃ ~ 60℃ | ||
| Storage Temperature | -10℃ ~ 40℃ | |
| Discharge Port | XT90 | |
| BMS Function | Over-charge protection, over-discharge protection, over-current protection, over temperature, balancing, etc. | |
| IP Class | IP65 | |
| Case Material | ABS |
We can provide lithium e-bike batteries with voltages of 24V, 36V, 48V, and 52V, using 18650 and 21700 cells from both branded and Chinese brands. Welcome to contact us to customize your lithium ion e-bike battery pack.
leadyo@leadyo-battery.com or WhatsApp /wechat : 86 139 2659 5297
