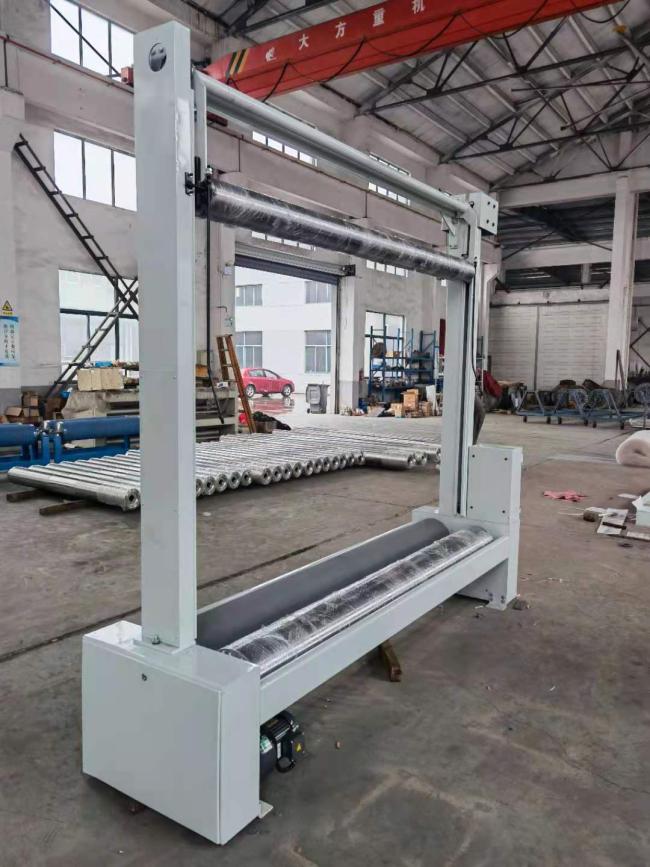

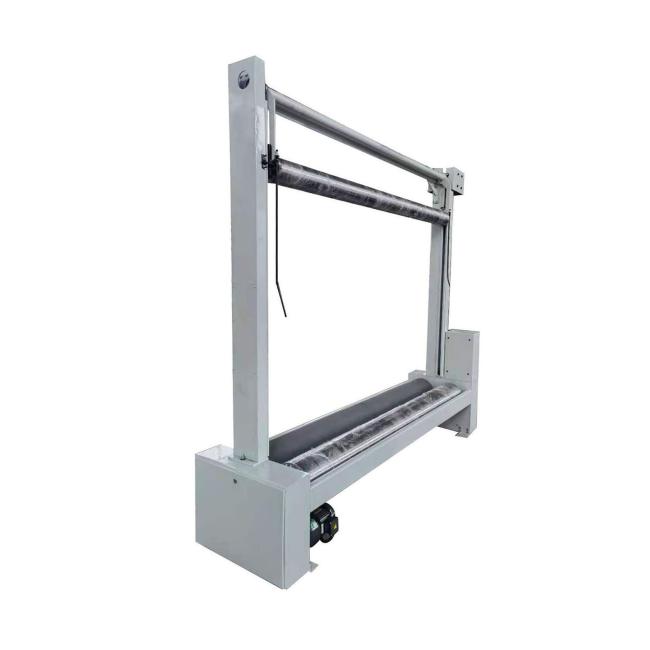

Cloth Roll Winder For Electric Press Roller Lifting
Price:
$3,200.00/Pieces 5-29 Pieces
MOQ:
5 Pieces
Delivery Time:
Negotiable
Brand:
Xianchuang
Product Description
High Quality Cloth Roll Winder For Electric Press Roller Lifting
Main Technical Features
Technical Specifications
* Speed:Synchronized with Weaving Machines
* Fabric Width:1.2-4.5meters
* Max winding diameter:1500mm (standard:1200mm)
* Edge-alignment Error:≤5mm
* Dimension(L*W*H):As per customer's fabric width
* Electric Specs:3Phase-380V; 50HZ(can be adjusted to suit for difffferent countries.)
* Frequency converter control electrical mode
* Automatic winding, stop, manual reversal and other operation functions
* Speed:Synchronized with Weaving Machines
* Fabric Width:1.2-4.5meters
* Max winding diameter:1500mm (standard:1200mm)
* Edge-alignment Error:≤5mm
* Dimension(L*W*H):As per customer's fabric width
* Electric Specs:3Phase-380V; 50HZ(can be adjusted to suit for difffferent countries.)
* Frequency converter control electrical mode
* Automatic winding, stop, manual reversal and other operation functions
machine structure
* The diameter of the two winding rollers is Φ217mm, one roller is covered with anti-skid rubber, the other roller is galvanized or sprayed with plastic.
* Non-slip foot pedal * Option - Inspection tablewith LED * Option - Man-machine interface operation mode * Option - Accurate length measuring giving accuracy of ± 0.01% * Option - Semi-automatic doffing device(pneumatic roll ejection device)
* The diameter of the two winding rollers is Φ217mm, one roller is covered with anti-skid rubber, the other roller is galvanized or sprayed with plastic.
* Non-slip foot pedal * Option - Inspection tablewith LED * Option - Man-machine interface operation mode * Option - Accurate length measuring giving accuracy of ± 0.01% * Option - Semi-automatic doffing device(pneumatic roll ejection device)
* Option - Manual doffing device(Manual roll ejection device) * Option - Automatic fabric selvedge shifter for thick selvedge.
* Option - Electric press roller lifting device designed for tighter cloth coiling
* Option - Electric press roller lifting device designed for tighter cloth coiling
|
Cloth Roll Winder For Electric Press Roller Lifting
|
|
|
|
Place of Origin
|
Jiangsu, China
|
|
|
Brand Name
|
Xianchuang
|
|
|
Warranty
|
The core components are guaranteed for 1 year
|
|
|
Applicable Industries
|
Weaving Factory, Textile Factory
|
|
|
Usage
|
Weaving Loom Machine
|
|
|
Power
|
0.25kw,50 Hz
|
|
|
Voltage
|
According to actual condition
|
|
|
Max winding diameter
|
1500mm (standard:1200mm)
|
|
|
Speed
|
Synchronized with Weaving Machines
|
|
|
Item
|
Fabric Roll Winder
|
|
