High Quality Easy Operate Hydraulic Manual Warp Beam Lifting Trolley
Price:
$2,000.00 - $3,000.00/Pieces
MOQ:
5pcs
Delivery Time:
4-7 weeks
Brand:
Xianchuang
Product Description

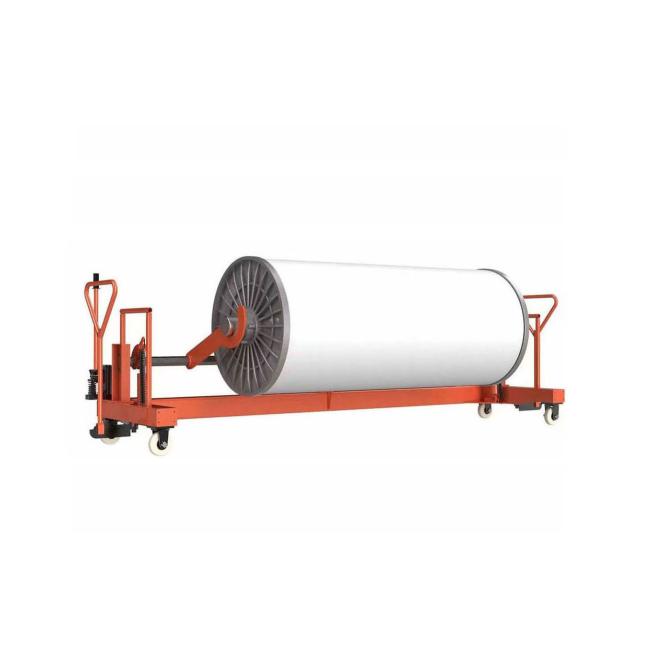

Hydraulic Manual Warp Beam Lifting Trolley
|
Name
|
Textile Hydraulic Lift Trolley
|
|
Place of Origin
|
Jiangsu, China
|
|
Brand Name
|
Xianchuang
|
|
Usage
|
Warp Beam Transport and Lift
|
|
Material
|
High-duty Steel Structure
|
|
Wheel
|
Four-wheel
|
|
Carrying Capacity
|
1000-1500kgs
|
|
Hydraulic Cylinders
|
Two
|
|
Hydraulic Unit
|
One
|
|
Weight
|
as per order
|
|
Beam flange diameter
|
Φ800-Φ1250mm
|
|
Beam barrel diameter
|
Φ100-Φ400mm
|
1. Mainly production process: according to the design drawings, precision welded and formed in sheet-metal workshop, with high-performance oil pump in accordance with the export quality standards to enhance the hydraulic performance. The surface is teated with anti-rust paint to meet the customer's production demand
2. Useful
* Suitable for Bottom Beam transporting, inserting in weaving Machines; warp beam weighing up to 1500kgs and an additional loading capacity of 200kgs for the heald frame. * Apply beam barrel Diameter Φ150 -Φ400mm, beam width 1500-3900 mm, Aluminum Flange Diameter Φ800 - Φ1250 mm.
3. Features
* Four wheel synchronization, any Angle to turn and walk
* Hydraulic vertical lifting of the heald frame, fast speed, high efficiency
* Double cylinder synchronous lifting, balanced and stable, beamwith heald frame on the machine at the same
time
* Lower bracket hook horizontal sliding adjustment of the upper shaft spacing
2. Useful
* Suitable for Bottom Beam transporting, inserting in weaving Machines; warp beam weighing up to 1500kgs and an additional loading capacity of 200kgs for the heald frame. * Apply beam barrel Diameter Φ150 -Φ400mm, beam width 1500-3900 mm, Aluminum Flange Diameter Φ800 - Φ1250 mm.
3. Features
* Four wheel synchronization, any Angle to turn and walk
* Hydraulic vertical lifting of the heald frame, fast speed, high efficiency
* Double cylinder synchronous lifting, balanced and stable, beamwith heald frame on the machine at the same
time
* Lower bracket hook horizontal sliding adjustment of the upper shaft spacing
