Industrial 35T Heavy Duty Transfer Trolley Battery Operated Self Propelled

Price Negotiable
Price: Negotiable
MOQ: 1 set
Delivery Time: 50 days
Brand: Remarkable
Product Description

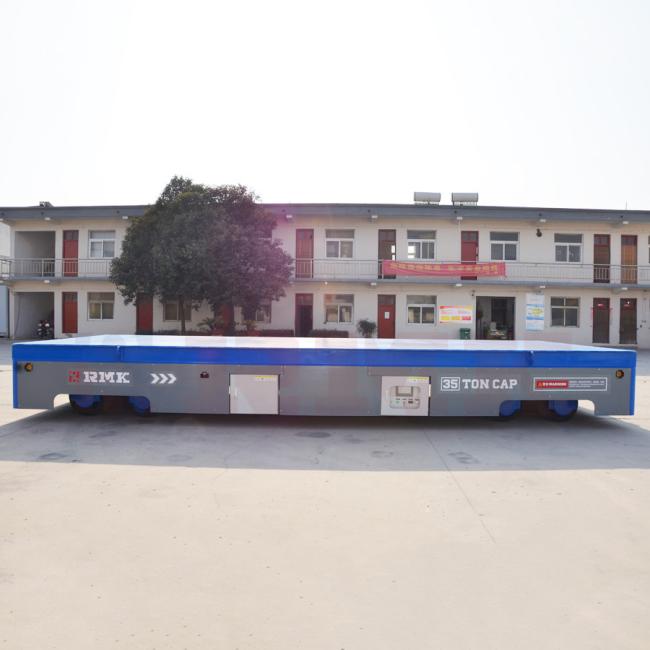

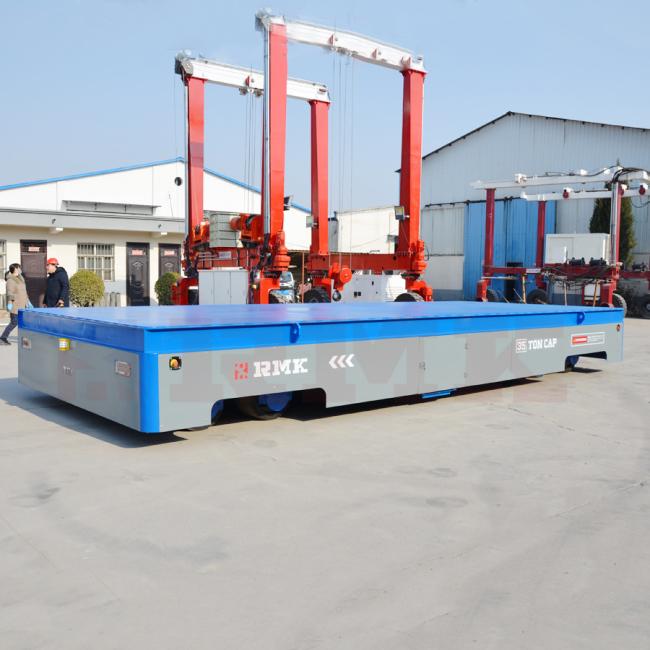

Industrial 35T Heavy Duty Transfer Trolley Battery Operated Self Propelled



35 Tons Injection Molding Tool Transfer Carts Is Designed For Die And Mold Handling, It Is An Electric Transport Cart Which Can Be Powered By A Battery, Low Voltage Rail, Cable Drum, Towed Cable. There Are Two Types Of Electric Transfer Carts, Rail Guided And Freely Movable. Whether You Opt For A Rail-Guided Or A Freely Trackless Movable Solution, All Can Be Met With A Customized Solution.



Depending On The Size Of The Die And Mold, You Can Choose The Size And Load Capacity As Your Demands.

As A Cross-Over Vehicle In The Factory Area And Workshop, Can Not Only Walk Straight Or Turn But Also Greatly Enhances The Convenience Of Transportation Across Regions. The Technical Difficulty Of The Material Transfer Trolley Is The Wheel Pressure Problem Of The Hydraulic Steering Structure And The Polyurethane Rubberized Wheel.

As The Car Is Used In Construction Sites To Transport Prefabricated Slabs And Other Prefabricated Components, Considering The Use Environment, We Have Designed Industrial Press Fit Solid Tire For Customers. The Platform Of The Car Is Relatively Large, Which Is Convenient For Customers To Use. Our Technology Department Adopts Hydraulic Steering To Shorten The Turning Radius, Which Is Convenient For Customers To Transfer Goods On Site.





Advantages Of The Injection Molding Tool Carts :

Safety And Flexibility;

High Efficiency And Stable Start;

Long Lifetime And Durable, At Least 20 Years Of A Lifetime;

Simple Structure;

Using Frequency;

Easy Maintenance And Operation

Environmental Protection



Technical parameters for trackless electric transfer carts
rated load(t) 5 10 15 20 30 40 50
impacted rated load(t) 7.5 15 22.5 30 45 60 75
structure of frame steel plates welded, beam structure
max. wheel load(t) 2.8 4.3 4.8 5.6 7.7 10 12
ground requirement cement floor steel plate ground
table size(mm) 3000×2000 3600×2000 4000×2200 4500×2200 5000×2200 5500×2300 6000×2300
height of the whole cart(mm) 450 530 600 600 650 700 700
ground clearance(mm) 50
wheels base(mm) 1500 1700 1800
axles distance(mm) 2500 3100 3400 3900 4300 4800 5200
turning radius(mm) 2501 3101 3401 3901 4301 4801 5201
turning type turning while driving with no stop
control method for turning control button
turning structure mechanical
motor power(Kw) 3.5 5 6 7 10 12 15
wheel diameter(mm) 300 x 4 350 x 4 400 x 4 400 x 6 500 x 6
wheel material ZG55+hydropur ture
running speed(m/min) 0-20
brake principle electric magnetic brake
operation method with wire or no wire
battery maintenance free of maintenance
charger's installation installed on cart split-type
radar control 3-0.3m, automatic stop for obstacles
warning equipment sound and light
other functions turning light, night light and power display
