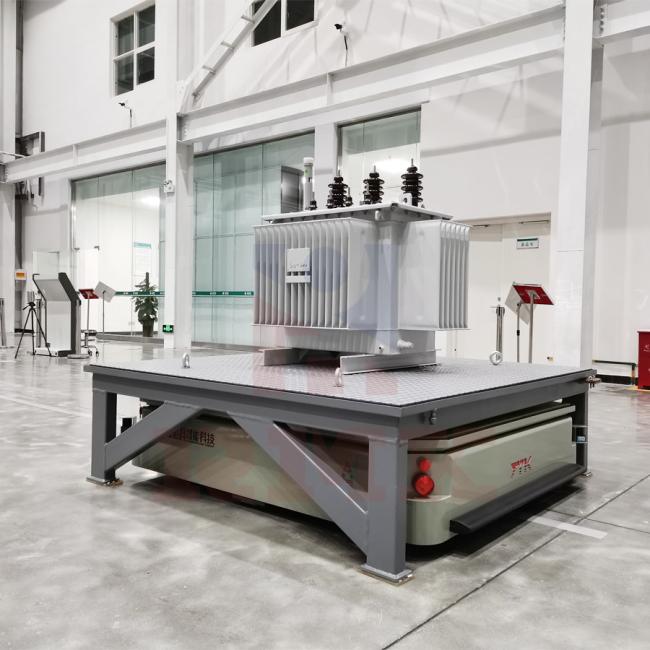

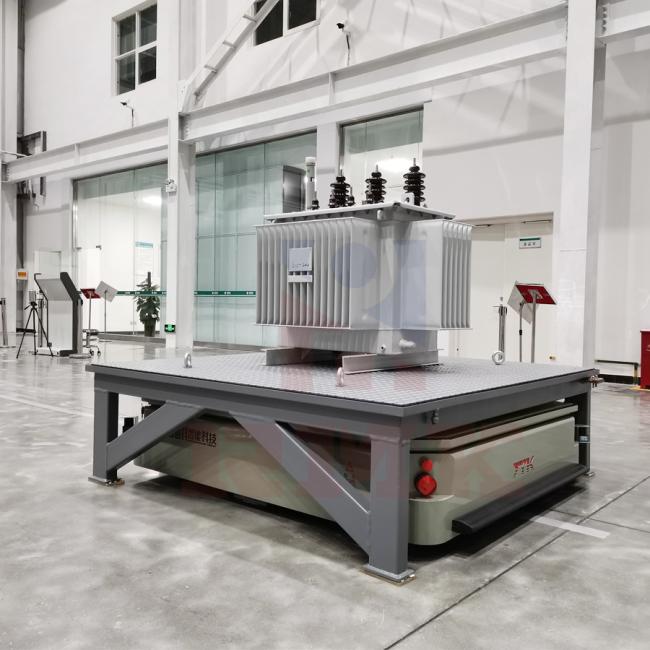

Industrial Raw Material Trackless Transfer Trolley 3 Tons Hydraulic Table Lift Wheels Base 1500mm
Industrial Raw Material Trackless Transfer Trolley 3 Tons Hydraulic Table Lift Wheels Base 1500mm
The Hydraulic Electric Trackless Flat Car Is A Hydraulic Rail Electric Flat Carriage That Can Automatically Unload. The Hydraulic Electric Flat Trolley's Hydraulic System Is Installed On The Platform, Which Can Realize The Function Of Automatically Unloading The Goods, Greatly Reducing The Unloading Time And Improving Production Efficiency. We Can Customize Electric Flat Cars With Different Specifications And Different Functions According To Customer Requirements. For Example, Requirements Such As Height Of Lift, Speed Of Travel, And Positioning Parameters. The Above Is A Brief Introduction To The Hydraulic Rail Electric Flat Car. Hope It Will Help You.
| Technical parameters for electric transfer carts | |||||||||
| 1 | rated load(t) | 5 | 10 | 15 | 20 | 30 | 40 | 50 | 150 |
| 2 | impacted rated load(t) | 7.5 | 15 | 22.5 | 30 | 45 | 60 | 75 | 225 |
| 3 | structure of frame | steel plates welded, beam structure | |||||||
| 4 | max. wheel load(t) | 2.8 | 4.3 | 4.8 | 5.6 | 7.7 | 10 | 12 | 27 |
| 5 | ground requirement | cement floor | steel plate ground | ||||||
| 6 | table size(mm) | 3000×2000 | 3600×2000 | 4000×2200 | 4500×2200 | 5000×2200 | 5500×2300 |
6000× 2300 |
10000× 3000 |
| 7 | height of the whole cart(mm) | 450 | 530 | 600 | 600 | 650 | 700 | 700 | 1200 |
| 8 | ground clearance(mm) | 50 | 75 | ||||||
| 9 | wheels base(mm) | 1500 | 1700 | 1800 | 2000 | ||||
| 10 | axles distance(mm) | 2500 | 3100 | 3400 | 3900 | 4300 | 4800 | 5200 | 10000 |
| 11 | turning radius(mm) | 2501 | 3101 | 3401 | 3901 | 4301 | 4801 | 5201 | 10001 |
| 12 | turning type | turning while driving with no stop | |||||||
| 13 | control method for turning | control button | |||||||
| 14 | turning structure | mechanical | |||||||
| 15 | motor power(Kw) | 3.5 | 5 | 6 | 7 | 10 | 12 | 15 | 15 |
| 16 | wheel diameter(mm) | Ф300 x 4 | Ф350 x 4 | Ф400 x 4 | Ф400 x 6 | Ф500 x 6 | Ф600 x 8 | ||
| 21 | battery model | D-250 x 24 | D-33 x 24 | D-400 x 24 | D-440 x 24 | D-250 x 36 | D-330 x 36 | D-440 x 36 | D-600 x 36 |
| 22 | battery maintenance | free of maintenance | |||||||
| 23 | charger's installation | installed on cart | split-type | ||||||
| 24 | charger function | automatic charging | |||||||
| 25 | radar control | 3-0.3m, automatic stop for obstacles | |||||||
| 26 | warning equipment | sound and light | |||||||
| 27 | other functions | turning light, night light and power display | |||||||
The Electric Hydraulic Lifting Platform Car Is Also Called Hydraulic Lifting Electric Flat Cart, Which Is Suitable For Multiple People To Work At The Same Time, Making The Aerial Work More Efficient And Safer. It Can Operate Freely Without External Power From External Power Sources And Is Not Limited By The Number Of Lifting Times. Easy To Operate And Lift Freely. The Height Of The Hydraulic Lifting Motorized Transfer Car Can Be Designed According To The Size Provided By The Customer. The Platform Of The Flatbed Truck Needs To Be Automatically Rotated To Facilitate The Docking Of The Pouring Spout. Since The Workpieces To Be Transported Are Molten Steel, Refractory Materials Need To Be Laid On The Platform For High Temperature Protection.
The Product Has Been Put Into Use, And Customers Have Reported That The Work Efficiency Has Been Greatly Improved And The Use Is Particularly Convenient.
Our Company Specializes In Rail Flat Cars, Trackless Flat Cars, Hydraulic Lifting Motorized Transfer Carriage, Rollover Electric Flat Cars, Explosion-Proof, High Temperature Resistance, PLC Automation, Assembly Line Electric Rail Flat Cars, Etc.
