Steel Industry Electric Transfer Trolley , 5 Tons Warehouse Transfer Cart

Price Negotiable

Price: Negotiable

MOQ: 1 set

Delivery Time: 30-45 work days

Brand: Remarkable

Product Description

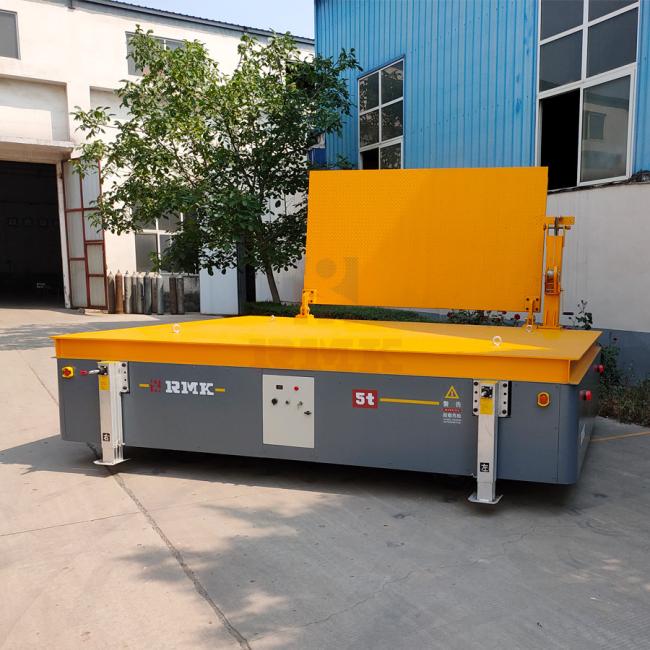

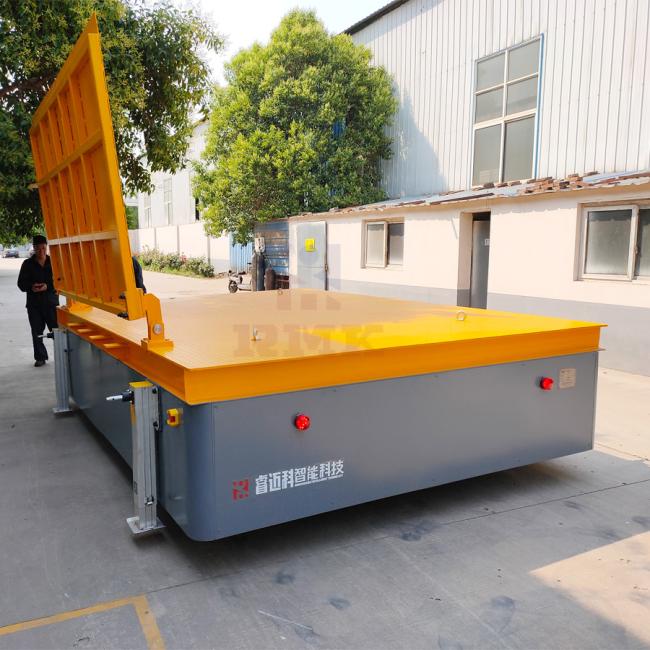

Steel Industry Electric Transfer Trolley , 5 Tons Warehouse Transfer Cart

^{The Running Route Of The 5 Tons Electric Material Transfer Trolley Is Not Fixed, It Can Be Turned 360° Freely And Is Flexible And Stable. It Can Be Transported Between Any Workshops When The Ground Is Flat And There Is No Large Slope. And The Platform Has Strong Weight And High Safety. The Places Of Use Are: Production And Processing Workshops, Metallurgical Casting, Mold Handling, Steel Structures, Prefabricated Parts, Etc.. You Can Choose The Appropriate Handling Method According To The Transportation Distance, Working Environment, Etc..}

Technical parameters for electric transfer carts
1	rated load(t)	5	10	15	20	30	40	50	150
2	impacted rated load(t)	7.5	15	22.5	30	45	60	75	225
3	structure of frame	steel plates welded, beam structure
4	max. wheel load(t)	2.8	4.3	4.8	5.6	7.7	10	12	27
5	ground requirement	cement floor					steel plate ground
5	ground requirement	cement floor					steel plate ground
6	table size(mm)	3000×2000	3600×2000	4000×2200	4500×2200	5000×2200	5500×2300	6000× 2300	10000× 3000
7	height of the whole cart(mm)	450	530	600	600	650	700	700	1200
8	ground clearance(mm)	50							75
9	wheels base(mm)	1500		1700			1800		2000
10	axles distance(mm)	2500	3100	3400	3900	4300	4800	5200	10000
11	turning radius(mm)	2501	3101	3401	3901	4301	4801	5201	10001
12	turning type	turning while driving with no stop
13	control method for turning	control button
14	turning structure	mechanical
15	motor power(Kw)	3.5	5	6	7	10	12	15	15
16	wheel diameter(mm)	Ф300 x 4	Ф350 x 4		Ф400 x 4	Ф400 x 6	Ф500 x 6		Ф600 x 8
21	battery model	D-250 x 24	D-33 x 24	D-400 x 24	D-440 x 24	D-250 x 36	D-330 x 36	D-440 x 36	D-600 x 36
22	battery maintenance	free of maintenance
23	charger's installation	installed on cart				split-type
24	charger function	automatic charging
25	radar control	3-0.3m, automatic stop for obstacles
26	warning equipment	sound and light
27	other functions	turning light, night light and power display

^{The transfer cart is battery powered, they represent the best solution for all those appliances with delicate handling problems in limited places. (360 degree turning flexibly)}
^{The trackless transfer cart is very flexible since it can move freely around the plant as indoor as outdoor.}
^{It is equipped with non-marking wheels to avoid any mark on floor. (Imported PU wheel or customized)}
^{Easy operation make transfer cart perfect to meet the most important requirements: where space is very limited and paths are strictly constrained.}
