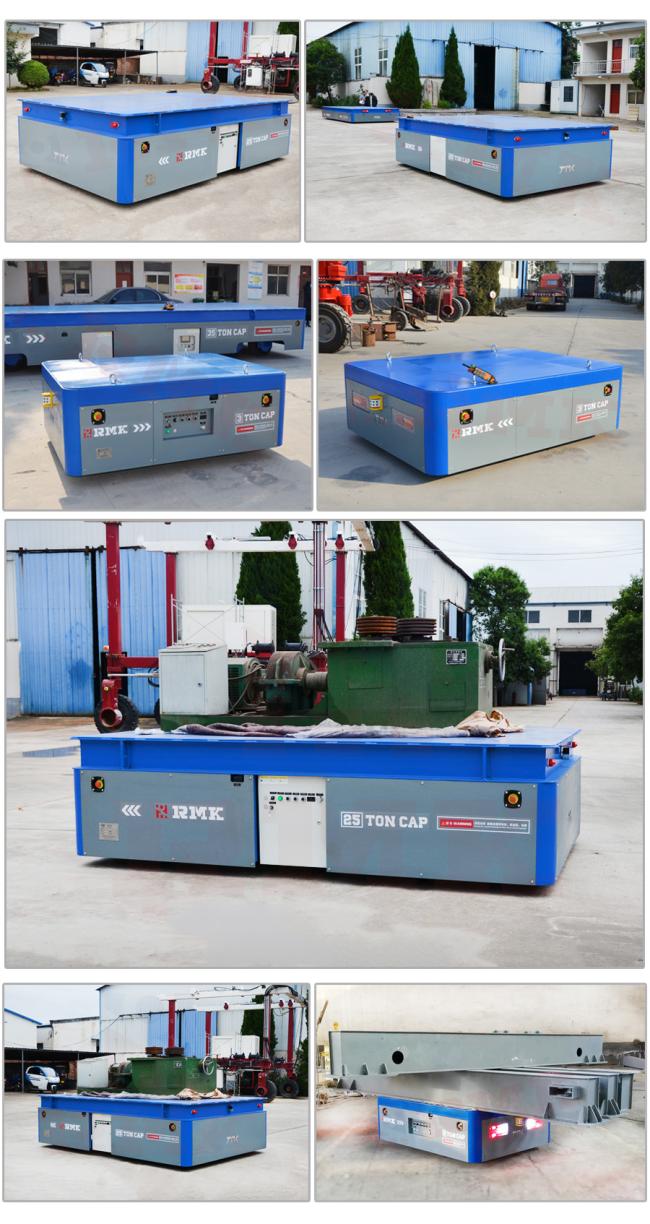

Motorized 30 Tons Heavy Load Explosion Proof Electric Transfer Carts On Rails

Price Negotiable

Price: Negotiable

MOQ: 1 set

Delivery Time: 45 days

Brand: Remarkable

Product Description

^{Motorized 30 Tons Heavy Load Explosion Proof Electric Transfer Carts On Rails}

^{The 30 Tons Heavy Load Explosion Proof Electric Transfer Carts On Rails Is Fully Automated. It Can Automatically Detect Whether The Destination Is Full Of Goods. If The Destination Is Empty, It Can Realize Automatic Unloading. If The Goods Have Been Placed At The Destination, He Will Unload At The Next Destination.}

^{Advantages Of Electric Transfer Cars:}

^{Anti-Explosion, Anti-High Temperature;}
^{Powered By Rail;}
^{With Lifting Holes, Convenient To Shipment;}
^{Stable Start, Big Starting Power, Long Lifetime;}
^{Simple Structure, Low Cost ;}
^{Running Distance Is Limited;}
^{Safe And Convenient Operation ;}
^{High Using Frequency ;}
^{Unlimited Load Capacity}

Technical parameters for Low-voltage track powered electric transfer carts KPD series
Model		KPD-6t	KPD-10t	KPD-16t	KPD-25t	KPD-40t	KPD-63t	KPD-100t	KPD-160t	KPD-200t
Rated load (t)		6	10	16	25	40	63	100	160	200
Countertop size (mm)	Length	3600	3600	4000	4500	5000	5600	6300	8000	8200
	Width	2000	2000	2200	2200	2500	2500	2800	2800	3000
	Height	550	550	600	650	700	850	900	1100	1250
Speed(m/min)		30	30	30	30	25	25	20	20	18
Wheel base A(mm)		2000	2200	2200	2500	2800	3200	3600	5000	5000
Track medial distance C(mm)		1435	1435	1435	1435	1435	1435	1650	2000	2000
Wheel diameter(mm)		400	400	400	500	500	600	700	700	700
Bottom clearance(mm)		50	50	50	60	60	60	60	70	70
Minimum turning radius		30		35	50	55	60	80	100	100
Motor model / power (Kw)	KPD (single-phase)	JDYP-11-6		JDYP-12-6		JDYP-21-6	JDYP-22-6
	KPD (single-phase)	2.2		3.5		5	7.5
	KPD (three-phase)	YZ132M1-6		YZ132M2-6		YZ160M1 -6	YZ160M2-6	YZ160L-6	YZ160M2 -6	YZ160L -6
	KPD (three-phase)	2.2		3.7		5.5	7.5	11	2×7.5	2×11
Power mode	KPD	380V reduced to 36V / 360V reduced to 36V then boosted to 380V
Recommended track model		24kg/m			38kg/m	43kg/m		QU80	QU100
Number of wheels		4							8
Maximum wheel Pressure (t)		1.91	3.21	4.87	7.5	11.5	16.9	27.6	22.8	28.5
Reference weight (t)		3.4	3.72	4.2	6	8.5	11.4	15.2	25.5	31.5

^{Note: 1) Other gauges, table sizes and load tonnages can be customized according to user requirements;}

^{2) Imported and domestic industrial wireless remote-control devices are optional;}

^{3) Optional imported wireless two-speed control;}

^{4) Optional matching automatic parking, and alarming when encountering person 2 meters away.}

^{The Kinds Of Heavy Industry Apply Motorized Rail Flat Car Supplier On Curved Rails, Which Is Powered By Conductor Railway, Two Phase, AC 36V Safe Voltage, To Connect The Two Railway Respectively. The Rail Flat Car Is No Limitation Of Cable, It Can Get Power From Railway In Any Time. However, It Is Has Strict Requirement For The Railway, Which Have To Be Insulated. (Its Railway Is Insulated With The Ground, And Its Wheels Are Insulated With The Ground.)}
