Battery Operated 10 Tons Shipyard Electric Material Transfer Trolley

Price Negotiable
Price: Negotiable
MOQ: 1 set
Delivery Time: 30-45 days
Brand: Remarkable
Product Description

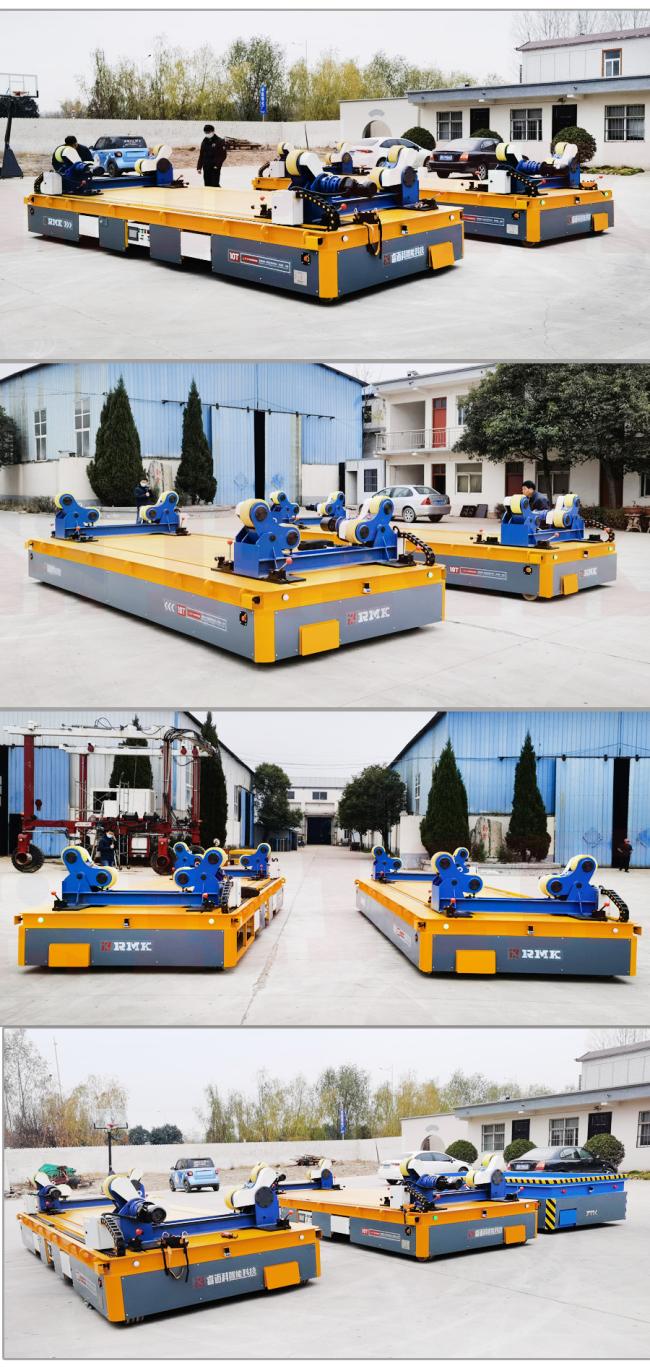

Battery Operated 10 Tons Shipyard Electric Material Transfer Trolley



10 Tons Industrial Transfer Trolley For Carrying Goods Is One Kind Of Transfer Equipment For Steel Coil,Pallet,Mold, Pipe And Other Materials Handling In Workshops That It Can Move Freely From Bay To Bay On The Cement Floor, From Production Line To Warehouse.Its Power Supply Mode Is Maintenance Free Lead Acid Battery, But If The Transfer Cart's Table Size Is Very Small, We Can Install Lithium Battery. The Battery Capacity Can Be Designed According To Customer's Using Time Requirements.



We Conceive And Manufacture A Wide Range Of Railway Guided Transfer Carts, Battery Powered Trolleys, Intelligent Self-Propelled Trolleys, Die Carts, Industrial Flat Trailers, Tilters And Lifting Platforms That Operate In Many Industrial Fields: Metallurgy, Manufacture, Oil And Gas, Die Shops, Shipyards, Chemical Plant, Automotive, Mining Industry, Aerospace, Power Generation, Coal Industry, Paper Mills, Metalworking, Warehouse And Many Others!



The Battery-Driven Platform Vehicle Is More Flexible, Starting, Stopping, Forwarding, And Retreating. , Turning And Other Driving Functions, Without Laying A Predetermined Track Route, Can Walk Freely From Indoor To Outdoor, 360-Degree Rotation And Turning, Small Turning Radius, Turning While Walking, Driving To Any Area Through Wireless Remote Control, Trackless Trucks Are Suitable And Widely Used Material Handling And Transportation In Various Industries.



This 10 Tons Shipyard Electric Material Transfer Trolley Is A Multi Functional Low-Cost And High-Quality Cargo Transfer Flat Car. The Main Performance Of The Industrial Die Carriage Has The Following Points: It Uses Electricity As The Power Supply Method, Which Is Safe And Reliable, Saves Costs, And Has No Pollution.





Technical parameters for trackless electric transfer carts
rated load(t) 5 10 15 20 30 40 50
impacted rated load(t) 7.5 15 22.5 30 45 60 75
structure of frame steel plates welded, beam structure
max. wheel load(t) 2.8 4.3 4.8 5.6 7.7 10 12
ground requirement cement floor steel plate ground
table size(mm) 3000×2000 3600×2000 4000×2200 4500×2200 5000×2200 5500×2300 6000×2300
height of the whole cart(mm) 450 530 600 600 650 700 700
ground clearance(mm) 50
wheels base(mm) 1500 1700 1800
axles distance(mm) 2500 3100 3400 3900 4300 4800 5200
turning radius(mm) 2501 3101 3401 3901 4301 4801 5201
turning type turning while driving with no stop
control method for turning control button
turning structure mechanical
motor power(Kw) 3.5 5 6 7 10 12 15
wheel diameter(mm) 300 x 4 350 x 4 400 x 4 400 x 6 500 x 6
wheel material ZG55+hydropur ture
running speed(m/min) 0-20
brake principle electric magnetic brake
operation method with wire or no wire
battery maintenance free of maintenance
charger's installation installed on cart split-type
radar control 3-0.3m, automatic stop for obstacles
warning equipment sound and light
other functions turning light, night light and power display
