Medical Device Hospital 12 Channel Digital ECG Machine Professional With Print

Price Negotiable

Price: US $380-$468/unit

MOQ: 1 uint

Delivery Time: Within 3 days

Brand: Rainbow

Product Description

Medical Device Hospital Professional ECG Machine 12 Channel Digital ECG Machine With Print

Essential Details

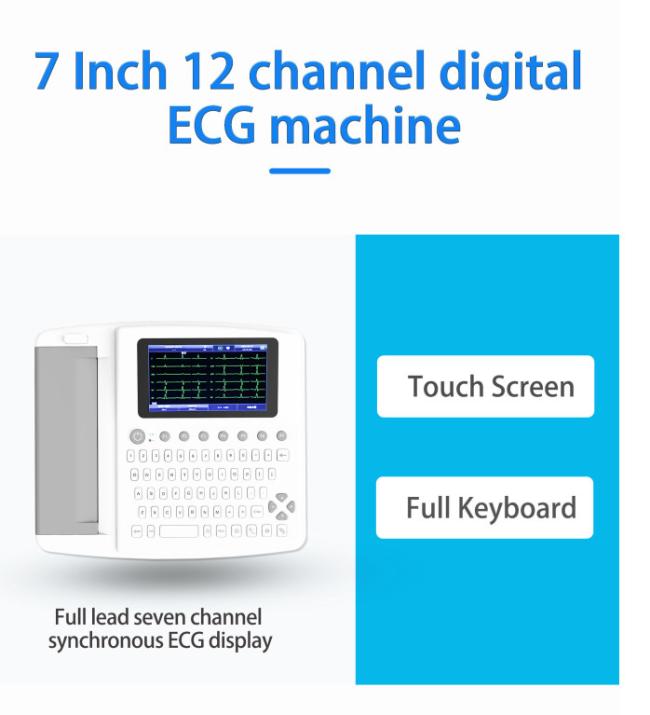

7 inch high resolution color touch screen.Full alphanumeric keyboard with shortcut keys, efficient in operation.
Simultaneous 12 leads ECG acquisitoon and display.
Automatic ECG measurements and interpretation.
Internal storage up to 1000 cases, convenient for case review and statistic.
AC/DC available, with built-in rechargeable lithium high capacity battery.
ECG data can be transmitted to PC via USB. ECG reports can be saved, opened, in PC via ECG playback software.

Standard cofiguration

Specification

item	value
Brand Name	Rainbow
Model Number	ECG-8812
Place of Origin	China
Instrument classification	Class II
Warranty	1 year
After-sale Service	Online technical support
Material	Plastic
Acquisition Mode	Simultaneous 12 leads acquisition
Power Source	Electricity
Channels	Standard 12 leads
Input mode	Floating and defibrillation protection
Operation mode	Manual, Auto, Rhythm, 1 channel 1 minute
Filter	AC Filter: 50 Hz / 60Hz
	EMG Filter: 25 Hz / 35 Hz / 45Hz/75 Hz / 100 Hz / 150Hz
	DFT filter: 0.05Hz/0.5Hz
CMRR	≥100dB (add AC filter)
Input mode	Floating and defibrillation protection
Input Impedance	≥50MΩ (10Hz)
Input circuit current	≤0.05μA
Input dynamic range	±10mVp-p
Patient leak current	＜10μA
Calibration voltage	1mV±2％
Polarizing voltage	≥±300mV
Time constant	≥3.2s
Paper specification	210mm (W)*30m(L)
Recording mode	Thermal printing system
Noise level	＜15μ Vp-p
Memory	1000 cases
Threshold	≤20μV
Wave Gain/Sensitivity	2.5mm/mV,5mm/mV,10mm/mV,20mm/mV(standard sensitivity: 10mm/mV)
Wave/ Paper speed	12.5mm/s,25mm/s,50mm/s(±3％)
AC	100~240V, 50/60Hz,
DC	14.4V, 2500mAh, 36.00Wh, built-in lithium battery
